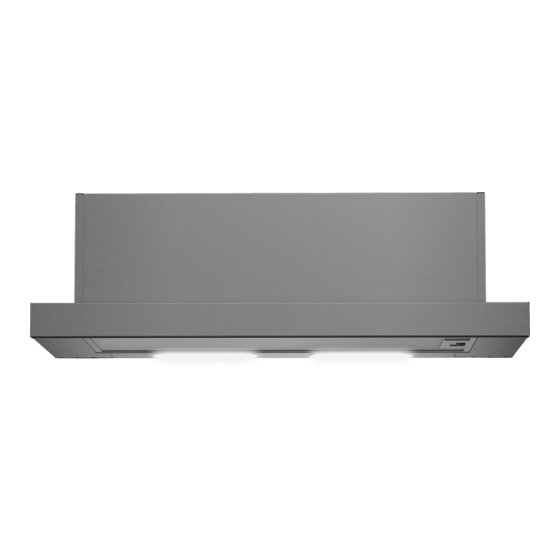

- Page 1 DCH609 COOKERHOOD Cooking Instruction manual...
- Page 2 CONTENTS 1 Important safety and environmental instructions 1.1 General safety ....4 1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:... 7 1.3 Compliance with RoHS Directive .
- Page 3 Please read this user manual first! Dear Valued Customer, Thank you for preferring this Defy appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of- the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use.
- Page 4 Failure to follow improper installation or misuse of these instructions shall void any the product. warranty. Defy products comply with the This appliance can be used by • • applicable safety standards; children aged from 8 years and...
- Page 5 Important safety and environmental instructions The minimum distance between Do not touch the lamps if they • • the supporting surface for the have operated for a long time. cooking vessels on the hob and They can burn your hands since the lowest part of your product they will be hot.
- Page 6 Important safety and environmental instructions Product shall be cleaned ac- In the environment where the • • cordance with user manual. If appliance is being used, the ex- cleaning was not carried out in haust of devices running on fuel accordance with user manual, oil or gas, such as room heater there may be fire risk.
- Page 7 Important safety and environmental instructions Objects placed on the product 1.3 Compliance with RoHS Directive • may fall. Do not place any ob- The product you have purchased complies with EU jects on the product. RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Do not flambe under the your •...
- Page 8 1. Body 2. Front panel 3. Control panel 4. Grease filter 5. Lighting 2.2 Technical data Model DCH609 Supply voltage & Frequency 220-240V ~ 50 Hz Lamp power 2 x 3 W Motor power 125 W Flow rate – 3. Level 253 m³/h...
- Page 9 Operation of the appliance 3.1 Controlling the Appliance • For better performance, we recommend using low speeds under normal conditions and high speeds in cases of strong odours and intense vapour. • You can start your appliance by pressing on the desired speed setting button.
- Page 10 Operation of the appliance 3.6 Operation with chimney connection • Vapour is extracted through the flue duct, which is fastened to the connection head on the hood. • The diameter of the flue duct must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10º) so that the air can exit the room easily.
- Page 11 Cleaing and maintenance 4.2 Replacement of Carbon Filters Before cleaning and maintenance, unplug the product or turn off the Odour removing filters contain charcoal (Active switch. carbon). Aluminium grease filter s must be in- stalled in the product, regardless of whether or not 4.1 Cleaning of grease filter carbon filters are used.
- Page 12 Installation of appliance 5.2 Installation Accessories WARNING: Before starting the in- stallation, read the safety informa- DCH609 COOKERHOOD tion on User Manual. WARNING: Failure to install with screws and stabilizers in accordance Cooking Instruction manual with these instructions may result in electric shock.
- Page 13 Installation of appliance • Paste the installing template provided with the • Attach the plastic exhaust adapter, included in hood on the surface where the hood is to be the installation accessories, to the air discharge mounted. of the extractor hood (Figure 3). •...
- Page 14 Installation of appliance WARNING: Any bendings and flex- ions are in the aluminum pipe will be reduced the capacity of air suction. If possible,should be avoided of them. 5.4 Connecting to flue If you are going to use the Ø 120/150 mm plastic flue adapter, connect one end of the pipe to this adapter, if you are not going to use it, to the direct output on the product.
- Page 15 Troubleshooting Troubleshooting Root cause Help Appliance is not working. Check your fuses. Fuse may be blown, inspect and restore it. Appliance is not working. Check the electrical connection. Mains voltage shall be between 220 and 240 V. Appliance is not working. Check the electrical connection. Check if other appliance in your kitchen operate.
- Page 16 P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O.
- Page 17 Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
- Page 18 Arçelik A.Ş. Karaağaç Caddesi No: 2-6, 34445, Sütlüce, İstanbul, Türkiye www.defy.co.za...
