Summary of Contents for Defy DCH900

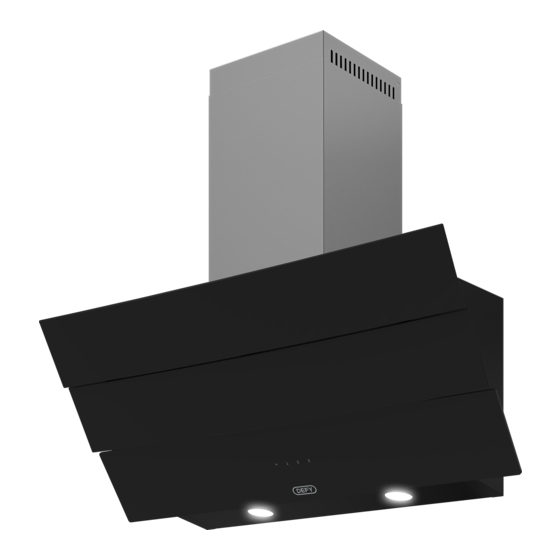

- Page 1 DCH900 COOKERHOOD Cooking Instruction manual...
-
Page 2: Table Of Contents
CONTENTS 1 Important safety and environmental instructions 1.1 General Safety ....4 1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:... 7 1.3 Compliance with RoHS Directive . -
Page 3: Meanings Of The Symbols
Please read this user manual first! Dear Valued Customer, Thank you for preferring this Defy appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of- the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. -
Page 4: Important Safety And Environmental Instructions
The manufacturer cannot be held • to follow these instructions shall liable for damages resulting from void any warranty. improper installation or misuse of Defy products comply with the • the product. applicable safety standards; This appliance can be used by •... - Page 5 Important safety and environmental instructions cooking vessels on the hob and They can burn your hands since the lowest part of your product they will be hot. must be at least 50 cm. Follow the regulations set out by • If the instructions for installation competent authorities on dis- •...
- Page 6 Important safety and environmental instructions there may be fire risk. haust of devices running on fuel oil or gas, such as room heater Do not use non-fire-resistant • must be absolutely isolated or filtering materials instead of the device must be hermetical type. current filter.
-
Page 7: Compliance With The Weee Directive And Disposing Of The Waste Product
Important safety and environmental instructions Do not flambe under the your 1.3 Compliance with RoHS • Directive product. The product you have purchased complies with EU WARNING: Before installing the RoHS Directive (2011/65/EU). It does not contain Hood, remove the protective films. harmful and prohibited materials specified in the Never leave high naked flames Directive. -
Page 8: General Appearance
General appearance 2.1 Overview 1. Inner chimney 2. Outer chimney 3. Glass cover 4. Grease gilter (Behind glass cover) 5. Control panel 6. Lighting 2.2 Technical data Model DCH 900 Supply voltage & Frequency 220-240V ~ 50 Hz Lamp Power 2 x 3 W Motor Power 210 W... -
Page 9: Operation Of The Appliance
Operation of the appliance 3.1 Controlling the Appliance • You can start your appliance by pressing on the desired speed setting button. (B,C,D) • You can illuminate the cooking area by pressing the lamp. (A) 3.4 Automatic stop Your appliance has Automatic Stop feature, ena- FUNCTION bling it to ventilate for a bit more and remove the A : Light On... -
Page 10: Operation With Chimney Connection
Operation of the appliance • Remove the aluminum grease filter. To install the Bulb carbon filter, fit the filter to the tabs by centring it on the plastic piece on both sides of the fan body. tighten it by turning right or left. Bulb Power •... -
Page 11: Cleaing And Maintenance
Cleaing and maintenance 4.2 Replacement of carbon filters Before cleaning and mainte- nance, unplug the product or turn Odour removing filters contain charcoal (Active off the switch. carbon). Grease filters must be installed in the product, regardless of whether or not charcoal 4.1 Cleaning of the grease filter filters are used. -
Page 12: Installation Of Appliance
Installation of appliance 5.2 Installation accessories WARNING: Before starting the in- stallation, read the safety informa- tion on User Manual. WARNING: Failure to install with screws and stabilizers in accordance with these instructions may result in electric shock. For the installation of the hood, please contact the nearest Authorized Service. - Page 13 Installation of appliance • The bolts and dowels provided are suitable for To assemble the hood body, you can use the brick walls. For other construction material (e.g. Ø8mm drill bit to drill points A, B, C, D on the as- drywall, plate, porous concrete), suitable fixing sembly template, and insert 4.8x50mm plastic dowels and nuts shall be used.
-
Page 14: Connecting To Chimney
Installation of appliance to be connected to the air discharge duct small- If you are going to use the Ø 120/150 mm plastic er than 150mm, install the 150 / 120mm plastic Chimney adapter, connect one end of the pipe to Chimney adapter (Figure 4). -
Page 15: Installation Of The Hood To The Chimney
Installation of appliance 5.5 Installation of the hood to the chimney Make the electrical connection of your hood be- fore starting the installation of the Chimney. Slip the Chimney plates around the body. Screw the Chimney to the Chimney fastening plates available on the motor cabin. -
Page 16: Troubleshooting
Troubleshooting Troubleshooting Root cause Help Appliance is not working. Check your fuses. Fuse may be blown, inspect and restore it. Appliance is not working. Check the electrical connection. Mains voltage shall be between 220 and 240 V. Appliance is not working. Check the electrical connection. Check if other appliance in your kitchen operate. - Page 17 P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O.
-
Page 18: Warranty
Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance. - Page 19 Arçelik A.Ş. Karaağaç Caddesi No: 2-6, 34445, Sütlüce, İstanbul, Türkiye www.defy.co.za...
