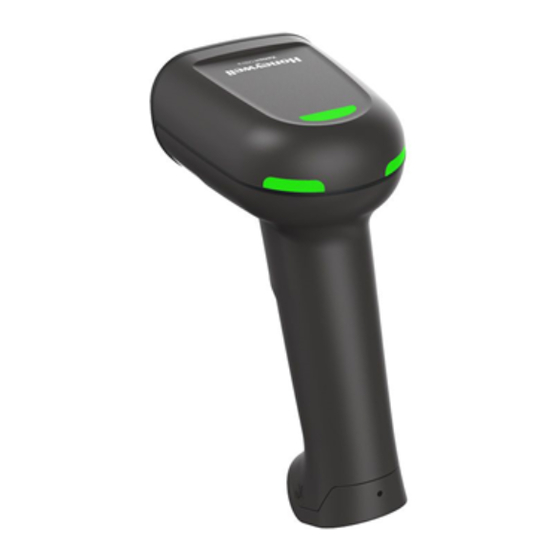

- Page 1 Xenon™ Ultra 1960x Series Corded Area-Imaging Scanner Scanner Models: 1960h, 1960g, 1960li Quick Start Guide 1960-EN-QS-01 Rev A 3/23...
- Page 2 Agency Model: 1960 Note: Refer to your User Guide for information about cleaning your device. Get Started Turn off computer’s power before connecting the scanner, then power up the computer once the scanner is fully connected. Power Supply Assembly (if included) Note: The power supply must be ordered separately, if needed.
- Page 3 Connect the Scanner USB:...
- Page 4 Keyboard Wedge:...
- Page 5 RS232 Serial Port: Reading Techniques The view finder projects an aiming beam that should be centered over the bar code, but it can be positioned in any direction for a good read. Standard Product Defaults The following bar code resets all standard product default set- tings.
- Page 6 RS232-based COM Port. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Hon- eywell website (sps.honeywell.com). The driver will use the next available COM Port number. Apple® Macintosh computers rec- ognize the scanner as a USB CDC class device and automati- cally use a class driver.
- Page 7 Keyboard Country Scan the appropriate country code below to program the key- board layout for your country or language. By default, national character replacements are used for the following characters: #$@[\]^‘{|}~ Refer to the ISO 646 Character Replacements chart in your User Guide to view the character replacements for each country.
- Page 8 Italy Norway Spain Switzerland Note: For a complete list of country codes, see the User Guide for your product. Trigger The following bar codes will allow you to use the scanner in Manual Trigger - Normal Mode (need to press the trigger to read) or Presentation mode (the scanner is activated when it “sees”...
- Page 9 Streaming Presentation™ When in Streaming Presentation mode, the scanner leaves the scan illumination on all the time and continuously searches for bar codes. Streaming Presentation Mode Suffix If you want a carriage return after the bar code, scan the Add CR Suffix bar code.
- Page 10 Add Code ID Prefix to all Symbologies Scan the following bar code if you wish to add a Code ID prefix to all symbologies at once. Add Code ID Prefix To All Symbologies (Temporary) Note: For a complete list of Code IDs, see the User Guide for your product.
- Page 11 Epic Scan the following bar code to configure your device to commu- nicate with an Epic software application. EMR Application Meditech® Scan the following bar code to configure your device to commu- nicate with a Meditech software application. Meditech Application Quiet Operations The following codes configure the scanner for quiet modes that do not disturb resting patients.
- Page 12 Silent Mode with Flashing LED Scan the following bar code to completely silence the scanner. When a bar code is scanned, the LED and aimer flash 5 times. Green indicates a good scan, red indicates a bad scan. Silent Mode with Flashing LED Silent Mode with Long LED Scan the following bar code to completely silence the scanner.
- Page 13 Support > Warranties. Patents For patent information, see www.hsmpats.com. Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all...
- Page 14 This document contains proprietary information that is pro- tected by copyright. All rights are reserved. No part of this docu- ment may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Copyright2023 Honeywell Group of Companies. All rights reserved.
