Summary of Contents for Kogan VIPER-X 4

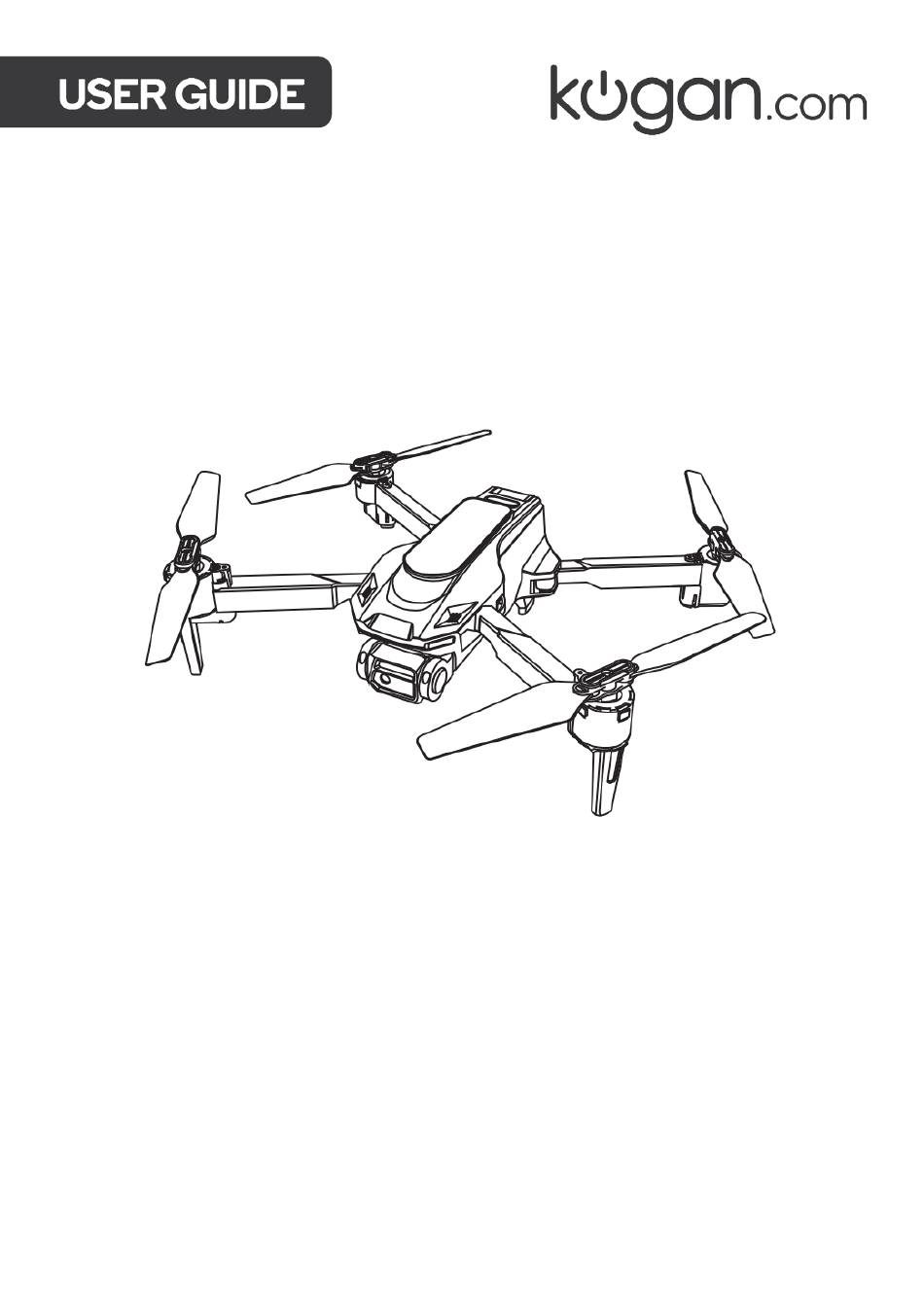

- Page 1 VIPER-X 4 DRONE WITH VR HEADSET KAVIP4DRONA...
- Page 2 Safety & Warnings Components Overview Assembly App Installation Operation Specifications Troubleshooting Notes...
- Page 3 SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. WARNING: This drone may need to be registered. Check with your local authority on the rules for registration. •...
- Page 4 • Do not operate the drone in unsafe conditions and keep clear of heat sources, wires, or electric power sources. • Do not fly the drone over areas affecting public safety or where there are emergency operations taking place. • This drone contains electrical components. Always keep this drone away from water and other liquids.
- Page 5 • I f the drone is damaged, cease use immediately and contact help.Kogan.com for support. Do not fly the drone if it is damaged (e.g., broken rotor blades) as it could cause injury. • I f you won’t be using the drone or transmitter for an extended period, remove the batteries to prevent damage from potential leakage.
- Page 6 COMPONENTS • Drone (Battery Included) • 2.4 GHz Transmitter • Additional Propeller Guards (x4) • Additional Propellers (x2) • USB Charging Cable • Screwdriver • User Guide OVERVIEW A1/A2 B1/B2 Head Tail A1/A2 B1/B2 Notes: • Each propeller is labelled with either A1/A2 or B1/B2. Ensure that you install each propeller in the correct position as illustrated above.
- Page 7 Controller Power Camera Down Right joystick Take Off/Landing/Emergency Stop Speed/Headless Mode Calibration/Light Photo/Video Flip/Spin Left joystick Camera Up...
- Page 8 ASSEMBLY Assemble the Propeller Guards For the safety and protection of yourself and others, ensure that the propeller guards are installed prior to flight. Install the propeller guards to the motor base according to the diagrams below. Changing Blades Use a screwdriver to loosen the screws. Remove the propeller by giving it a gentle pull.
- Page 9 Transmitter Installation 3 x AAA alkaline batteries Battery cover (not Included) Note: Always pay close attention to battery polarity to ensure they are fitted correctly. SD Card Storage • W ithout an SD memory card inserted, photos and videos taken by the drone will only be stored on your phone.
- Page 10 Charging the Drone Battery Remove the battery from the bottom of the drone. Insert the USB charging cable into a USB charging port. Connect the other end of the USB charging cable into a power adapter or computer (not provided). The battery indicator illuminates red when the battery is charging.
- Page 11 Phone Holder There is x1 foam pad included. Attach the foam pad to the phone holder, positioning it according to the location of your phone's buttons. Refer to the figure below for guidance. Foam pad Phone buttons...
- Page 12 Search for the ‘GX-FPV’ app in your phone’s app store, download and install it. Alternatively, scan the QR code below to download and install the app. Android Pairing Turn on the drone. Enter the Bluetooth settings menu of your mobile device. Search for ‘Kogan-Drone- xxXXx’ and tap ‘Connect’.
- Page 13 Camera Interface Take photo Show/hide mode setting Record video Reverse the screen Photo & video playback VR mode Speed: Slow (50%), Quick (80- Headless mode 100%) Gravity sensor mode Calibrate gyro Altitude hold Track mode 360° eversion Voice command control Show/hide control interface...
- Page 14 Pitch forward/backward fine-tune Left/right roll fine-tune Left/right rotation fine-tune Throttle control Left/right rotation Directional control (left/right) Directional control (forward/backward) Emergency stop Take off Landing...
- Page 15 OPERATION WARNING: • Rotating propellers can be dangerous. Do not start the motor when there are people nearby. • If the motor is still spinning, always keep your hands on the transmitter. Pair the Drone Place the drone on a flat, level surface with the front (camera side) facing forward and the tail towards the pilot.
- Page 16 Calibrate the Gyro After pairing, press the ‘Gyro Calibration’ button. The drone's LED lights will flash for 2-3 seconds. Once the lights turn solid, calibration is complete. For stable flight, it is recommended to calibrate the gyro after pairing the drone and after any crash. Do not attempt to calibrate the gyro while the drone is in flight.
- Page 17 Flight Control Rise and fall control: Rotate the left control stick - up or down and the drone will rise or fall. Forward and backward control: Rotate up or down on the right control stick and the drone will fly forward or backwards.
- Page 18 Turn left and right: Rotate the left control stick left or right and the drone will rotate to the left or to the right. Left-wing and right-wing control: Rotate the right control stick left or right and the drone will fly to the left or to the right.
- Page 19 Fine-tuning Press the right lever vertically, hear the beep and see the light flashing to enter the fine- tuning mode, then proceed as follows. • If the drone keeps drifting leftwards when hovering, press the right joystick to the right to adjust until it is balanced.
- Page 20 • If the drone keeps flying backwards when hovering, press the right joystick upward to adjust until it is balanced. • If the drone keeps flying forwards when hovering, press the right joystick downward to adjust until it is balanced. Note: Even after the drone is calibrated, it may show a tendency to drift while airborne.
- Page 21 Altitude Hold • T his drone is equipped with an Altitude Hold function, allowing it to hover steadily in the air. • D uring flight, the Altitude Hold function lets you release the throttle joystick while maintaining the drone's height, preventing it from descending to the ground. Spin Mode •...
- Page 22 Speed • The drone has three speed modes: Low, Medium, and High. Press the ‘Speed’ button on the transmitter to cycle through these modes. • One beep from the transmitter indicates Low speed, two beeps indicate Medium speed, and three beeps indicate High speed. •...
- Page 23 Flip Mode • Once you're comfortable with the drone's basic functions, you can try the using Flip mode. • Ensure the drone is at least 3m away from any objects. • Press the ‘Flip’ button and move the right joystick in any direction; the drone will flip in the corresponding direction.
- Page 24 Headless Mode Note: Do not use Headless mode until you fully understand the instructions in this user guide. Flying in Headless mode without sufficient experience could result in the loss or damage of the drone. • P lace the drone in front of you before pairing it with the transmitter.
- Page 25 Using the VR Headset • U sers with myopia can adjust the eye distance for each eye separately. Eye-distance and IPD adjustment • A djust the Interpupillary Distance (IPD) to suit your vision needs. Left-side Connect headphones or a USB cable. headphone jack Sliding panel The front panel can slide open to expose the camera.
- Page 26 Viewing Angle Control your viewing angle by tilting your head. WARNING: Do not use the VR headset while the phone is charging. If you feel dizzy or unwell, take a break immediately. Pregnant women, individuals with high blood pressure, and those with a fear of heights should not use the VR headset.
- Page 27 SPECIFICATIONS Drone Height 65mm Flight time 10 minutes Transmitter Operating frequency 2.4GHz Max transmission distance 80m (outdoor and unobstructed) Note: The drone's Wi-Fi screen may freeze at 40m. The remote control of the drone may be lost at distances between 80-90m. Flight battery Capacity 1000mAh...
- Page 28 TROUBLESHOOTING Problem Possible Cause Solution The transmitter is not Re-pair the drone to the The lights of the drone synced to the drone. transmitter. are flashing and do not Insufficient battery power. Recharge the battery. respond to the Drone is out of control transmitter.
- Page 29 Common Problems E nsure the VR app is set to split-screen R emove the smartphone from the side of mode (side-by-side mode) for proper the VR viewer. viewing. Adjust the IPD and eye distance settings W hen placing the smartphone into the to prevent dizziness.
- Page 30 NOTES...
- Page 32 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
