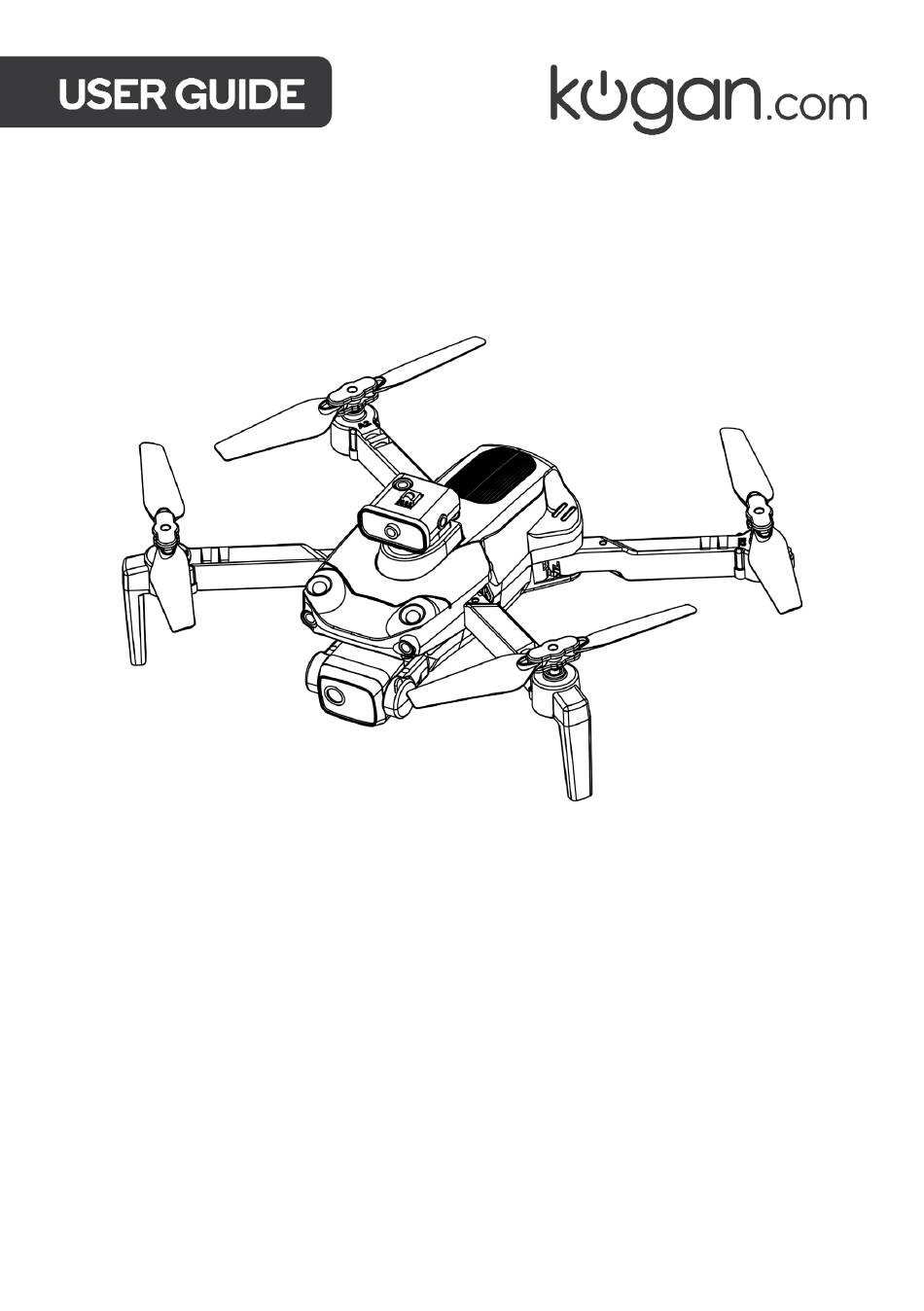

- Page 1 4K CAMERA DRONE WITH OBSTACLE AVOIDANCE INCLUDING 2 BATTERIES KA4KOADRONA...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Before First Use Operation Wi-Fi UAV App Cleaning & Care Troubleshooting... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. WARNING: This drone may need to be registered. Check with your local authority on the rules for registration. •... - Page 4 • Do not fly the drone over areas affecting public safety or where there are emergency operations taking place. • This drone contains electrical components. Always keep this drone away from water and other liquids. Exposure to water or moisture in any form can cause this drone to malfunction resulting in a crash.
-
Page 5: Components
COMPONENTS A Drone (x1) B Remote control (x1) C Spare propellers (x4) D Protective guards (x4) E USB charging cable (x1) F Batteries (x2) G Screwdriver (x1) H User guide (x1) -
Page 6: Overview
OVERVIEW Drone Propeller Power button Obstacle avoidance sensor Battery Upper casing Camera Lower casing Indicator light Motor... - Page 7 Remote control Trim button Capture/record button Speed/headless mode button Flip and roll/return button Left joystick Right joystick Camera angle up button Take-off/land/emergency stop button Camera angle down button Power/obstacle avoidance button...
-
Page 8: Before First Use
BEFORE FIRST USE Remote control The remote control needs x3 AA batteries (not supplied) to operate. 1. Open the battery cover. 2. Noting the polarity markings (+/–), insert x3 AA batteries into the remote control. Reattach the battery cover. Notes: •... - Page 9 Protective guards Align the protective guards with the motors on the arms, then attach them by pressing them into place. Battery for the drone The battery must be charged before first use. 1. Remove the lithium battery from the bottom of the drone. 2.
- Page 10 Connecting the signals of the transmitter and receiver 1. Long press the power button on the drone and remote control to turn on the drone and place it on a level surface. The indicator lights of the transmitter and drone will be flashing.
-
Page 11: Operation
OPERATION Take-off 1. Long press the power button on the drone and remote control to turn on the drone. 2. Press the take-off button and the drone propellers will start rotating. The drone will automatically fly at a height of 1.5 metres. Flight controls •... - Page 12 Speed This drone features two speed settings. Press the speed button to switch between the two speeds. Flips and rolls When the drone is more than three metres off the ground, press the flip and roll button and move the right joystick either left or right. The drone will then flip in that direction. Flip to left Flip to right Return...
- Page 13 Headless mode By default, the flight controls of the drone are based on the position of the nose of the drone at any given time. For beginners, this may make the drone difficult to control if the drone changes its orientation. Activating headless mode allows easier control of the drone as it will move according to the joystick controls regardless of where the nose is facing.
- Page 14 Trim adjustment If the drone is deviating off-course or has lost its balance when stationary, trim adjustments will need to be made. 1. Press the trim button and you will hear a beep. 2. Move the right joystick in the appropriate direction to regain balance on the drone. For example, if the drone is tilting towards the right, move the joystick left.
-
Page 15: Wi-Fi Uav App
WIFI UAV APP Apart from the remote control, the drone can also be controlled by using the ‘WiFi UAV’ app. Interface (before connection) Press the ‘Off’ icon to reveal more functions and movement controls. Back Accelerate Photo Pitch Video Take-off Flight trajectory Trim adjustment: Forward Speed control (30%, 60%, 100%) - Page 16 Menu icon (before connection) Press the ‘Menu’ icon to view more options. Reverse camera Headless flight mode Gesture control Calibration 3D view Video options icon (before connection) Press the ‘Video options’ icon to view video settings that can be changed. Back Wavy effect Split screen...
- Page 17 App installation 1. Scan the below QR code to download the ‘WiFi UAV’ app according to your phone’s operating system. Android 2. Turn on the drone. Enter the Wi-Fi settings of your phone and search for the Wi-Fi network, ‘FLOW__4K***’. Tap to connect. 3.
- Page 18 Interface (after connection) Back Mirror camera Shot switching Gravity control Gallery Calibration Video options Headless mode Ascend/descend More functions Turn left/right Emergency stop Take-off Speed control (30%, 60%, 100%) Gesture control (photo) Photo Zoom Video Gesture control (video) Flying sideways Follow Forward/backward Path...
-
Page 19: Cleaning & Care
CLEANING & CARE Once powered off, wipe the drone with a dry cloth. Propeller replacement 1. Use the screwdriver to remove the screws that are attached to the current propellers. Remove the propellers. 2. Noting the ‘A’ and ‘B’ lettering on the spare propellers, insert the spare propellers onto the matching motors. - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
