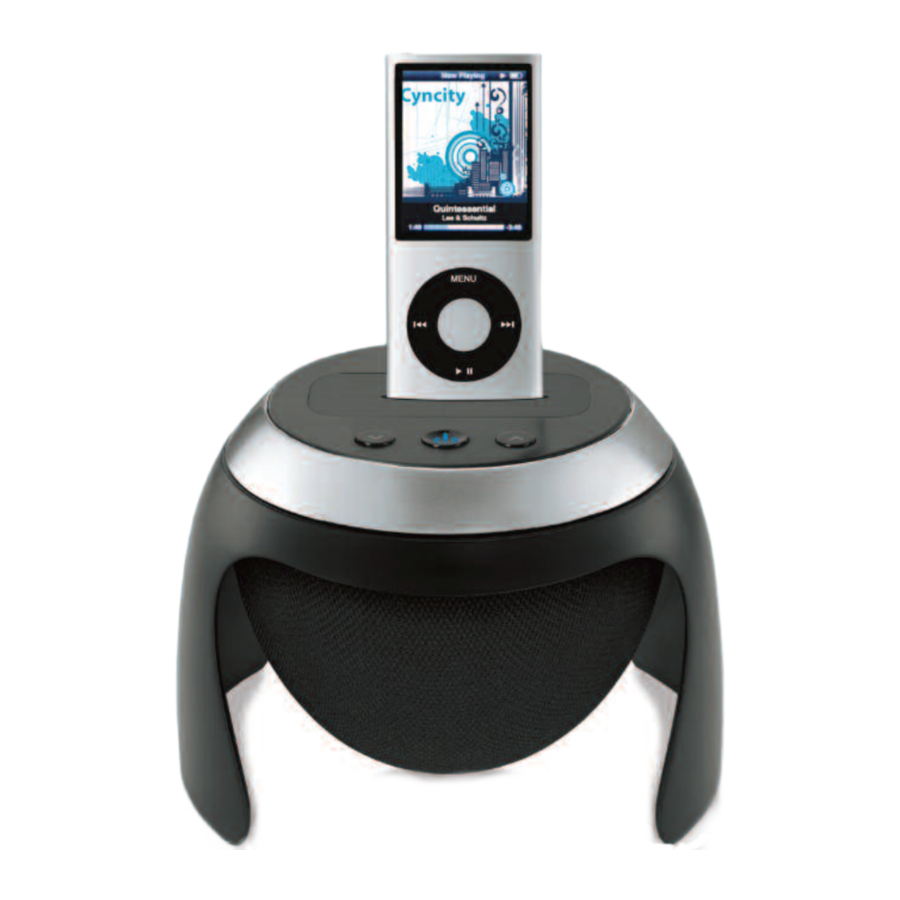

Homedics HMDX-S10 Manual

Product Overview

Figure 1

1. POWER Button
2. Volume Decrease
3. Volume Increase
4. Dock for iPod
5. Faceplate Area
6. Line In Connection Cable
7. DC Adapter
8. iPod Inserts (5)
   • 3^rd Gen iPod nano
   • 4^th Gen iPod nano
   • 5^th Gen iPod 30GB/iPod classic 80GB & 120 GB | iPod Touch
   • 5^th Gen iPod 60GB & 80GB/iPod classic 160GB
   • 2^nd Gen iPod Touch
9. Interchangeable Faceplates (4)

Getting Started

1. Attach the DC adaptor to the DC Jack located on the back of the unit.(Fig. 3)

2. Plug the cord into 120V household outlet.

Charging your iPod

Select the correct insert for your particular iPod model from the chart below:

When you want to connect a different size iPod, remove the insert from the dock and replace with the correct size insert. To remove dock insert, place fingernail in slot on insert (Fig. 2) and gently pull up. You must always use the appropriate size insert for your iPod. If you do not find the correct matching dock insert listed above to your iPod model, you may use the dock adapter insert that was included with your original iPod purchase or call HMDX AUDIO Service Center at 1.800.466.3342 to purchase one.
Note: Make sure you are using the correct insert for your iPod and that it is properly placed in the dock of the unit. Failure to do so may damage your iPod.

INSERTS AND PIN CONNECTOR ARE DESIGNED FOR APPLE iPOD MUSIC PLAYERS ONLY. ATTEMPTING TO ATTACH OR FORCE ANY NON-iPOD MUSIC PLAYER INTO ENCLOSED INSERTS OR ONTO THE PIN CONNECTOR WILL DAMAGE AND EVEN DESTROY YOUR DEVICE.

1. Before you begin, remove your iPod from its case or 'skin'. Place insert in dock, being sure that the two plastic tabs face the front of the unit. Press insert into place, ensuring it is firmly placed in the dock (Fig. 2). Carefully place your iPod into the docking area so that the pin connector in the dock is fully connected to the pin socket on the bottom of your iPod (Fig. 4). You will hear a "chirp", indicating that your iPod is properly connected.

2. Your iPod will begin charging, until fully charged.
   Note: Your iPod will charge even if the POWER button is turned off. The unit only needs to be plugged in for the iPod to charge.
3. To remove/replace an insert, first remove your iPod then insert fingernail in slot on insert (Fig. 2), and gently pull up.

Listening to Your iPod

1. Press the POWER button on the top of the unit to turn it on (Fig. 1).
2. Press the PLAY/PAUSE button on your iPod to pause play; press again to resume play.
3. Press the '\/' or '/\' button on the unit to adjust volume (Fig. 1).
4. Press the or on your iPod to go to the next or previous track.
5. To turn off the unit, press the POWER button on the top of the unit. TheiPod will continue charging in the dock.

Listening to a non-docking iPod or other portable audio devices

If you are using an iPod without a docking port, other MP3 player, or other portable audio device, you can play it through the unit via the LINE IN jack located on the back of the unit. (Fig. 5)

1. Plug one end of the Connection Cable (included) (Fig. 1) into theheadphone or line-out jack on your audio device and the other end of the Connection Cable into the unit's LINE IN jack located on the back of the unit (Fig. 5).
2. Press the POWER button on the unit to turn it on (Fig. 1).
3. Turn on and play external audio device.
4. Press the '\/' or '/\' button on the unit to adjust volume (Fig. 1).
   Note: You may need to adjust the volume on external device too.
5. To turn unit off, press the POWER button on the back of the unit.

Note: You also need to turn off your external audio device as well.

Changing the Colored Faceplates

Attaching Faceplate

1. Choose a faceplate.
2. Place faceplate on top of unit, so 3 notches are lined up.
3. With one hand on top of unit, apply pressure and gently rotate the faceplateclockwise, ensuring all 3 notches lock in place. (Fig. 6)


Removing Faceplate

1. With one hand on top of unit, apply pressure and gently rotate thefaceplate ring counterclockwise, releasing all 3 notches from the base of the unit. (Fig. 7)

2. Grasp the faceplate and pull up. Be sure not to force or pull too hard so that the notches do not break.
3. See ATTACHING FACEPLATE for directions on replacing the faceplate.

Maintenance

To Store
You may leave the unit on display, or you can store it in its box in a cool, dry place.

To Clean
Use only a soft dry cloth to clean the enclosure of the unit.
NEVER use liquids or abrasive cleaner to clean.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

To reduce the risk of electric shock:

• Always unplug the appliance from the electrical outlet immediately after using and before cleaning.
• Do not reach for an appliance that has fallen into water. Unplug it immediately.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.

To reduce the risk of burns, fire, electric shock or injury to persons:

• Close supervision is necessary when this appliance is used by or near children, invalids or disabled persons.
• Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by HMDX; specifically any attachments not provided with the unit.
• Never operate this appliance if it has a damaged cord, plug, cable or housing. If it is not working properly, if it has been dropped or damaged, return it to HMDX Service Center for examination and repair.
• Keep cord away from heated surfaces.
• Never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not carry this appliance by power cord or use cord as handle.
• To disconnect, remove plug from outlet.
• This appliance is designed for indoor use only. Do not use outdoors.
• Only set on dry surfaces. Do not place on surface wet from water or cleaning solvents.

Please read all instructions carefully before operating.

• Never leave the appliance unattended, especially if children are present.
• Never cover the appliance when it is in operation.
• This unit should not be used by children without adult supervision.
• Always keep the cord away from high temperature and fire.
• Do not lift, carry, hang, or pull the product by the power cord.
• If the adaptor sustains damage, you must stop using this product immediately and contact the HMDX Service Center. (See the warranty section for the HMDX address.)

All servicing of this product must be performed by authorized HMDX Service Personnel only.

SAVE THESE INSTRUCTIONS

LIMITED ONE YEAR WARRANTY

To obtain warranty service on your HMDX AUDIO product, mail the product and your dated sales receipt (as proof of purchase), postpaid, to the following address:
HMDX AUDIO Consumer Relations
Service Center Dept. 168
3000 Pontiac Trail
Commerce Township, MI 48390

HMDX AUDIO Service Center
1.800.466.3342
8:30 – 5:00 p.m. (EST) M – F

Mail To:
HMDX AUDIO
Consumer Relations
Service Center Dept. 168
3000 Pontiac Trail
Commerce Township, MI
48390
