Summary of Contents for Masterbuilt MB20041423

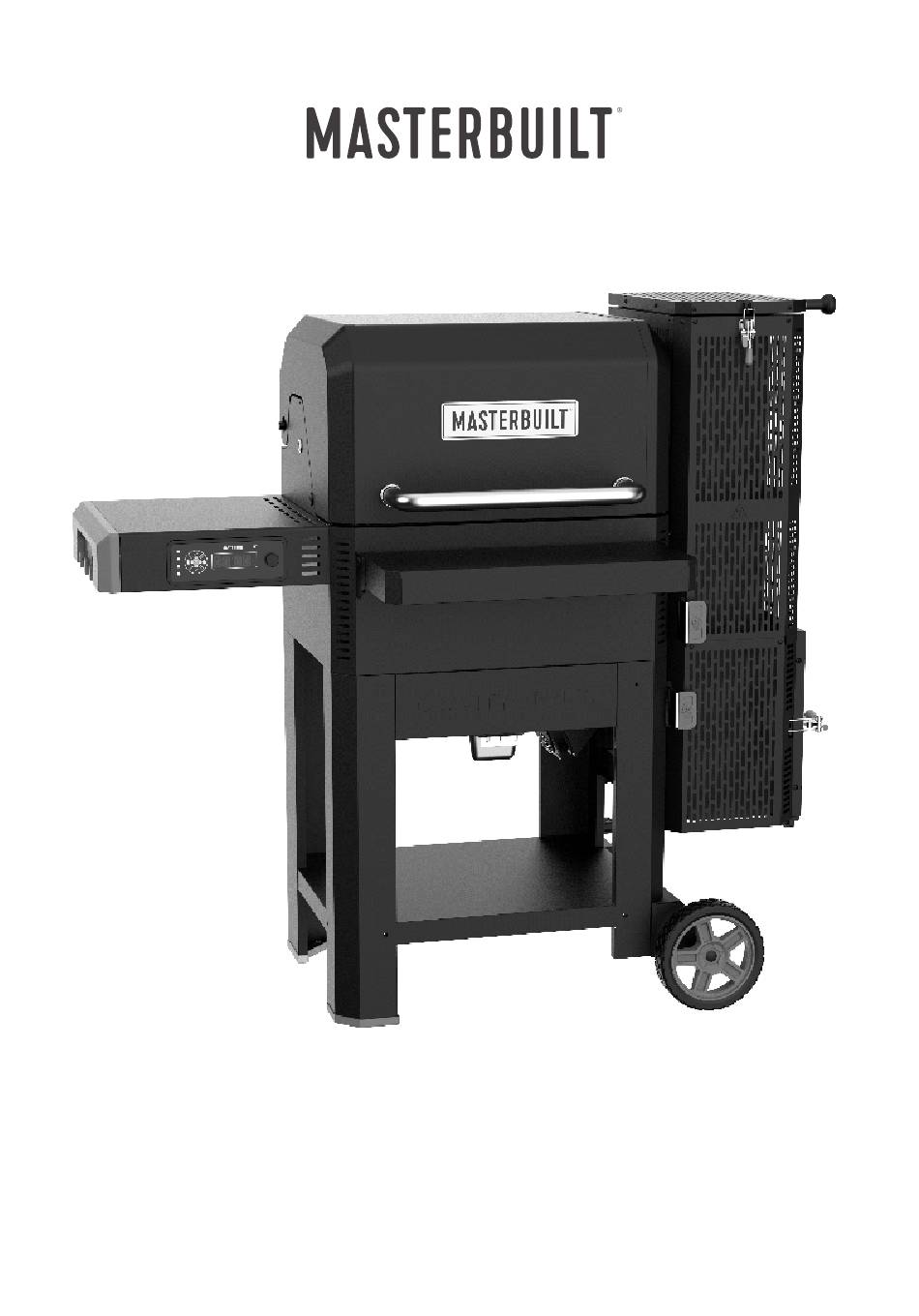

- Page 1 MB20041423 GRAVITY SERIES™ 600 9804230039 231020-GH...
- Page 2 Welcome | Bienvenue | Bienvenido | Welkom!| Willkommen | Üdvözöljük! | Benvenuti | Velkommen | Добрый день | Välkommen | Tervetuloa | Witajcie Assembly Images are shown first. Please read and follow all warnings and instructions before assembling and using the appliance. Les images de montage sont montrées en premier.
- Page 4 Parts Diagram | Schéma des pièces | Diagrama de partes | Afbeelding van onderdelen | Osaluettelo | Ersatzteildiagramm Alkatrészrajzok | Diagramma delle parti | Liste over deler | Lista części | Схема деталей | Förteckning över delar...
- Page 5 Parts List QTY. DESCRIPTION QTY. DESCRIPTION Handle Mount Hopper Lid Latch Handle Tube Smoke + Sear Grates Lid Assembly Heat Manifold (Grill) Hopper Shrouding Front Leg Cross Brace Hopper Lid Assembly Bottom Shelf Assembly Hopper Heat Shield - Top Heat Manifold Support Warming Rack Bottom Tray Assembly Body Assembly...
- Page 17 Warning Code: DCG-02-230915-MSH FOR OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE. WARNING • This manual contains important information necessary for the proper assembly and safe use of the appliance. • Read and follow all warnings and instructions before assembling and using the appliance. •...
- Page 18 • Accessory attachments not supplied by Masterbuilt® are NOT recommended and may cause injury. • Do not store grill with hot ashes or charcoal inside grill/hopper (could be item specific). Store only when fire is completely out and all surfaces are cold.
- Page 19 DO NOT RETURN TO RETAILER! For assembly assistance, missing or damaged parts, please contact Masterbuilt® Customer Service. Masterbuilt ® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341 www.masterbuilt.com/pages/customer-support Masterbuilt ® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands international.masterbuilt.com/pages/customer-support...
- Page 20 Operating Instructions CONTROL PANEL Power ON/Off/Pause Controller: Meat 1. Press button to power controller ON. Probe Jacks 2. Single press while on = PAUSE FUNCTION 3. Long press while on = Power OFF Pause Function: The grill is equipped with a PAUSE function to better help maintain set temperatures when the lid is opened. •...
- Page 21 Operating Instructions CONNECTIVITY 1. Download the Masterbuilt app from the Apple App Store or Google Play Store onto your smart device(s). For more information go to masterbuilt.com/pages/app-device-requirements. 2. Once the download is complete, open the Masterbuilt app and follow the instruction for pairing your grill and smart device(s).
- Page 22 Operating Instructions ASSEMBLY IS DONE. LET’S HAVE SOME FUN! PRE-SEASONING Pre-seasoning will rid your grill of chemicals and oils left over by the manufacturing process, allowing them to burn off. PRE-SEASON GRILL PRIOR TO FIRST USE. 1. Fill the hopper with charcoal approximately 1/4–1/2 full. 2.
- Page 23 Operating Instructions RELOAD If it is necessary to refill the hopper while cooking, follow the safe reloading instructions below. 1. DO NOT refill charcoal when the grill is above 250°F (121°C) 2. The fan will turn off when you open the hopper lid or ash door. This is a safety feature of the grill. 3.
- Page 24 Operating Instructions CLEANING AND STORAGE ALWAYS MAKE SURE GRILL IS COOL TO THE TOUCH BEFORE CLEANING AND STORING. • Inspect hardware and assembled parts on a regular basis to ensure grill is in safe working condition. • Clean grill and cooking/smoking grates with mild dish detergent. Wipe outside of grill with a damp rag. DO NOT use oven cleaner or other cleaning agents.
- Page 25 Plug controller into power supply and power supply into wall outlet. Circuit breaker tripped. Check wall outlet circuit breaker and reset if tripped. Controller malfunction. Masterbuilt Customer Service https://www.masterbuilt.com/pages/support Fan not ON. Temperature in cabinet has reached Once the set temperature is reached the fan will turn off. Once the set temperature.
- Page 26 This warranty does not apply to labor, or any other cost associated with the service, repair or operation of the grill. Masterbuilt® will pay all shipping charges on warranty parts.
