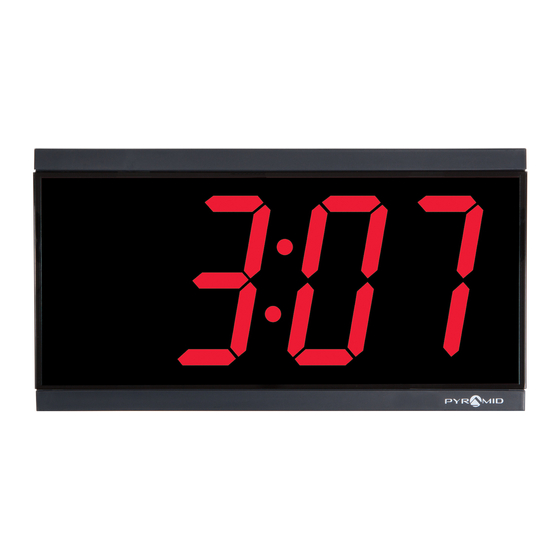

PYRAMID DIG-4B, DIG-6B DIGITAL CLOCK
Operation Instructions
SECURITY BRACKET REMOVAL
Prior to installation, detach metal security bracket from clock by inserting included release key into
1
slot located on back of clock.
Push key all the way into slot. Key will slide easily until some resistance from locking tab is felt.
2
With key fully engaged, slide the security bracket down and off of the clock.
3
When ready to hang after setting up the clock see your digital bracket template provided.
4
I2009 - REV H
View of back of clock with bracket attached.
Release Key
To optional
Counter/BCD
MIN
HR
Power
888.479.7264
Advertisement
Related Manuals for Pyramid DIG-4B
Summary of Contents for Pyramid DIG-4B
- Page 1 PYRAMID DIG-4B, DIG-6B DIGITAL CLOCK Operation Instructions SECURITY BRACKET REMOVAL Prior to installation, detach metal security bracket from clock by inserting included release key into slot located on back of clock. Push key all the way into slot. Key will slide easily until some resistance from locking tab is felt.
- Page 2 Operation Instructions SET TIME Plug clock into standard electrical outlet. Clock displays 88:88 (DIG-4B) or 88:88:88 (DIG-6B). To set time, hold clock display facing towards you and locate two buttons on back of clock. With clock display facing you, press left hand button to set hour. Press right hand button to set minute. PM is indicated by the PM indicator light in upper left hand corner.
- Page 3 Failure caused by accident, alteration, misuse or improper packaging of returned unit is not covered by this warranty. All warranty repairs must be done by Pyramid Time Systems, LLC. Any repair to the equipment other than Pyramid Time Systems voids the warranty. Users in countries other than the USA should contact the Dealer from whom the unit was purchased.
