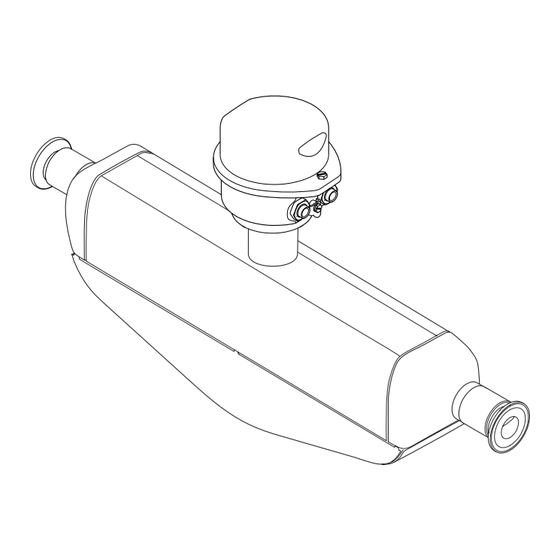

Endress+Hauser Proline Promass P 100 Ethernet/IP Operating Instructions Manual

Coriolis flowmeter
Hide thumbs

Advertisement

Quick Links

Download this manual
BA01067D/06/EN/05.24-00
71674307
2024-11-01
Valid as of version
01.02.zz (Device firmware)
Products
Operating Instructions
Proline Promass P 100
Ethernet/IP
Coriolis flowmeter
Solutions
Services

Advertisement

loading
Need help?

Need help?

Do you have a question about the Proline Promass P 100 Ethernet/IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Proline Promass P 100 Ethernet/IP

Summary of Contents for Endress+Hauser Proline Promass P 100 Ethernet/IP

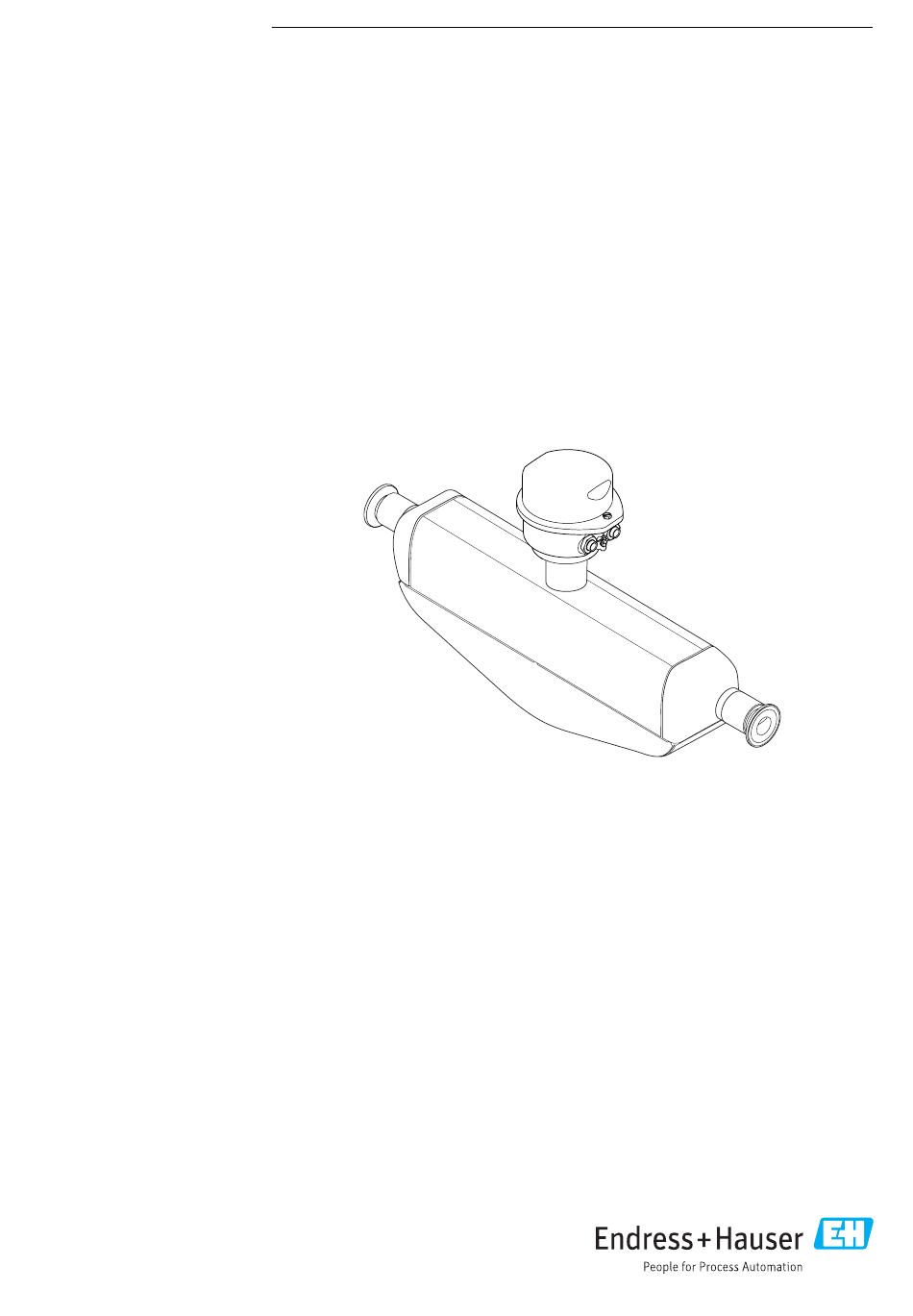

  • Page 1 Products Solutions Services BA01067D/06/EN/05.24-00 71674307 2024-11-01 Valid as of version 01.02.zz (Device firmware) Operating Instructions Proline Promass P 100 Ethernet/IP Coriolis flowmeter...
  • Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser sales organization will supply you with current information and updates to this manual. Endress+Hauser...
  • Page 3 Proline Promass P 100 Ethernet/IP Table of contents Table of contents 6.2.3 Mounting the measuring device ..24 About this document ....6 6.2.4...
  • Page 4 ......71 13.3 Endress+Hauser services ....100 Operation .
  • Page 5 Proline Promass P 100 Ethernet/IP Table of contents 16.4 Output ......16.5 Power supply ......111 16.6 Performance characteristics .
  • Page 6 About this document Proline Promass P 100 Ethernet/IP About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal.
  • Page 7 For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Endress+Hauser...
  • Page 8 About this document Proline Promass P 100 Ethernet/IP The following documentation may be available depending on the device version ordered: Document type Purpose and content of the document Technical Information (TI) Planning aid for your device The document contains all the technical data on the device and provides an overview of the accessories and other products that can be ordered for the device.
  • Page 9 Proline Promass P 100 Ethernet/IP Safety instructions Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task.
  • Page 10 Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.
  • Page 11 Proline Promass P 100 Ethernet/IP Product description Product description The device consists of a transmitter and a sensor. The device is available as a compact version: The transmitter and sensor form a mechanical unit. Product design 3.1.1 Device version with EtherNet/IP communication protocol A0023153 ...
  • Page 12 • Enter the serial numbers from the nameplates in the Device Viewer (www.endress.com/deviceviewer): all the information about the device is displayed. • Enter the serial numbers from the nameplates into the Endress+Hauser Operations app or scan the DataMatrix code on the nameplate with the Endress+Hauser Operations app: all the information about the device is displayed.
  • Page 13 Proline Promass P 100 Ethernet/IP Incoming acceptance and product identification 4.2.1 Transmitter nameplate Order code: Ser. no.: Ext. ord. cd.: A0030222  2 Example of a transmitter nameplate Manufacturer address/certificate holder Name of the transmitter Order code Serial number Extended order code Electrical connection data, e.g.
  • Page 14 Incoming acceptance and product identification Proline Promass P 100 Ethernet/IP 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Date: A0029199  3 Example of a sensor nameplate Name of the sensor Manufacturer address/certificate holder Order code Serial number (Ser. no.) Extended order code (Ext.
  • Page 15 Proline Promass P 100 Ethernet/IP Incoming acceptance and product identification 4.2.3 Symbols on the device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Please consult the documentation for the measuring instrument to discover the type of potential danger and measures to avoid it.
  • Page 16 Storage and transport Proline Promass P 100 Ethernet/IP Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections.
  • Page 17 Proline Promass P 100 Ethernet/IP Storage and transport 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device. ‣...
  • Page 18 Installation Proline Promass P 100 Ethernet/IP Installation Installation requirements 6.1.1 Installation position Installation point A0028772 To prevent measuring errors arising from accumulation of gas bubbles in the measuring pipe, avoid the following mounting locations in the piping: • Highest point of a pipeline.
  • Page 19 Proline Promass P 100 Ethernet/IP Installation Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ³⁄₈ 0.24 ½ 0.40 0.55 1 ½ 0.87 1.10 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping).
  • Page 20 Installation Proline Promass P 100 Ethernet/IP Inlet and outlet runs No special precautions need to be taken for fittings that create turbulence, such as valves, elbows or T-pieces, as long as no cavitation occurs →  20. A0029322 A0029323 Installation dimensions For the dimensions and installation lengths of the device, see the "Technical...
  • Page 21 Proline Promass P 100 Ethernet/IP Installation The following device versions are recommended for versions with thermal insulation: • Version with extended neck for insulation: Order code for "Sensor option", option CG with an extended neck length of 105 mm (4.13 in).
  • Page 22 Installation Proline Promass P 100 Ethernet/IP Heating options If a fluid requires that no heat loss should occur at the sensor, users can avail of the following heating options: • Electrical heating, e.g. with electric band heaters • Via pipes carrying hot water or steam •...
  • Page 23 Proline Promass P 100 Ethernet/IP Installation Use mounting clamp with lining between clamp and measuring instrument. A0030298 [mm] [in] [mm] [in] [mm] [in] [mm] [in] ³⁄₈ 11.73 ½ 15.83 21.34 1 ½ 25.91 36.5 1.44 30.39 44.1 1.74 2.95 Zero verification and zero adjustment All measuring instruments are calibrated in accordance with state-of-the-art technology.
  • Page 24 Installation Proline Promass P 100 Ethernet/IP Installing the measuring instrument 6.2.1 Required tools For sensor For flanges and other process connections: Use a suitable mounting tool. 6.2.2 Preparing the measuring instrument 1. Remove all remaining transport packaging. 2. Remove any protective covers or protective caps present from the sensor.
  • Page 25 Proline Promass P 100 Ethernet/IP Installation Aluminum housing version, AlSi10Mg, coated 3 mm A0023192 Compact and ultra-compact housing version, hygienic, stainless 8 mm A0023195 Post-installation check Is the device undamaged (visual inspection)?  Does the measuring instrument correspond to the measuring point specifications? For example: •...
  • Page 26 Electrical connection Proline Promass P 100 Ethernet/IP Electrical connection WARNING Live parts! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Set up a disconnecting device (switch or power-circuit breaker) to easily disconnect the device from the supply voltage.
  • Page 27 Proline Promass P 100 Ethernet/IP Electrical connection 7.2.3 Terminal assignment Transmitter EtherNet/IP connection version Order code for "Output", option N Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available Order code...
  • Page 28 Electrical connection Proline Promass P 100 Ethernet/IP 7.2.4 Pin assignment, device plug Supply voltage Assignment DC 24 V Not assigned Not assigned DC 24 V Grounding/shielding A0016809 Coding Plug/socket Plug Device plug for signal transmission (device side) Assignment Coding Plug/socket...
  • Page 29 Proline Promass P 100 Ethernet/IP Electrical connection 7.3.1 Connecting the transmitter The connection of the transmitter depends on the following order codes: • Housing version: compact or ultra-compact • Connection version: device plug or terminals A0016924  8 Housing versions and connection versions...
  • Page 30 Electrical connection Proline Promass P 100 Ethernet/IP For device version with device plug: follow step 6 only. 1. Depending on the housing version, loosen the securing clamp or fixing screw of the housing cover. 2. Depending on the housing version, unscrew or open the housing cover and disconnect the local display from the main electronics module where necessary →...
  • Page 31 Proline Promass P 100 Ethernet/IP Electrical connection Special connection instructions 7.5.1 Connection examples EtherNet/IP A0028767  10 Connection example for EtherNet/IP Control system (e.g. PLC) Ethernet switch Observe cable specifications Device plug Transmitter Hardware settings 7.6.1 Setting the device address EtherNet/IP The IP address of the measuring device can be configured for the network via DIP switches.
  • Page 32 Electrical connection Proline Promass P 100 Ethernet/IP Setting the address OFF ON - Write protection - Default Ethernet network settings IP 192.168.1.212 A0017913 1. Depending on the housing version, loosen the securing clamp or fixing screw of the housing cover.
  • Page 33 Proline Promass P 100 Ethernet/IP Electrical connection Post-connection check Are the device and cable undamaged (visual inspection)?  Do the cables used comply with the requirements →  26?  Are the installed cables strain-relieved and securely routed?  Are all cable glands installed, securely tightened and leak-tight? Cable run with "water trap"...
  • Page 34 Operation options Proline Promass P 100 Ethernet/IP Operation options Overview of operation options A0017760 Computer with web browser or with "FieldCare" operating tool Automation system, e.g. "RSLogix" (Rockwell Automation) and work station for measuring instrument operation with Add-on Profile Level 3 for "RSLogix 5000" software (Rockwell Automation)
  • Page 35 Proline Promass P 100 Ethernet/IP Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: see the "Description of Device Parameters" document supplied with the device →  127...
  • Page 36 Operation options Proline Promass P 100 Ethernet/IP 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (e.g. operator, maintenance etc.). Each user role contains typical tasks within the device life cycle. Menu/parameter User role and tasks...
  • Page 37 Proline Promass P 100 Ethernet/IP Operation options Displaying the measured values via the local display (optionally available) 8.3.1 Operational display The local display is optionally available: Order code for "Display; operation", option B ""4-line, illuminated; via communication". X X X X X X X 1120.50...
  • Page 38 Operation options Proline Promass P 100 Ethernet/IP • Density • Reference density Temperature Totalizer  The measurement channel number indicates which of the three totalizers is displayed. Output  Measurement channel numbers Symbol Meaning Measurement channel 1 to 4 The measurement channel number is displayed only if more than one channel is present for the same measured variable type (e.g.
  • Page 39 Proline Promass P 100 Ethernet/IP Operation options Access authorization to parameters: "Operator" user role Access code status Read access Write access After an access code has been defined.  – Despite the defined access code, certain parameters can always be modified and thus are excluded from the write protection as they do not affect the measurement: write protection via access code The user role with which the user is currently logged on is indicated by the .
  • Page 40 Operation options Proline Promass P 100 Ethernet/IP Computer settings User rights Appropriate user rights (e.g. administrator rights) for TCP/IP and proxy server settings are necessary (for adjusting the IP address, subnet mask etc.). Proxy server settings of the The web browser setting Use a Proxy Server for Your LAN must be deselected .
  • Page 41 Proline Promass P 100 Ethernet/IP Operation options 8.4.3 Connecting the device Via service interface (CDI-RJ45) Preparing the measuring device Configuring the Internet protocol of the computer The IP address can be assigned to the measuring device in a variety of ways: •...
  • Page 42 Operation options Proline Promass P 100 Ethernet/IP 2. Enter the IP address of the web server in the address line of the web browser: 192.168.1.212  The login page appears. 2 3 4 Device name: Device tag: Signal Status: Web server language...
  • Page 43 Proline Promass P 100 Ethernet/IP Operation options 8.4.5 User interface A0032879 Picture of device Device name Device tag Status signal Current measured values Navigation area Local display language Header The following information appears in the header: • Device name • Device tag •...
  • Page 44 Operation options Proline Promass P 100 Ethernet/IP Functions Meaning Configuration and checking of all the parameters required for establishing the connection to the measuring device: Network • Network settings (e.g. IP address, MAC address) • Device information (e.g. serial number, firmware version)
  • Page 45 Proline Promass P 100 Ethernet/IP Operation options 1. Select the Logout entry in the function row.  The home page with the Login box appears. 2. Close the Web browser. 3. If no longer needed: Reset the modified properties of the Internet protocol (TCP/IP) →  41.
  • Page 46 FieldCare Function range FDT-based (Field Device Technology) plant asset management tool from Endress+Hauser. It can configure all smart field units in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
  • Page 47 DeviceCare Function range Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. Innovation brochure IN01047S Source for device description files →...
  • Page 48 System integration Proline Promass P 100 Ethernet/IP System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.02.zz • On the title page of the manual • On the transmitter nameplate • Firmware version Diagnostics →...
  • Page 49 Proline Promass P 100 Ethernet/IP System integration Integrating the measuring device in the system For detailed information on system integration, see the Operating Instructions for the device A detailed description of how to integrate the device into an automation system (e.g.
  • Page 50 System integration Proline Promass P 100 Ethernet/IP Configuration 4: Input Only Multicast Input Assembly Configurable Instance Size (byte) Min. RPI (ms) Input Assembly Configurable Configuration 0 x 68 – Output Assembly Fix O → T Configuration 0 x C7 –...
  • Page 51 Proline Promass P 100 Ethernet/IP System integration Name Description Byte 10. Totalizer 2 37…40 11. Totalizer 3 41…44 Structure: Code, number, description (e.g.: 16777265 F882 input signal) Detailed description: • Diagnostic information →  83 • Information events →  96...
  • Page 52 System integration Proline Promass P 100 Ethernet/IP Name Description (format) Byte Value 8. Not used – 9. Not used 2…4 0…8 – 10. Control totalizer 1 (integer) 5…6 0…8 • -32226: Add • -32490: Reset and stop • -32228: Default value and stop •...
  • Page 53 Proline Promass P 100 Ethernet/IP Commissioning Commissioning 10.1 Post-mounting and post-connection check Before commissioning the device: ‣ Make sure that the post-installation and post-connection checks have been performed successfully. • Checklist for "Post-installation" check→  25 • Checklist for "Post-connection" check→  33 10.2...
  • Page 54 Commissioning Proline Promass P 100 Ethernet/IP ‣ Partially filled pipe detection →  61 ‣ Advanced setup →  62 10.4.1 Defining the tag name To enable fast identification of the measuring point within the system, you can enter a unique designation using the Device tag parameter and thus change the factory setting.
  • Page 55 Proline Promass P 100 Ethernet/IP Commissioning Temperature unit →  56 Pressure unit →  56 Parameter overview with brief description Parameter Description Selection Factory setting Mass flow unit Select mass flow unit. Unit choose list Country-specific: • kg/h Effect •...
  • Page 56 Commissioning Proline Promass P 100 Ethernet/IP Parameter Description Selection Factory setting Temperature unit Select temperature unit. Unit choose list Country-specific: • °C Effect • °F The selected unit applies to: • Electronic temperature parameter (6053) • Maximum value parameter (6051) •...
  • Page 57 Proline Promass P 100 Ethernet/IP Commissioning 10.4.3 Selecting and setting the medium The Select medium wizard submenu contains parameters that must be configured in order to select and set the medium. Navigation "Setup" menu → Medium selection ‣ Medium selection Select medium →...
  • Page 58 Commissioning Proline Promass P 100 Ethernet/IP Parameter Prerequisite Description Selection / User entry Reference sound velocity In the Select gas type parameter, the Enter sound velocity of gas at 0 °C (32 1 to 99 999.9999 m/s Others option is selected. °F).
  • Page 59 Proline Promass P 100 Ethernet/IP Commissioning Parameter Description User interface / Selection /  Factory setting User entry DHCP client Select to activate/deactivate DHCP client • Off functionality. • On Effect If the DHCP client functionality of the web server is selected, the IP address, Subnet mask and Default gateway are set automatically.
  • Page 60 Commissioning Proline Promass P 100 Ethernet/IP 10.4.5 Configuring the low flow cut off The Low flow cut off submenu contains the parameters that must be set in order to configure the low flow cut off. Navigation "Setup" menu → Low flow cut off ‣...
  • Page 61 Proline Promass P 100 Ethernet/IP Commissioning 10.4.6 Configuring partially filled pipe detection The Partially filled pipe detection submenu contains parameters that have to be set for configuring empty pipe detection. Navigation "Setup" menu → Partially filled pipe detection ‣ Partially filled pipe detection Assign process variable →...
  • Page 62 Commissioning Proline Promass P 100 Ethernet/IP 10.5 Advanced settings The Advanced setup submenu with its submenus contains parameters for specific settings. The number of submenus can vary depending on the device version, e.g. viscosity is available only with the Promass I.
  • Page 63 Proline Promass P 100 Ethernet/IP Commissioning Navigation "Setup" menu → Advanced setup → Calculated values ‣ Calculated values ‣ Corrected volume flow calculation →  63 "Corrected volume flow calculation" submenu Navigation "Setup" menu → Advanced setup → Calculated values → Corrected volume flow calculation ‣...
  • Page 64 Commissioning Proline Promass P 100 Ethernet/IP Parameter Prerequisite Description Selection / User Factory setting interface / User entry Reference temperature The Calculated reference Enter reference temperature –273.15 to 99 999 °C Country-specific: density option is selected in for calculating the reference • +20 °C the Corrected volume flow density.
  • Page 65 Proline Promass P 100 Ethernet/IP Commissioning Performing density adjustment Note the following before performing the adjustment: • A density adjustment only makes sense if there is little variation in the operating conditions and the density adjustment is performed under the operating conditions.
  • Page 66 Commissioning Proline Promass P 100 Ethernet/IP 4. Select the Measure density 1 option and confirm.  In the Execute density adjustment parameter the following options are now available: Measure density 2 Restore original 5. Select the Measure density 2 option and confirm.
  • Page 67 Proline Promass P 100 Ethernet/IP Commissioning Parameter Prerequisite Description Selection / User Factory setting entry / User interface Density setpoint 2 In the Density adjustment The entry depends on – mode parameter, the 2 point the unit selected in adjustment option is selected. the Density unit parameter (0555).
  • Page 68 Commissioning Proline Promass P 100 Ethernet/IP Navigation "Setup" menu → Advanced setup → Sensor adjustment → Zero point adjustment ‣ Zero point adjustment Zero point adjustment control →  68 Progress →  68 Parameter overview with brief description Parameter Description Selection / User interface...
  • Page 69 Proline Promass P 100 Ethernet/IP Commissioning Parameter Prerequisite Description Selection Factory setting Totalizer operation mode A process variable is selected Select totalizer calculation • Net flow total – in the Assign process variable mode. • Forward flow total parameter (→  68) of the •...
  • Page 70 Commissioning Proline Promass P 100 Ethernet/IP Simulation device alarm →  70 Simulation diagnostic event →  70 Parameter overview with brief description Parameter Prerequisite Description Selection / User entry Assign simulation process variable – Select a process variable for the • Off simulation process that is activated.
  • Page 71 Proline Promass P 100 Ethernet/IP Commissioning Defining the access code via the web browser 1. Navigate to the Define access code parameter. 2. Define a 16-digit (max.) numeric code as the access code. 3. Enter the access code again in the to confirm.
  • Page 72 Operation Proline Promass P 100 Ethernet/IP Operation 11.1 Read out and modify current Ethernet settings If the Ethernet settings such as the IP address of the measuring device are unknown, they can be read out and modified as explained in the following example for an IP address.
  • Page 73 Proline Promass P 100 Ethernet/IP Operation Navigation "Operation" menu → Locking status Function scope of "Locking status" parameter Options Description Hardware locked The write protection switch (DIP switch) for hardware locking is activated on the I/O electronic module. This prevents write access to the parameters .
  • Page 74 Operation Proline Promass P 100 Ethernet/IP Corrected volume flow →  74 Density →  74 →  74 Reference density Temperature →  75 Pressure →  75 Concentration →  75 →  75 Target mass flow Carrier mass flow →...
  • Page 75 Proline Promass P 100 Ethernet/IP Operation Parameter Prerequisite Description User interface Temperature – Shows the medium temperature Signed floating-point currently measured. number Dependency The unit is taken from: Temperature unit parameter (→  56) Pressure value – Displays either a fixed or external Signed floating-point pressure value.
  • Page 76 Operation Proline Promass P 100 Ethernet/IP Parameter overview with brief description Parameter Prerequisite Description User interface Totalizer value 1 to n One of the following options is selected Displays the current totalizer counter Signed floating-point in the Assign process variable value.
  • Page 77 Proline Promass P 100 Ethernet/IP Operation Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Control Totalizer 1 to n A process variable is selected Control totalizer value. • Totalize – in the Assign process variable •...
  • Page 78 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting 12.1 General troubleshooting For local display Error Possible causes Remedial action Local display is dark, but signal output is within The cable of the display module is not plugged in...
  • Page 79 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting Fault Possible causes Remedial action ‣ Unable to connect to the web server. • The IP address on the PC is incorrectly If addressing via hardware: open the configured. transmitter and check the IP address •...
  • Page 80 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP Color Meaning Device status Green Device status is ok Flashing red A device error of diagnostic behavior "Warning" has occurred A device error of diagnostic behavior "Alarm" has occurred Alternately flashing red/green Boot loader is active...
  • Page 81 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting Symbol Meaning Out of specification The device is being operated: Outside its technical specification limits (e.g. outside the process temperature range) Maintenance required Maintenance is required. The measured value remains valid. The status signals are categorized in accordance with VDI/VDE 2650 and NAMUR Recommendation NE 107.
  • Page 82 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP Xxxxxx/…/…/ Device name: Xxxxxxx Mass flow: kg/h 12.34 Device tag: Xxxxxxx Volume flow: 12.34 m /h ³ Status signal: Function check (C) Xxxxxx Diagnostics 1: C485 Simu... Remedy information: Deactivate... Failure (F)
  • Page 83 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting 2. On the right in the working area, mouse over the parameter.  A tool tip with remedy information for the diagnostic event appears. 12.5 Diagnostic information via communication interface 12.5.1 Reading out diagnostic information...
  • Page 84 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP 12.7.1 Diagnostic of sensor Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 022 Sensor temperature 1. Change main electronic module • 0x10000BE 2. Change sensor • 0x10000BF • 0x10000D5 Status signal •...
  • Page 85 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 144 Measuring error too high 1. Check process conditions 0x10001C7 2. Check or change sensor Status signal Diagnostic behavior Alarm Diagnostic information...
  • Page 86 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 252 Modules incompatible 1. Check electronic modules 0x100006B 2. Change electronic modules Status signal Diagnostic behavior Alarm Diagnostic information Remedy instructions...
  • Page 87 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 274 Main electronic failure Change electronic • 0x80000CE • 0x80000CF Status signal Diagnostic behavior Warning Diagnostic information Remedy instructions Coding of diagnostic...
  • Page 88 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 390 Special event 2 Contact service 0x1000112 Status signal Diagnostic behavior Alarm Diagnostic information Remedy instructions Coding of diagnostic information (hex)
  • Page 89 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 438 Dataset 1. Check data set file 0x400006A 2. Check device configuration 3. Up- and download new Status signal configuration Diagnostic behavior...
  • Page 90 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 590 Special event 3 Contact service 0x1000124 Status signal Diagnostic behavior Alarm Diagnostic information Remedy instructions Coding of diagnostic information (hex)
  • Page 91 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 831 Sensor temperature too low Increase ambient temp. around the 0x80000C2 sensor housing Status signal Diagnostic behavior Warning Diagnostic information Remedy instructions...
  • Page 92 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 842 Process limit Low flow cut off active! 0x8000091 1. Check low flow cut off configuration Status signal Diagnostic behavior Warning...
  • Page 93 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 912 Inhomogeneous 1. Check process cond. • 0x8000115 2. Increase system pressure • 0x8000162 Status signal Diagnostic behavior Warning Diagnostic information...
  • Page 94 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP Diagnostic information Remedy instructions Coding of diagnostic information (hex) Short text 992 Special event 12 Contact service 0x100011F Status signal Diagnostic behavior [from the Alarm factory] Diagnostic behavior can be changed. 12.8...
  • Page 95 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting Parameter Prerequisite Description User interface Operating time from restart – Shows the time the device has been in Days (d), hours (h), operation since the last device restart. minutes (m) and seconds Operating time –...
  • Page 96 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP Filter categories • All • Failure (F) • Function check (C) • Out of specification (S) • Maintenance required (M) • Information (I) 12.10.3 Overview of information events Unlike a diagnostic event, an information event is displayed in the event logbook only and not in the diagnostic list.
  • Page 97 Proline Promass P 100 Ethernet/IP Diagnostics and troubleshooting Info number Info name I1459 Failed: I/O module verification I1460 Failed: Sensor integrity verification I1461 Failed: Sensor verification I1462 Failed:Sensor electronic module verific. 12.11 Resetting the measuring device The entire device configuration or some of the configuration can be reset to a defined state with the Device reset parameter (→...
  • Page 98 Diagnostics and troubleshooting Proline Promass P 100 Ethernet/IP ENP version →  98 IP address Subnet mask Default gateway Parameter overview with brief description Parameter Description User interface Factory setting Device tag Shows name of measuring point. Max. 32 characters, such as –...
  • Page 99 "Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: •...
  • Page 100 Observe the inside diameter of the measuring tube and process connection. 13.2 Measuring and test equipment Endress+Hauser offers a variety of measuring and testing equipment, such as Netilion or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services.
  • Page 101 • The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory.
  • Page 102 Repair Proline Promass P 100 Ethernet/IP 14.5 Disposal If required by the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste.
  • Page 103 Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
  • Page 104 Via the Internet: https://portal.endress.com/webapp/applicator Netilion lloT ecosystem: Unlock knowledge With the Netilion IIoT ecosystem,Endress+Hauser allows you to optimize your plant performance, digitize workflows, share knowledge, and enhance collaboration. Drawing upon decades of experience in process automation, Endress+Hauser offers the process industry an IIoT ecosystem designed to effortlessly extract insights from data.
  • Page 105 Proline Promass P 100 Ethernet/IP Accessories 15.4 System components Accessories Description Memograph M graphic The Memograph M graphic data manager provides information on all the relevant data manager measured variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on a SD card or USB stick.
  • Page 106 Technical data Proline Promass P 100 Ethernet/IP Technical data 16.1 Application The measuring device is intended only for the flow measurement of liquids. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media.
  • Page 107 • Operating pressure to increase measurement accuracy (Endress+Hauser recommends the use of a pressure measuring instrument for absolute pressure, e.g. Cerabar M or Cerabar S) •...
  • Page 108 Technical data Proline Promass P 100 Ethernet/IP 16.4 Output Output signal EtherNet/IP Standards In accordance with IEEE 802.3 Signal on alarm Depending on the interface, failure information is displayed as follows. EtherNet/IP Device diagnostics Device condition can be read out in Input Assembly...
  • Page 109 Proline Promass P 100 Ethernet/IP Technical data Protocol-specific data protocol-specific data Protocol • The CIP Networks Library Volume 1: Common Industrial Protocol • The CIP Networks Library Volume 2: Ethernet/IP Adaptation of CIP Communication type • 10Base-T • 100Base-TX Device profile...
  • Page 110 Technical data Proline Promass P 100 Ethernet/IP Input Assembly • Current device diagnostics • Mass flow • Volume flow • Corrected volume flow • Density • Reference density • Temperature • Totalizer 1 • Totalizer 2 • Totalizer 3 Configurable Input...
  • Page 111 Proline Promass P 100 Ethernet/IP Technical data Configuration Configuration Assembly Only the most common configurations are listed below. • Software write protection • Mass flow unit • Mass unit • Volume flow unit • Volume unit • Corrected volume flow unit •...
  • Page 112 Technical data Proline Promass P 100 Ethernet/IP Power supply failure • Totalizers stop at the last value measured. • Depending on the device version, the configuration is retained in the device memory or in the pluggable data memory (HistoROM DAT).
  • Page 113 Proline Promass P 100 Ethernet/IP Technical data Temperature ±0.5 °C ± 0.005 · T °C (±0.9 °F ± 0.003 · (T – 32) °F) Zero point stability Zero point stability [mm] [in] [kg/h] [lb/min] ³⁄₈ 0.20 0.007 ½ 0.65 0.024 1.80...
  • Page 114 Technical data Proline Promass P 100 Ethernet/IP Mass flow and volume flow (liquids) ±0.05 % o.r. Density (liquids) ±0.00025 g/cm Temperature ±0.25 °C ± 0.0025 · T °C (±0.45 °F ± 0.0015 · (T–32) °F) Response time The response time depends on the configuration (damping).
  • Page 115 Proline Promass P 100 Ethernet/IP Technical data Influence of medium The following shows how the process pressure (gauge pressure) affects the accuracy of the pressure mass flow. o.r. = of reading It is possible to compensate for the effect by: •...
  • Page 116 Technical data Proline Promass P 100 Ethernet/IP Example of maximum measurement error E [%] 100 Q [%] A0030317 Maximum measurement error in % o.r. (example) Flow rate in % of maximum full scale value 16.7 Mounting Mounting requirements →  18 16.8...
  • Page 117 Proline Promass P 100 Ethernet/IP Technical data Shock half-sine, according to IEC 60068-2-27 6 ms 30 g Rough handling shocks according to IEC 60068-2-31 Internal cleaning • CIP cleaning • SIP cleaning • Cleaning with pigs Options Oil- and grease-free version for wetted parts, without declaration Order code for "Service", option HA...
  • Page 118 Technical data Proline Promass P 100 Ethernet/IP If a device fitted with purge connections (order code for "Sensor option", option CH "Purge connection") is connected to the purge system, the maximum pressure is determined by the purge system itself or by the device, depending on which component has the lower pressure classification.
  • Page 119 Proline Promass P 100 Ethernet/IP Technical data 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section Weight All values (weight exclusive of packaging material) refer to devices with EN/DIN PN 40 flanges.
  • Page 120 Technical data Proline Promass P 100 Ethernet/IP Cable entries/cable glands A0020640  14 Possible cable entries/cable glands Female thread M20 × 1.5 Cable gland M20 × 1.5 Adapter for cable entry with female thread G ½" or NPT ½" Order code for "Housing", option A "Compact, aluminum, coated"...
  • Page 121 Proline Promass P 100 Ethernet/IP Technical data Process connections • Flanges according to EN 1092-1 (DIN 2501) / according to ASME B16.5 / according to JIS B2220: Stainless steel, 1.4404 (F316/F316L) • All other process connections: Stainless steel, 1.4435 BN2 (316L) Available process connections→...
  • Page 122 Technical data Proline Promass P 100 Ethernet/IP Surface roughness All data refer to parts in contact with the medium. The following surface roughness categories can be ordered: Category Method Option(s) order code "Measuring tube mat., wetted surface" Ra ≤ 0.76 µm (30 µin)
  • Page 123 Proline Promass P 100 Ethernet/IP Technical data Star topology A0032078  15 Options for remote operation via EtherNet/IP network: star topology Automation system, e.g. "RSLogix" (Rockwell Automation) Workstation for measuring device operation: with Custom Add-On Profile for "RSLogix 5000" (Rockwell Automation) or with Electronic Data Sheet (EDS) Computer with Web browser (e.g.
  • Page 124 The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. UKCA marking The device meets the legal requirements of the applicable UK regulations (Statutory Instruments).
  • Page 125 Directive a) PED/G1/x (x = category) or b) PESR/G1/x (x = category) on the sensor nameplate, Endress+Hauser confirms compliance with the "Essential Safety Requirements" a) specified in Annex I of the Pressure Equipment Directive 2014/68/EU or b) Schedule 2 of Statutory Instruments 2016 No. 1105.
  • Page 126 The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
  • Page 127 For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Standard documentation Brief Operating instructions...
  • Page 128 Technical data Proline Promass P 100 Ethernet/IP Supplementary device- Safety Instructions dependent documentation Content Documentation code ATEX/IECEx Ex i XA00159D ATEX/IECEx Ex nA XA01029D cCSAus IS XA00160D INMETRO Ex i XA01219D INMETRO Ex nA XA01220D NEPSI Ex i XA01249D NEPSI Ex nA...
  • Page 129 Proline Promass P 100 Ethernet/IP Index Index 0 … 9 Design fundamentals Measurement error ..... . 115 3-A approval ......124 Repeatability .
  • Page 130 Index Proline Promass P 100 Ethernet/IP Error messages Installation point ......18 see Diagnostic messages Intended use .
  • Page 131 Proline Promass P 100 Ethernet/IP Index Vibrations ......22 Pressure Equipment Directive ....125 Mounting tools .
  • Page 132 Index Proline Promass P 100 Ethernet/IP Spare parts ....... 101 Thermal insulation .
  • Page 134 *71674307* 71674307 www.addresses.endress.com...
