- Page 1 YEAR WARRANTY Must register at: www.nexxtsolutions.com/infrastructure/warranty/...
- Page 2 . All of the photos and product specifications mentioned in this manual are used as • Please do not place the switch near water or damp places and prevent water or moisture reference only. Upgrades of software and hardware may occur, and should there be any changes, Nexxt from entering the switch housing.
- Page 3 Nexxt Solutions - 24-port Gigabit rack mountable switch Nexxt Solutions - 24-port Gigabit rack mountable switch 1.1 Highlights • 24 auto-sensing 10/100/1000 Mbps ports switch. • Supports auto MDI/MDIX. • Automatic polarity switching Fast Ethernet RJ-45 ports. • Supports store-and-forward switching technology.

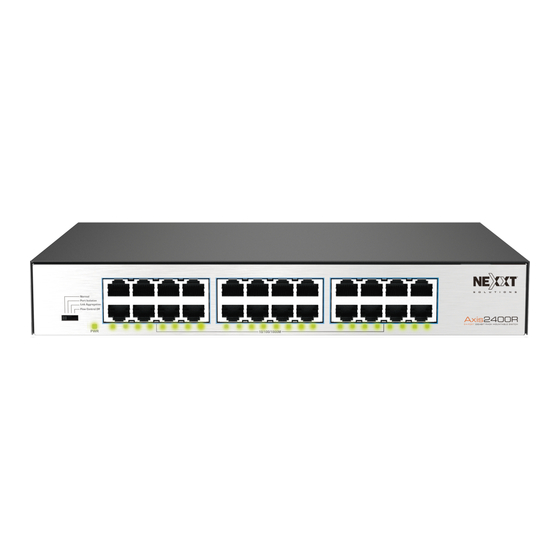

- Page 4 Nexxt Solutions - 24-port Gigabit rack mountable switch Nexxt Solutions - 24-port Gigabit rack mountable switch 1.3 Front and rear panel overview Front view The front panel features twenty-four 10/100/1000 Mbps UTP ports, with the corresponding number of lights to display the activity on each one, plus one indicator light for power.
- Page 5 Nexxt Solutions - 24-port Gigabit rack mountable switch Nexxt Solutions - 24-port Gigabit rack mountable switch 2.2.2 Installation in a standard 19-inch rack 2. Installation 2.1 Preliminary steps Read and make sure to comply with the safety instructions detailed below before connecting the device into your network.
- Page 6 Nexxt Solutions - 24-port Gigabit rack mountable switch Nexxt Solutions - 24-port Gigabit rack mountable switch 2.4 Connecting the AC power cord to the switch power module and powering the switch 3. Connect the switch to the network Use ethernet cables to connect the switch to network devices, such as a PC with a NIC port (Network Interface...
- Page 7 Nexxt Solutions - 24-port Gigabit rack mountable switch Nexxt Solutions - 24-port Gigabit rack mountable switch Specifications NSW-A2400UR Hardware features Ethernet Chipset EN8853D+2*EN8808Q，Airoha Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Port interface (24GE) 10/100/1000 Mbps Network media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- Page 8 The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Nexxt Solutions™ is a registered trademark. All rights reserved. All other brand names and trademarks are the property of their respective owners. Made in China.
