Summary of Contents for Nexxt ASFRM244U2
-
Page 2: Copyright Statement
Solutions Ltd. No individual or third party is allowed to copy, plagiarize, reproduce, or translate it into other languages, without express consent from Nexxt Solutions, Ltd. All of the photos and product specifications mentioned in this manual are used as reference only. Upgrades of software and hardware may occur, and should there be any changes, Nexxt Solutions shall not be responsible for notifying about any such modifications in advance. -
Page 3: Installation

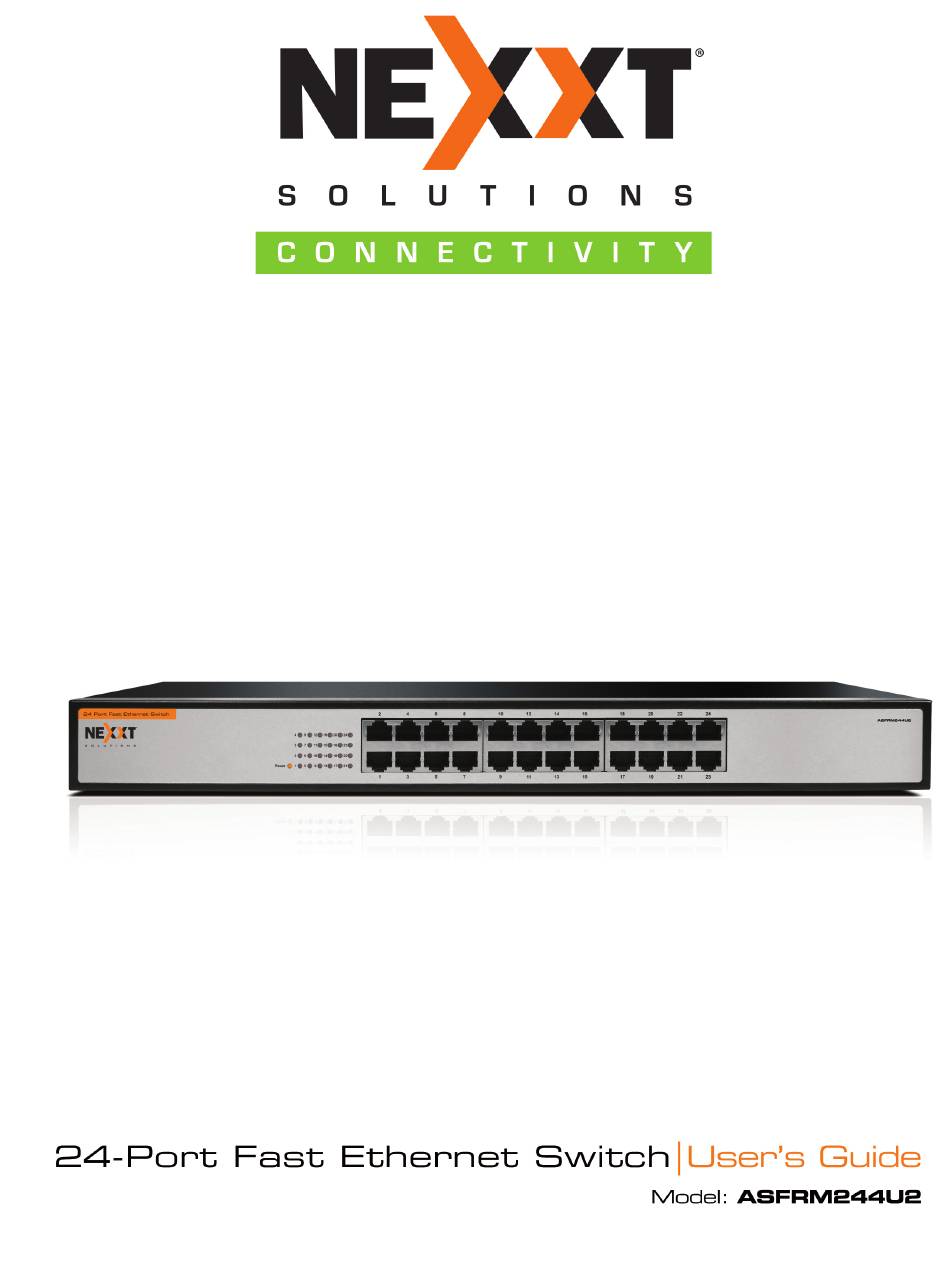

Nexxt Solutions - 24-Port Fast Ethernet Switch 24-Port Fast Ethernet Switch 1. Introduction Switch features Package contents Front and rear panel specifications LED indicator definitions 2. Installation Preliminary steps Installation procedure Application 3. Product specifications... - Page 4 It features 24 UTP/STP RJ-45 ports with auto MDI/MDIX, which can operate at 10/100 Mbps. By integrating the ASFRM244U2 switch into your network, the speed and network efficiency will be significantly enhanced. Its standard 19-inch rack-mountable case along with its improved transmission rates make it the ideal choice for small and medium sized networks.
-
Page 5: Switch Features
Nexxt Solutions - 24-Port Fast Ethernet Switch 1.1 Switch features Complies with IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX fast Ethernet • standards. Supports IEEE802.3x flow control for full-duplex mode, and backpressure flow control for • half-duplex mode. 24 RJ-45 ports, supporting 802.3 NWAY auto-negotiation capabilities. -
Page 6: Led Definitions
Nexxt Solutions - 24-Port Fast Ethernet Switch Rear panel view of the switch Notice: Please use the supplied power adapter only. The use of any other adapter may damage the unit and void the warranty . 1.4 LED Definitions LED indicators provide information about the connection and Link/ACT status of the switch. -
Page 7: Installation Procedure
Nexxt Solutions - 24-Port Fast Ethernet Switch 2. Installation 2.1 Preliminary steps Observe the safety instructions detailed below before connecting the device into your network: Select a location with adequate ventilation all around the unit. • Place the switch on a secure, stable and clean surface. - Page 8 Nexxt Solutions - 24-Port Fast Ethernet Switch 2. Installation in a standard 19-inch rack To install the mounting brackets on the switch, follow the steps described below. First, make sure the rack is properly secured, stable and strong enough to support the weight •...
- Page 9 Nexxt Solutions - 24-Port Fast Ethernet Switch 2.3 Application Use a standard Ethernet cable to connect the switch to the network devices, as illustrated below. Switch ports will automatically adjust to the characteristics (MDI-II/MDI-X, speed, duplex) of the device that is connected.
-
Page 10: Specifications
Nexxt Solutions - 24-Port Fast Ethernet Switch 3. Specifications Features IEEE802.3 10BASE-T Ethernet Standards IEEE802.3u 100BASE-TX Fast Ethernet CSMA/CD Ethernet Protocol Ethernet: 10Mbps （ half-duplex） 20Mbps （ full-duplex） Data transmission rate Fast Ethernet: 100Mbps (half-duplex) 200Mbps (full-duplex) Star Topological structure 10Base-T: Cat.3 UTP or above (100m)
