Summary of Contents for Nexxt Vertex900+

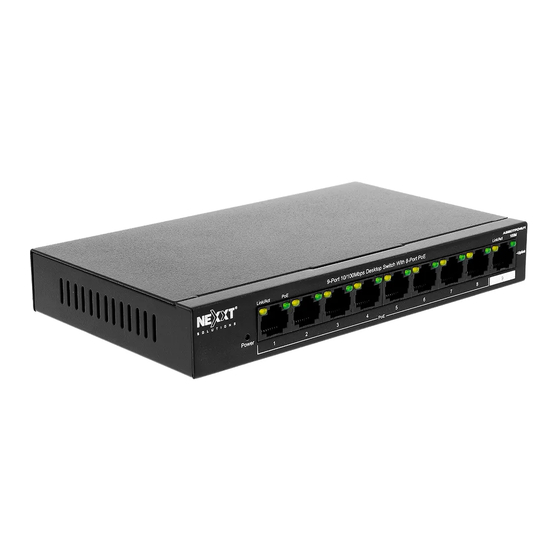

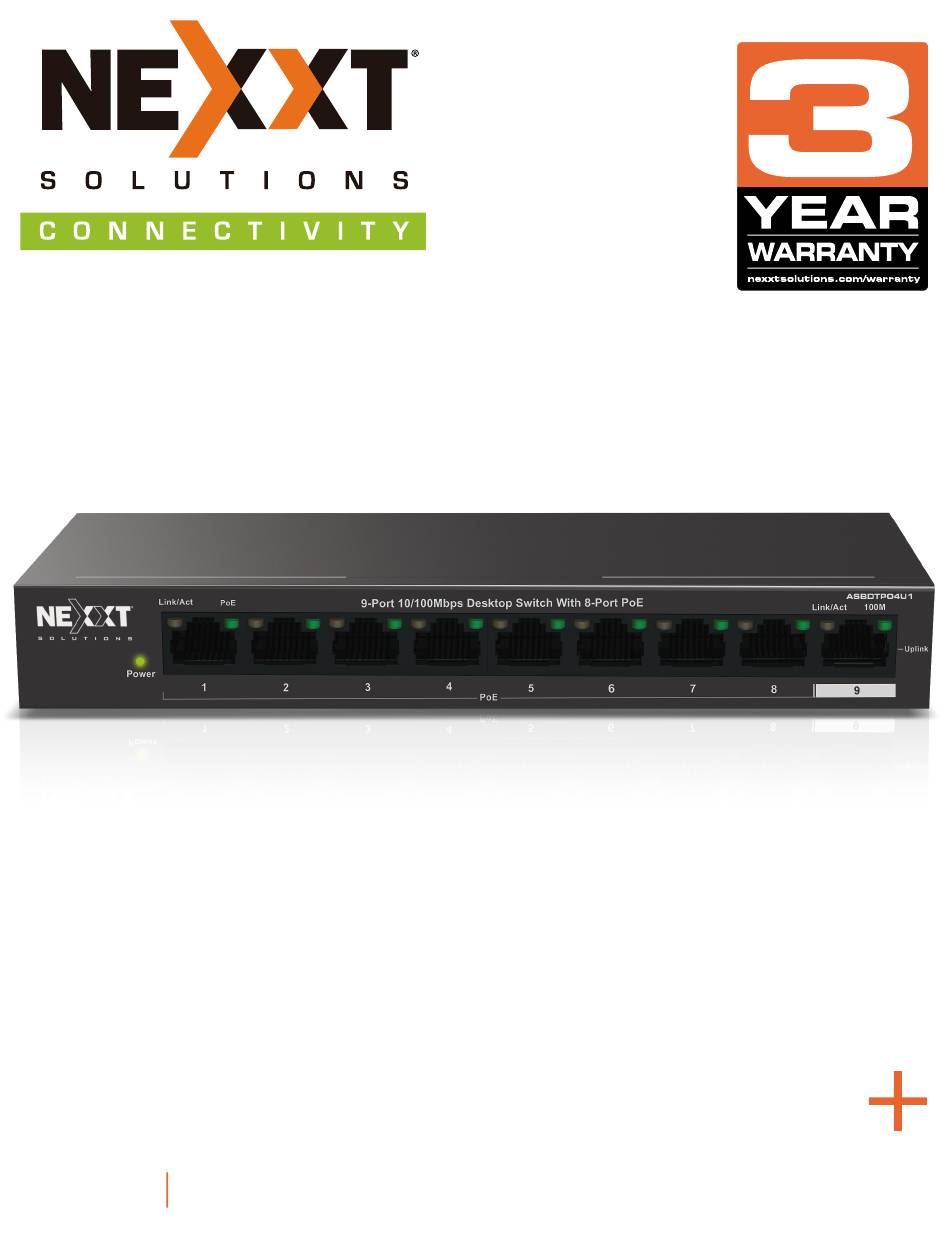

- Page 1 Vertex900 9-PORT POE+ FAST ETHERNET DESKTOP SWITCH Model: ASBDTP04U1...
- Page 2 Solutions Ltd. No individual or third party is allowed to copy, plagiarize, reproduce, or trans- late it into other languages, without express consent from Nexxt Solutions, Ltd. All of the photos and product specifications mentioned in this manual are used as reference only.
- Page 3 Nexxt Solutions - 9 port PoE switch Nexxt Solutions - 9 port PoE switch 1.1 Highlights • 9-port 10/100Mbps switch • Up to 8 IEEE 802.3af/802.3at ports • 58W maximum PoE budget • 1.8Gbps backplane bandwidth • Extender mode with up to 820ft transmission distance •...
- Page 4 Nexxt Solutions - 9 port PoE switch Nexxt Solutions - 9 port PoE switch Ports/Switch/Interfaces Rear panel overview Description Port Type On the rear panel, there is the AC power jack with the input range marked in the device. Used to transmit data and provide power to the...
- Page 5 Nexxt Solutions - 9 port PoE switch Nexxt Solutions - 9 port PoE switch 3. Technical specifications 2.2 Connection of the switch ASBDTPO4U1 Hardware features Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE 802.3af, IEEE 802.3at Internet Ports and interface...
- Page 6 Nexxt Solutions - 9 port PoE switch Nexxt Solutions - 9 port PoE switch FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasona- ble protection against harmful interference in a residential installation.
