- Page 1 Instruction Manual Research Use Only FastPrep-96™ Pro Cat. No.: 116014500 Content Version: November 2024 www.mpbio.com...
- Page 2 Table of Contents Product Introduction ................3 Packing List ..................... 5 Safety Precautions .................. 6 Installation ....................7 Power and User Interface ..............10 Safety Features ..................14 Step-by-Step Operating Instructions ............ 16 Maintenance & Cleaning ............... 18 Troubleshooting ..................20 10.

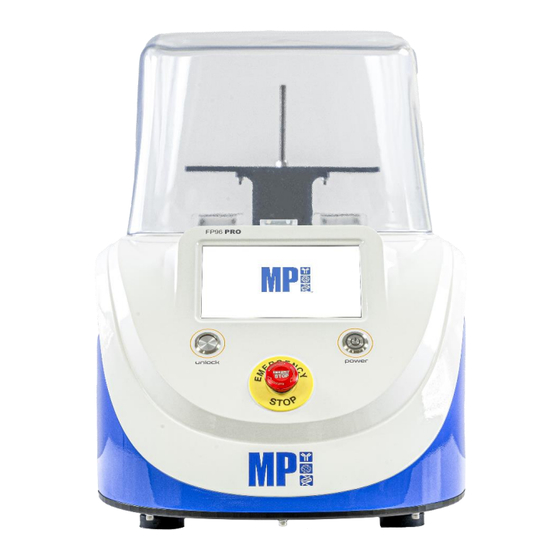

- Page 3 FastPrep-96 1. Product Introduction MP Biomedicals' FastPrep-96™ Pro is a versatile, high-speed homogenizer for high- throughput sample preparation. Using rapid linear motion, even tough samples are thoroughly homogenized within seconds. When paired with specialized Lysing Matrix beads, this system saves time and delivers high yields of intact DNA, RNA, proteins, and other metabolites.
- Page 4 1.2 Technical Specifications FastPrep-96™ Pro (Cat. No. 116014500) Motion Vertical linear Sample Capacity Up to 96 Adapters Interchangeable Tube Compatibility 2 mL, 4.5 mL, 5 mL, 15 mL, 50 mL, 250 mL, 96-well plate Interface Touch screen / industrial buttons Min speed 800 revolutions per minute (RPM) Max Speed...
- Page 5 Metal QuickFlex™ Adapter 96 x 2 mL tubes 116010575 Blue Clickmaster, Ratchet Nut 116004525 Power Cord with Universal Plug Quick Reference Guide Note: For any damage or missing components, contact our authorized agent or MP Biomedicals directly for assistance. www.mpbio.com...
- Page 6 3. Safety Precautions Please read the entire instruction manual before operating the FastPrep-96™Pro. 1. Keep this manual for reference. 2. Professionals are required to operate the instrument. 3. Use the instrument only with the original power adapter. 4. When operating the instrument, the operator must wear appropriate protective gear to shield their body, hair, and clothing from toxic liquids and solids that may be ejected.
- Page 7 FastPrep-96 4. Installation Unlocking the Ratchet Strap Carefully remove the FastPrep-96™ Pro from the shipping crate by following these steps: 1. Set the packaging box on a flat surface. Inspect for any damages around the box. 2. Pull and release the lever to unlock the ratchet strap. 3.
- Page 8 4. Slide the loose end of the strap out of the ratchet assembly. Unwrap and remove the strap from the instrument. 4.2 Unpacking 1. Remove the top cover of the packaging box. 2. Remove the side sleeve and the foam of the packaging box. www.mpbio.com...
- Page 9 FastPrep-96 3. With two people, each should place their hands on opposite sides of the machine, positioning one hand at the bottom and the other at the side. Lift together carefully and place the machine on a stable, clean table. Ensure proper communication during lifting to avoid injury.
- Page 10 5. Power and User Interface Power on/off Ensure that the machine power is off when not in use. Power Switch Instructions 1. Ensure the machine is placed on a clean stable flat surface before connecting the power plug. 2. Locate the power switch at the back of the machine. 3.
- Page 11 FastPrep-96 Graphical User Interface The FastPrep-96™ Pro uses two screens during operation: Program Screen and Run Screen. Program Screen The Program Screen displays when the machine is at rest. In this mode, the graphical user interface (GUI) allows the user to program the instrument in the following manner: 1.
- Page 12 Running Screen The Running Screen displays when the machine is actively homogenizing the samples. In addition to displaying real-time information about the run’s status, the GUI allows for the following interaction: 7. Stop button: Press the "STOP" button to abort the operation at any time, whether the FastPrep-96™...
- Page 13 FastPrep-96 Machine Interface 8. Unlock Button: The mechanical manual unlock button is used to open the dome in the event of power failure. 9. Power Button: The machine's power button can only be switched on after the rear power switch is turned on. 10.
- Page 14 6. Safety Features Emergency Stop Button The emergency stop button is a critical safety feature designed to immediately halt the machine’s operation in case of an emergency. It helps prevent accidents, injuries, and equipment damage. Pressing the emergency stop button will immediately cut the power to the machine’s motor driver systems, halting all motion and operations.
- Page 15 FastPrep-96 Dome Safety The dome opening mechanism serves as a safety feature to automatically stop the motor and halt machine operations, ensuring operator safety and preventing accidents. • Before Operation: The machine will function only when the dome is securely closed and locked.
- Page 16 7. Step-by-Step Operating Instructions Read this manual carefully and follow the safety guidelines before operating the instrument. Press the “OPEN” button on the touch screen to unlock the dome. Gently lift the dome to the open position. Load 2 mL tubes into the Metal QuickPrep™ adapter. Engage the Blue Clickmaster onto the adapter rod and turn it clockwise until “Ka Ka Ka”...
- Page 17 FastPrep-96 Close the dome down slowly until the electromechanical lock clicks, securing the dome in place. DO NOT SLAM the dome onto the machine! Set the run parameters as described in section 5.2 Graphical User Interface. Once all the parameters are selected, press “START” to begin the operation. The machine will complete the operation once the preset time has elapsed.
- Page 18 8. Maintenance & Cleaning Maintenance: To ensure the longest lasting performance, an onsite maintenance package may be purchased from MP Biomedicals. Fuse Replacement: Caution: Disconnect the power supply before replacing the fuse. To maintain fire protection, replace the fuse only with the specified type and rating: 10 Amp (T10AL250V). Two extra fuses are provided with the accessories.
- Page 19 24 hours before attempting to reuse it. If the instrument does not function properly after this drying period, please contact MP Biomedicals for assistance. Warning: Operators must not use tools to access any parts that may pose a hazard during normal operation.
- Page 20 9. Troubleshooting Refer to the table below for troubleshooting any malfunctions. If the issue persists, please contact MP Biomedicals or your sales representative for assistance. Error Causes Solution Remove the power cord from the Power is disconnected. AC receptacle and reconnect it.
- Page 21 FastPrep-96 10. Accessories & Spare Parts Description Cat. No. Blue Clickmaster, Ratchet Nut for FastPrep 116004525 Metal QuickFlex adapter for 96 x 2 mL tubes on FastPrep-96 116010575 Metal Dual Plate Holder Assembly for FastPrep-96 119696169 Metal LargeFlex adapter 2 x 250 mL tube holder on FastPrep-96 Metal BigFlex adapter for 8 x 50 mL tube holder for FastPrep-96 Metal TeenFlex adapter for 20 x 15 mL tube holder on FastPrep-96 Metal TallFlex adapter for 48 x 5 mL tube holder on FastPrep-96...
- Page 22 MP Biomedicals will not be liable for any indirect or consequential damages, including but not limited to lost profits or loss of products. Your MP Biomedicals Sales Office can assist with comprehensive site preparation information before equipment arrival. Printed instruction manuals provide detailed guidance on equipment installation, operation, and preventive maintenance.
- Page 23 New Zealand Australia Tel: +64 9.912.2460 Tel: +61 2.8824.2100 Email: cu stserv.nz@mpbio.com Tel: +61 1800.249.998 Email: custserv.au@mpbio.com North America Austria & Germany Tel: +1 800.854.0530 Tel: 0800.426.67.337 Tel: +1 440.337.1200 Tel: 00800.7777.9999 Email: custserv.na@mpbio.com Email: custserv.de@mpbio.com Poland Belgium Tel: 00800.7777.9999 Tel: 00800.7777.9999 Email: custserv .po@mpbio.com Email: custser v.be@mpbio.com...
