CMB100 DEV KIT
Quick Start Guide
This Quick Start Guide will walk you through the essential steps
for setting up and configuring your CMB100. The CMB100
module evaluation board is available in two variants:
•
CMB100-A featuring a Cat. 4 module.
CMB100-C featuring a Cat. M module.
•
The CMB100 is a small board 36mmx30 that contains the following
parts:

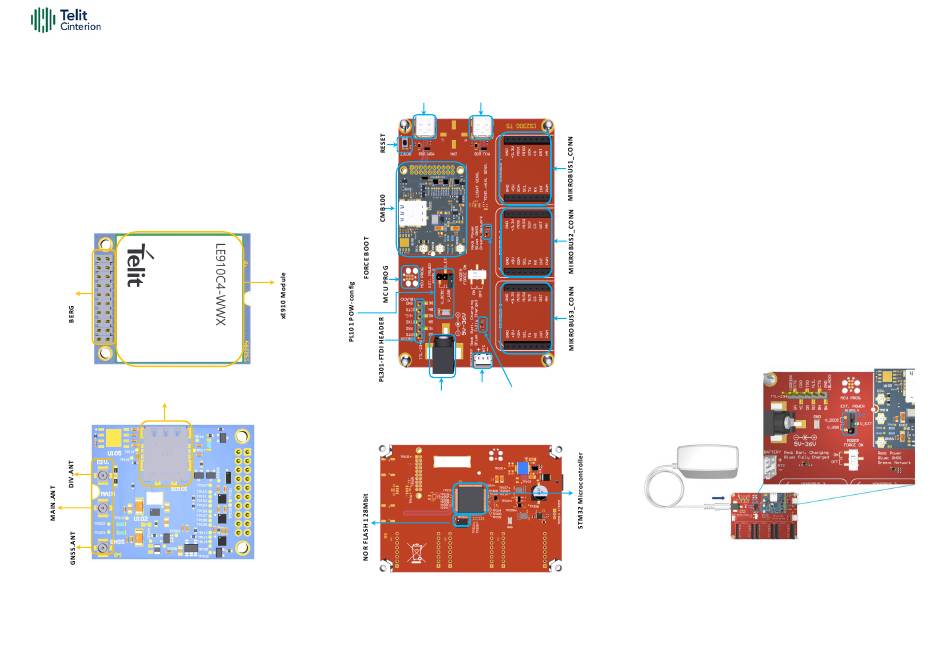

Figure 1: CMB100 – TOP SIDE
SIM HOLDER
Figure 2: CMB100 - BOTTOM-SIDE
1VV0301974 Rev.1
The DEV Kit supports various CMB100 module options and
enables network connectivity, firmware upgrades, and
development with the on-board STM32 microcontroller.
USB - MCU
USB - MODEM
BATT-CONN
STAT-LED
DC- Power
Jack
Figure 3: CMB100 DEV KIT – TOP SIDE
Figure 4: CMB100 DEV KIT – BOTTOM SIDE
Page 1 of 3
CMB100 DEV KIT Quick Start Guide
1.1 Kit Contents
DEV KIT Quick Start Guide (this document)
•
DEV KIT Evaluation Board
•
4 x rubber feet "1HH1000113RI"
•
3x UFL ADAPTERS "761-9881"
•
2x "1RR0100113TLB" Antenna Main/Div
•
1x "1RR0100212TJA" GPS Antenna
•
1x USB Type C cable
•
1
Power Supply and operating ways
The CMB100 DEV KIT provides users with five power input options:
DC Adapter
•
Battery Mode
•
USB-MODEM or USB-MCU
•
External power supply
•
DC Adapter
Any DC voltage from 5 to 36V can power the CMB100DK and
CMB100. Ensure that PIN 1 and PIN 2 are shorted (connect
V_DCDC to V_EXT on the external power supply).
Figure 5: power supply – DC Adapter
Copyright © 2024 Telit Cinterion. All rights reserved.
2024-08-19
