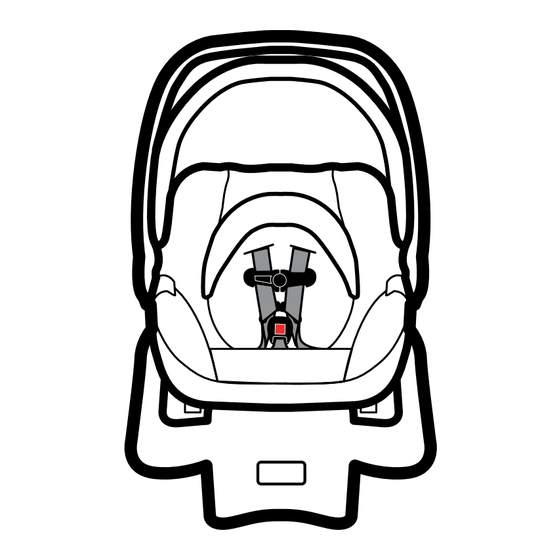

Cosco LIGHT 'N COMFY 22 Instruction Manual

Infant car seat

Hide thumbs

page of 32

/ 32
Bookmarks

Quick Links

Download this manual

4358-8069A

9.12.22

SIMPLE

SMART

FUN

LIGHT 'N COMFY

LIGHT 'N COMFY 22

INFANT CAR SEAT

KEEP INSTRUCTIONS FOR FUTURE USE.

Read all instructions before using this car seat.

www.coscokids.com

WARNING

Failure to follow the warnings on the

labels and in the instruction manual can result in

serious injury or death to your child.

Need help?

Do you have a question about the LIGHT 'N COMFY 22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cosco LIGHT 'N COMFY 22

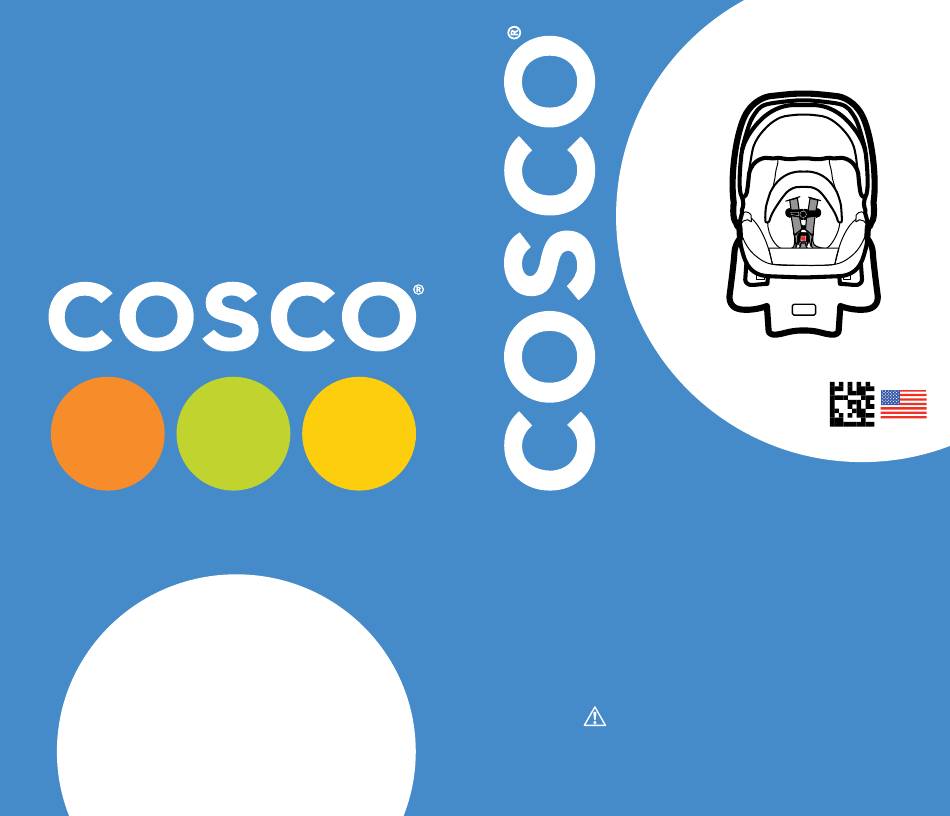

Page 1 4358-8069A 9.12.22 SIMPLE SMART LIGHT ‘N COMFY LIGHT ‘N COMFY 22 INFANT CAR SEAT KEEP INSTRUCTIONS FOR FUTURE USE. Read all instructions before using this car seat. www.coscokids.com WARNING Failure to follow the warnings on the labels and in the instruction manual can result in serious injury or death to your child.
Page 2 Overview Quick Navigation Welcome to the Cosco family and thank you for choosing REAR-FACING this car seat, also known as a child restraint! 4-22 lb (1.8-10 kg) and To help you get started using your child’s new car seat, here are the 4 main tasks you’ll need to complete: 29 in.
Page 3 Contents Getting Started Wash & Care of Car Seat Parts Parts of Car Seat ..............Removing Harness System ........... Accessory Use ..............Removing Seat Pad Set for Cleaning ........Rear-Facing Use Requirements ......... Cleaning Parts of Car Seat and Installing Seat Pad Set ..
Page 4 Parts of Car Seat Base Carry Release Harness Handle Handle Adjustment Brackets Canopy Harness Stroller Strap Infant Attachment Insert* Pins Vehicle Belt Path Guide (when used Buckle’s without the Metal Instruction base) Retainer Manual Storage Base Base Belt Adjustable Path Base Lock Bars LATCH:...
Page 5 Accessory Use Rear-Facing Use Requirements Measure your child’s weight and height Basic Infant Insert (do not guess) before choosing the car seat’s mode. When using the infant insert, make sure Your child’s height, weight, and age determine how the car seat should it does not cover your infant’s face in any be placed in the vehicle.
Page 6 Preparing Car Seat for Child Fit Rear-Facing Child Fit Fully Loosen Harness Straps Head Position From the back of the child restraint, The top of your child’s head must be loosen the free end of the harness at least 1 in. (2.5 cm) below the top from the harness adjustment bracket of the car seat.
Page 7 Changing Harness Strap Position From Back of Car Seat, Rethread Harness Remove Free Ends of Harness Straps Into Brackets Straps from Brackets From the back of child restraint, thread one harness end onto one adjustment bracket by threading loose end over lower bar, behind the locking teeth and up between upper teeth and top of bracket.
Page 8 Changing Buckle Position Unbuckle Harness From Top of Car Seat, Pull Buckle Out of Shell and Pad Press in on the red button and pull out buckle tongues. Buckle Tongue Turn Car Seat Over Insert Buckle’s Metal Retainer into Buckle Slot Closest to Locate the buckle’s metal retainer Child on the bottom of the shell.
Page 9 Harness System Adjustments for Smaller Infants Check Buckle If you cannot achieve a snug harness fit for your child, Pull up on the buckle to make sure it you may need to adjust the buckle strap length is secured. as shown in this section. The buckle must not pull out.
Page 10 Removing and Installing Car Seat to Base To Remove Car Seat from Base From Top of Car Seat, From the back of the car seat, slide the Lay Metal Retainer Flat base release handle up and lift the car Against Shell As Shown seat out of the base.
Page 11 Base Use Canopy Use Depending on your model, the base may have a foot. Follow the directions below if your model has the foot. To Lower Base Foot Canopy (fabric) Push in on the foot release button and pull the foot all the way down. Canopy Hoop (plastic strip) To Adjust Canopy...
Page 12 Carrier Use To Remove Canopy To Adjust Carry Handle Squeeze both adjustment buttons on each Undo Fastening Strip on Back side of the carry handle. of Shell Rotate up or down to desired location. Release buttons. Make sure both carry handle adjuster buttons are in the locked position.
Page 13 Securing Child in Car Seat Place Child in Car Seat Tighten Harness Your child’s bottom and back should From the back, push harness har- be flat against the car seat. ness strap up into bracket and then Position the harness straps over your pull free end to remove the slack.
Page 14 LATCH: Lower Anchor Use Finished! Your child is now secured in the car seat. Check your child’s fit often and make any needed adjustments to the car seat as they grow. LATCH: Lower Anchor Bars Vehicle Seat Bight To Remove Child from Car Seat: Your vehicle’s features may be considerably different 1.
Page 15 Vehicle Belts Adjuster Lower Anchor Hooks Lower Anchor Belt Lower Anchor Lap/Shoulder Belts Storage Attachments Belt Parts To Remove Lower Anchor Belt from Storage Attachment on Base Squeeze the spring lever on the hooks and remove the hooks from the storage attachments.
Page 16 Types of Retractors You Must Review Your Switchable Retractor Vehicle Owner’s Manual (most vehicles have this type) Your vehicle owner’s manual will let you know which vehicle belts and This retractor can be switched to a locking mode. seating positions car seats can be installed in.
Page 17 Rear-Facing Use with Base 4-22 lb (1.8-10 kg) and 29 in. (74 cm) Check Latch Plates or less in height Latch plates are the part of the seat belt that goes into the buckle. To see if the latch plate locks: 1.
Page 18 Vehicle Belt Install Check if Your Vehicle Belts Will Before you begin installing the car seat Work With This Car Seat into your vehicle, did you check: This is very important because not all vehicle belts will work with car seats.
Page 19 Check Belt Tightness Check Level Line Rear-Facing Hold the base at the Redo the installation if the base is Belt Path with your weaker hand. not reclined correctly. Push and pull the base from side to Adjust the base if needed, see page side.
Page 20 LATCH: Lower Anchor Belt Install LATCH: Lower Anchor Install Place Base Rear-Facing Before you begin installing the car seat in Back Seat into your vehicle, did you check: Center the base between the vehicle’s lower anchors in the chosen seating position. Your child’s weight and height? See page 4.
Page 21 Check Level Line Check Belt Tightness Rear-Facing Redo the installation if the base is Hold the base at the Belt Path not reclined correctly. with your weaker hand. Push and pull the base from side to Adjust the base if needed, see page side.
Page 22 Rear-Facing Use without Base Vehicle Belt Install 4-22 lb (1.8-10 kg) and 29 in. (74 cm) Before you begin installing the car seat or less in height into your vehicle, did you check: Your child’s weight and height? See page 4. Your child’s fit? See page 6.
Page 23 Check Belt Tightness Check if Your Vehicle Belts Will Hold the car seat at the belt path with Work With This Car Seat your weaker hand. This is very important because not Push and pull from side to side. all vehicle belts will work with car It should not move more than seats.
Page 24 Removing Harness System Unthread Buckle Only remove the harness system to clean the seat pad. Do not unbuckle. To remove accessories, see page 3. From Back of Car Seat, Remove Free Ends of Harness Straps from Brackets Pull Harness Strap Out of Seat Pull Harness Strap Out of Shoulder Harness...
Page 25 Removing Seat Pad Set for Cleaning You must remove the harness system and Rotate Metal Retainer and the accessories in order to remove the seat pad for cleaning. Push It Up Through Shell and To remove accessories, see page 3. Pad As Shown To remove the harness system, see pages 41-43.
Page 26 Cleaning Parts of Car Seat and Installing Seat Pad Set Cleaning Pad and Accessories Pull Pad off Tabs from Machine wash separately with cold water on a gentle cycle. Make Top of Shell sure the fastening strips on the Deluxe Infant Insert are closed and not exposed.
Page 27 Installing Harness System Insert Buckle’s Metal Weave Harness Strap In and Retainer into Buckle Out of Shell As Shown Slot Closest to Child The buckle must face out. From Bottom of Car Seat, Pull Metal Retainer Completely Through Pad and Shell Check Buckle Pull up on the buckle to make sure it is secured.
Page 28 Aircraft Information Thread Harness Straps into This restraint is certified for aircraft use. Correct Shoulder Harness Slots for Your Child Rear-Facing Child Fit, see page Install the car seat in a window seat to avoid blocking the aisle. If the aircraft lap belt is too short, ask the flight attendant for a belt extender.
Page 29 Replacement and Expiration of Car Seat Do not risk your child’s safety. Child Restraint Use To keep your child as safe as possible, Dorel Juvenile Group strongly Never take your child out of the child restraint while the vehicle recommends replacing the car seat even after a minor crash; is moving.
Page 30 Registration and Safety Notices Vehicle Seating Position Please complete the postage-paid registration card that came with your child restraint, and send it to us. Child restraints could be recalled Never place a child rear-facing in a seating for safety reasons. You must register this restraint to be reached in a position with an active frontal air bag.
Page 31 Warranty Troubleshooting 1. If the car seat’s buckle or harness release lever sticks or you Dorel Juvenile Group, Inc. (DJG) warrants this product to the original cannot get the straps tight enough around your child: retail purchaser as follows: This product is warranted against defective materials or workmanship for one year from the date of Do not lubricate.
Page 32 Replacement Parts List Dorel Juvenile Group Information Thank you for choosing this car seat, also known as a child Chest Clip Lower Anchor Belt restraint. The DJG family is committed to creating car seats with the most comfort and convenience available today. Harness Straps Base Remember, parents are a child’s first teachers and...
