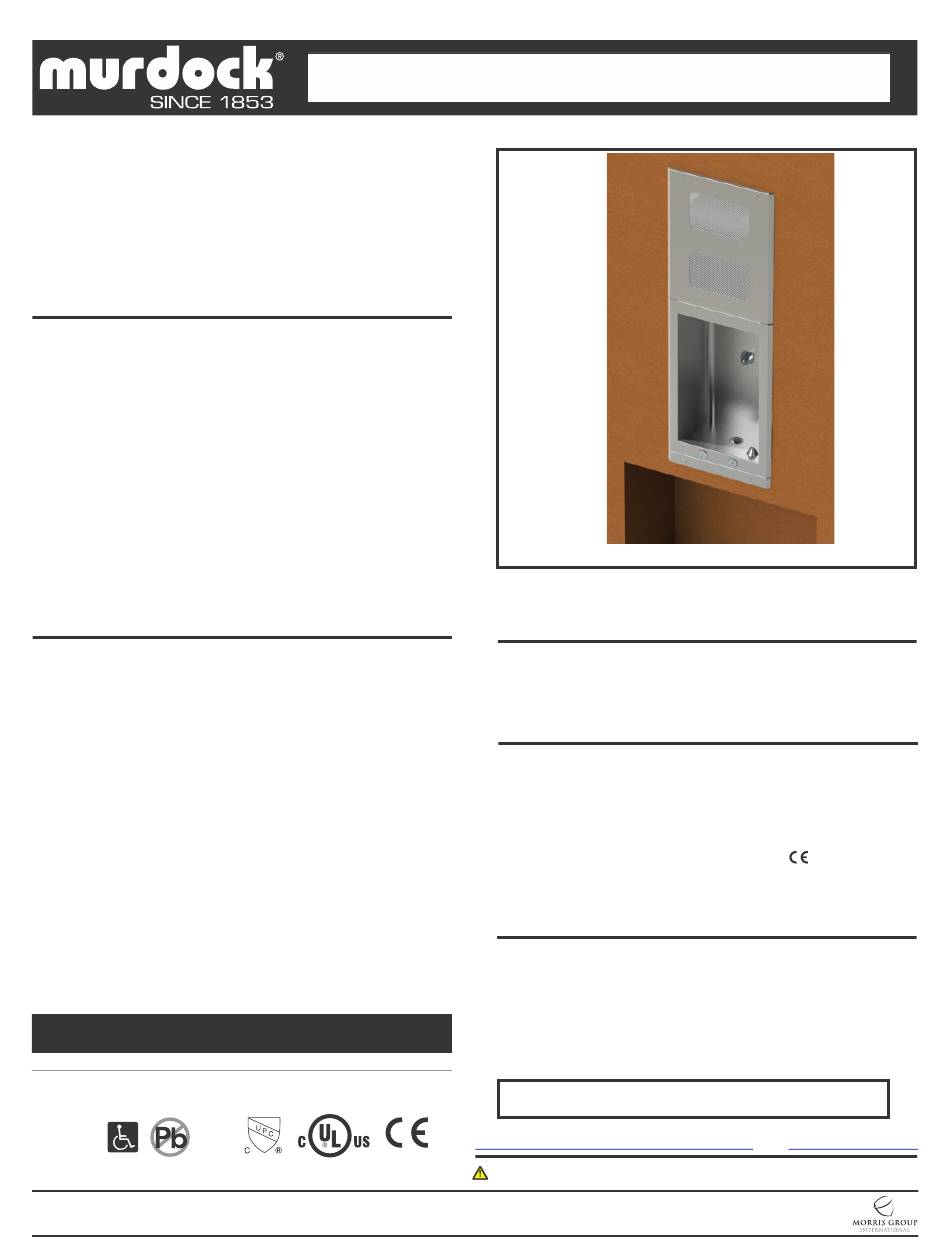

Murdock AR81 8 Series Manual

AR81.8 Series
MODEL AR81408S
LIGATURE RESISTANT, BARRIER FREE,
INVERTED, FULLY RECESSED WALL
MOUNTED ELECTRIC DRINKING FOUNTAIN
STANDARD FEATURES
Ligature Resistant
n
Child or Adult ADA Compliant
n
(When Properly Installed With A Knee Clearance Alcove)
n 18 Gauge 304 Stainless Steel Cabinet
n 16 Gauge Galvanized or Galvannealed Mounting Frame
(A0000000-MF20)
Polished Stainless Steel, Anti-Rotation, Ligature
n
Resistant
n 100-Mesh Inlet Strainer
n Vandal Resistant Screws
NOTE: UNIT REQUIRES REAR ACCESS OR ACCESS
PANEL TO MAKE-UP WASTE CONNECTION.
SUGGESTED SPECIFICATIONS
Model AR81408S is a self-contained, Inverted and Fully
Recessed Pressurized Electric Drinking Fountain that shall
deliver a minimum of 8.0 GPH (30.3 LPH) of water at 50°F
(10°C) cooled from 80°F (26.7°C) inlet water and 90°F
(32.2°C) ambient. Unit shall be activated by a chrome plated
brass Front Pushbutton(s) using less then 5 pounds of force.
Bubbler shall be Stainless Steel, Ligature Resistant and
operates on a water pressure range of 20–105 PSIG.
Cabinet Panels shall be constructed from 304 Stainless
Steel and the Bowl shall have an Integral Ligature Resistant
Drain. Cooling system shall use R-134a refrigerant and be
capillary tube regulated. Unit shall be listed by Underwriters
Laboratories for both the US and Canada and is compliant to
the Air Conditioning and Refrigeration Institute Standard
1010. Unit shall be certified to Public Law 111-380 (NO-
LEAD) and NSF/ANSI/CAN 61. Fixture meets ADA, ADA
Standing Person, and ADA Child requirements when
mounted appropriately. Optional WF3000 PFAS Water Filter
shall have 3000 gallon capacity with 3rd Party Certification
for Lead, Bacteria, Chlorine, Microplastics, and NSF/ANSI
for Cyst and total PFAS reduction.
Model
Number GPH*
AR81408S 8.0
* GPH of 50°F water at 90°F ambient room temperature and 80°F inlet water temperature
Compressor motor operates on 115 Volt / 60 Hz single phase.
Federal
Complies
Public Law
with the
111-380
following
(No Lead)
standards:
NSF/ANSI/CAN 61-2020
®
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone 800-453-7465 • www.murdockmfg.com
ELECTRIC DRINKING FOUNTAIN
Full Approx.
Rated Load Shipping
Watts Amps Weight
390 4.6 110 lbs.
(220V Compressor Only)
ANSI/ASHRAE 18
AR81408S-BF, Shown
MODEL:
(Must Specify)
o AR81408S
Ligature Resistant Stainless Steel Bubbler
OPTIONS
(additional costs may be incurred)
o -BF
Ligature Resistant Bottle/Cup Filler
q -LBPH
Less Bubbler & Less Bubbler Pushbutton
Actuator
(Bottle/Cup Filler Pushbutton
Located in Center)
o -220V
220 volt / 50 Hz Compressor (
ACCESSORIES
(additional costs may be incurred)
o -WF1 1500-gallon capacity Water Filter (See Note *)
o -WF3000 3000-gallon capacity Water Filter (See Note *)
NSF/ANSI, PFAS, Lead, Bacteria, Chlorine, Microplastics
NOTES:
1- Refer to Supplemental Submittal Sheet for Complete Product details.
* NOTE: For Optional -WF1 And -WF3000:
Installer Responsible for Remotely Locating Water Filter.
3000 Gallon PFAS Filter Certifications
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
AR81.8
"INDOOR USE ONLY"
