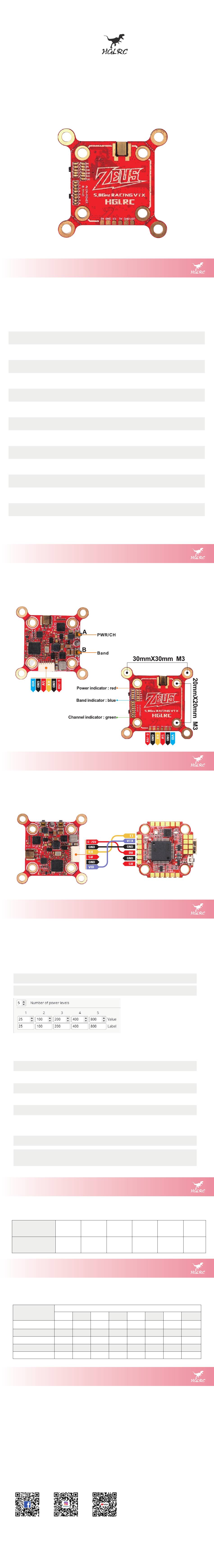

HGLRC Zeus VTX 800mW Operating Instructions page 2

Zeus VTX 800mW
VTX 800mW
instruction manual
Product parameters
Input voltage: DC 6-26V
Output voltage: 5V/500mA
PIT@30mA
25mW@120mA/15.5dBm
100mW@140mA/21.5dBm
200mW@170mA/24.5dBm
400mW@230mA/27.5dBm
800mW@300mA/30dBm
Antenna interface: MMCX
Output power: PIT/25/100/200/400/800mW
Standard 40 channels.A/B/E/F/R frequency group
Installing Hole: 20X20/30X30mm.M3
Size: 37mm x 37mm x 5mm
Weight: 4.8g
VTX 800mW
Operating instructions
Interface definition
VTX 800mW
Operating instructions
wiring diagram
VTX 800mW
Operating instructions
Function and application description
1. VTX parameter setting method is flight control OSD control and button control
2. The protocol used in the flight control OSD control is:
IRC tramp "PIT 25/100/200/400/800MW"
The values in the corresponding parameter form are"25/100/200/400/800"
3.Definition of key control
Button "A": Short press to change VTX CH
"A→B→E→F→R→A" cycle
After a long press (3S or more), the power of the VTX moves to the next level
"PIT→25→...800→PIT"cycle
Key "B": short press to change the VTX BAND
"1→2→3→...→8→1"cycle
4.Press and hold the "A" button before powering up, then enter PIT mode after
powering up
After releasing the "A" button, press the "A/B" button briefly to change the VTX CH/BAND
Long presses are not valid; you need to re-power the unit and press and hold the "A" key to
adjust the power
VTX 800mW
Operating instructions
Power indicator status
Indicator:RED
Frequency
VTX 800mW
Operating instructions
Frequency form
Frequency band
（blue light）
A
B
E
F
R
VTX 800mW
Operating instructions
Precautions for use
1. Make sure that the antenna is installed at the output before powering up to avoid
damage to the internal components.
2.Make sure that the input voltage is within the specified range and is correct to avoid
damage to the internal components.
3.When VTX is working at high power, the temperature of the external surface is high,
it is strictly forbidden to touch it directly with hands to avoid injury.
Company information
Sincerely thanks for everyone trust! Welcome to choose HGLRC products
Company name: Guangdong Huagulong Technology Co., Ltd.
After sales email: hglrc@support.com
Official website: www.hglrc.com
A d d r e s s : Building B1,Hongxintai Industrial Park,No. 28 Yinying Road,Dalang Town,
Dongguan city,523771,China
VTX manual
The first
Normal
blink
25mw
PIT
1 2 3
5865 5845 5825
5733 5752 5771
5705 5685 5665
5740 5760 5780
5658 5695 5732
Second Third
blink blink
100mw 200mw
channel （green light）
4 5
5805 5785
5790 5809
5665 5885
5800 5820
5769 5806
Fourth
blink
400mw 800mw
6 7
5765 5745 5725
5825 5847 5866
5905 5905 5905
5840 5860 5880
5843 5880 5917
Fifth
blink
8
