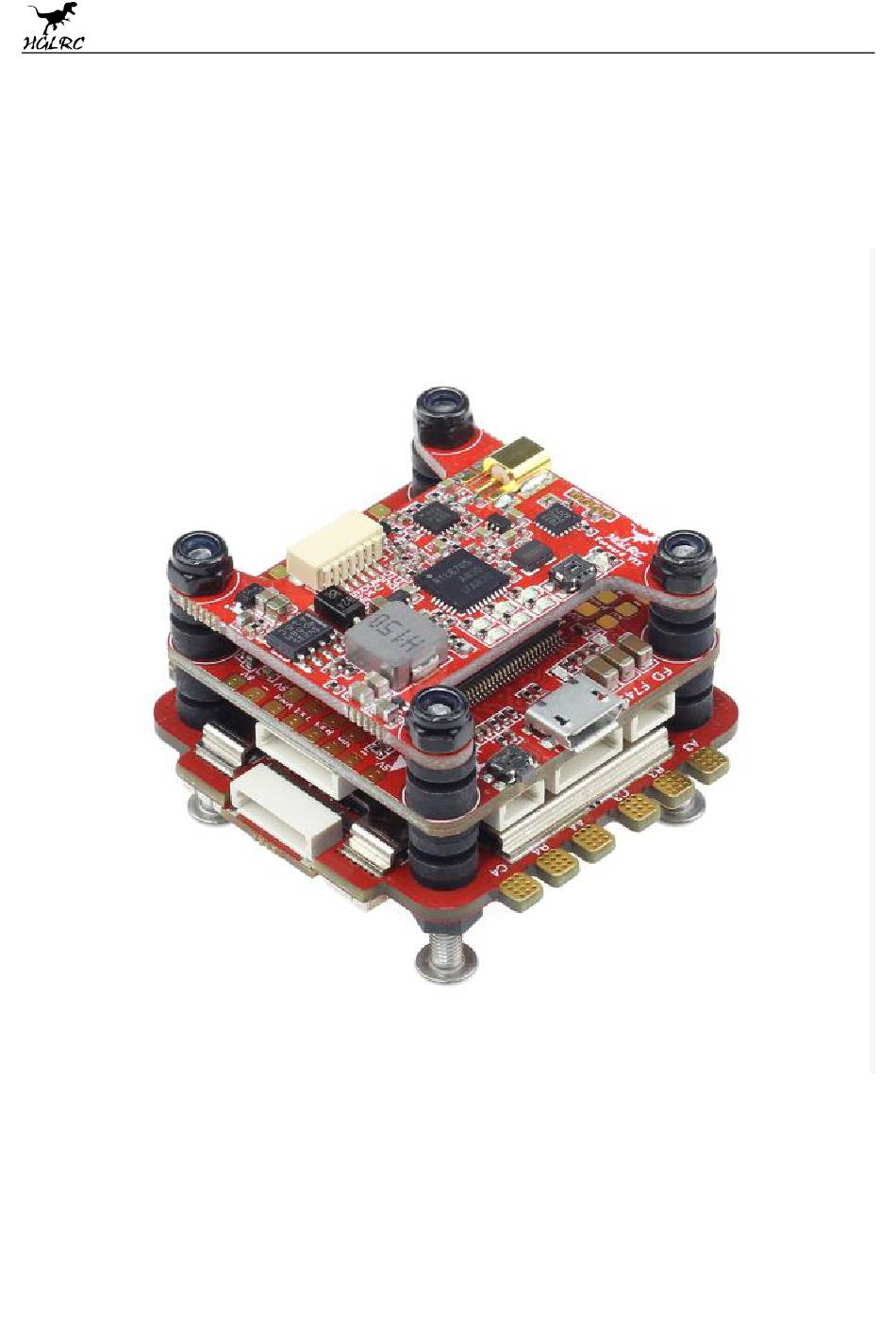

- Page 1 HGLRC FD765-VTX STACK Manual www.hglrc.com...
-
Page 2: Table Of Contents
Voltage and current parameters setting....................8 Setting up the receiver..........................9 VTX uses OSD smart audio........................10 GPS parameters setting...........................11 Check receiver signal..........................12 Select flight mode startup mode......................13 OSD settings..............................14 LED settings..............................15 switching gyro.............................16 Troubleshooting............................17 ..................Package IncIuded Accessory Package*1 HGLRC FD765-VTX STACK*1 www.hglrc.com... -
Page 3: Product Specifications
1.Product Specifications Product parameters Model HGLRC FD765-VTX STACK Usage for 180mm-1000mm Frame Kit Input Voltage 3-6S Lipo Forward F7 Dual Gyro Flight Flight Controller Controller FD65A L431 4in1 ESC FD VTX Support Neceiver SBUS .PPM .DSMX 46*45*30mm Product Size 30.5mm mounting holes(M3) Weight 48.2g (Including Receiver) -
Page 4: Interface Description
2.Interface Description www.hglrc.com... -
Page 5: Check The Flight Control Drive
2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode It is recommended to use the latest Betaflight version） ， （ www.hglrc.com... - Page 6 8K is recommended. （Betaflight 4.0 firmware does not support 32K）） 6.Click Load firmware Waiting for completion It will be prompted upon completion 7.open betaflight configurator 。Controller plugged into the computer. Betaflight Automatically assigned port，click “Connect” Enter setup interface（Different computer COM） www.hglrc.com...
-
Page 7: Calibration Accelerometer
4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again www.hglrc.com... -
Page 8: Urat Serial Port Use
5.URAT serial port use URAT1 uses receiver telemetry URAT2 uses the receiver URAT3 uses VTX image transmission URAT6 uses GPS URAT7 uses ESC telemetry 6.Select aircraft model Select model Click www.hglrc.com... -
Page 9: Choose Esc/Motor Protocol
I understand the risks Click Click Push Master to check motor “ ” steering Master Steering can be changed at BLHeliSuite “ ” 7.Choose ESC/Motor protocol 1.Choose the correct ESC / Motor protocol, Protocol DSHOT1200 is recommended for Wind5 Hybrid racing drone www.hglrc.com... -
Page 10: Voltage And Current Parameters Setting
8.Voltage and current parameters setting Click Setting parameters www.hglrc.com... -
Page 11: Setting Up The Receiver
9.Setting up the receiver 1.Receiver connection diagram 2.Click have found UART2 Open the receiver serial port “ ” 3.Set the SBUS receiver www.hglrc.com... - Page 12 4.Set the PPM receiver 5.Set the DSMX receiver 5. Turn on the receiver telemetry serial port Function on www.hglrc.com...
-
Page 13: Vtx Uses Osd Smart Audio
10.VTX uses OSD smart audio 1.VTX connection diagram 2.VTX serial port opens. The protocol is selected according to its own VTX protocol. www.hglrc.com... - Page 14 Roll-right will enter the sub-menu. For example, in the screen to the right, moving the cursor to “Features” and then moving the roll stick to the right will enter the “Features” sub-menu. www.hglrc.com...
- Page 15 The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. www.hglrc.com...
-
Page 16: Gps Parameters Setting
11.GPS parameters setting 1. GPS connection diagram 2. Open the GPS serial port www.hglrc.com... -
Page 17: Check Receiver Signal
3.When using the GPS function, remember to configure the serial port (via the Ports tab). 12.Check receiver signal Check the remote control output signal 1.Click www.hglrc.com... -
Page 18: Select Flight Mode Startup Mode
Click channel (below are for reference only) 14.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com... -
Page 19: Led Settings
1. After connecting to the Betaflight ground station, open the page and enter gyro_to_use” and press Enter to view the currentlyused gyroscope.First is MPU6000.SECOND is ICM20608（ Set “get MPU6000input:gyro_to_use = FIRST ）（ Set the ICM20608 input:set gyro_to_use =SECOND ） www.hglrc.com... -
Page 20: Troubleshooting
2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com... - Page 21 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
