HGLRC FD F7 DUAL
FLIGHT CONTROL
Manual
1
www.hglrc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Forward F7 Dual Flight Control and is the answer not in the manual?

Questions and answers

Summary of Contents for HGLRC Forward F7 Dual Flight Control

  • Page 1 HGLRC FD F7 DUAL FLIGHT CONTROL Manual www.hglrc.com...
  • Page 2: Table Of Contents

    VTX serial port use. VTX uses OSD smart audio................11 GPS parameters setting...........................12 Check receiver signal..........................13 Select flight mode startup mode......................14 OSD settings..............................15 LED settings..............................16 switching gyro.............................17 Troubleshooting............................18 ..................Package IncIuded SH1.0 8PIN 60MM*1 HGLRC FD F7 DUAL FC*1 SH1.0 6PIN 100MM*1 www.hglrc.com...
  • Page 3: Product Specifications

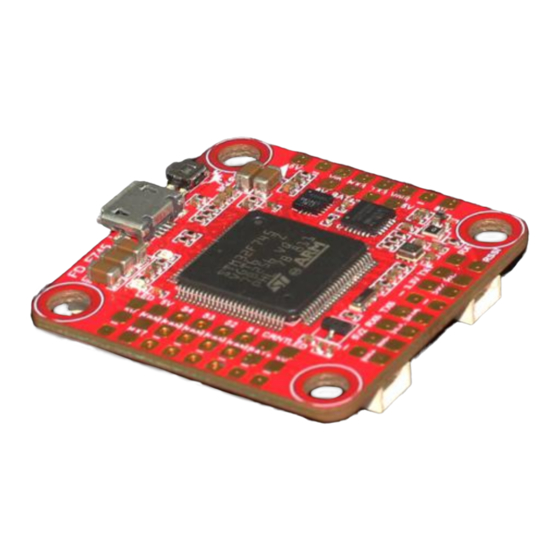

    1.Product Specifications Product parameters Model Forward F7 Dual Flight Control Weight 10.2g Usage for 180mm-1000mm Frame Kit ICM20602(32K)& MPU6000-SPI STM32F745VGT6, 32K+16K Black Box No dataflash chip found Support receiver SBUS .PPM .DSMX Input Voltage 3-6S Lipo BEC Output 5V@3A, 8V@1.5A...
  • Page 4: Interface Description

    2.Interface Description www.hglrc.com...
  • Page 5: Check The Flight Control Drive

    3.Check the flight control drive 1. Long Press BOOT buttons.connect USB.The system automatically install the driver 2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer 3.Double-click on the run(Plug in the flight controller to automatically install the driver) 4.open betaflight configurator enter DFU mode , www.hglrc.com...
  • Page 6 5.Click Select firmware version Load firmware Waiting for 6.Click completion It will be prompted upon completion 7.open betaflight configurator computer. Betaflight Automatically assigned port click “Connect” Enter Controller plugged into the setup interface Different computer , ( ) www.hglrc.com...
  • Page 7: Calibration Accelerometer

    4. Calibration accelerometer 1. Put the aircraft horizontal and click“Reset Z axis” Click again www.hglrc.com...
  • Page 8: Urat Serial Port Use

    5.URAT serial port use 1.URAT1 uses receiver telemetry 2.URAT2 uses the receiver 3.URAT3 uses VTX image transmission 4.URAT6 uses GPS 5.URAT7 uses ESC telemetry 6.Select aircraft model Select model Click www.hglrc.com...
  • Page 9: Choose Esc Protocol

    7.Choose ESC protocol 1.Choose the right ESC protocol, the optional universal protocol DSHOT600. 8.Turn on ESC telemetry 1.Open ESC telemetry serial port.TX on the ESC needs to be connected to the RX7 on the flight controller to use the ESC telemetry www.hglrc.com...
  • Page 10 2.Use KISS/BLHeli_32 ESC telemetry as sensor. 3.View telemetry data on OSD www.hglrc.com...
  • Page 11: Voltage And Current Parameters Setting

    9.Voltage and current parameters setting Click Setting parameters www.hglrc.com...
  • Page 12: Setting Up The Receiver

    10. Setting up the receiver 1.Receiver connection diagram 2.Click have found UART2 Open the receiver serial port “ ” 3.Set the SBUS receiver www.hglrc.com...
  • Page 13 4.Set the PPM receiver 5.Set the DSMX receiver 6.Turn on the receiver telemetry serial port Function on www.hglrc.com...
  • Page 14: Vtx Serial Port Use. Vtx Uses Osd Smart Audio

    11.VTX serial port use. VTX uses OSD smart audio 1.VTX connection diagram www.hglrc.com...
  • Page 15 “Features” sub-menu. If you are using a video transmitter that supports remote configuration, enter the “Features” menu to configure the vTX. From there, enter either “VTX SA” if you are using www.hglrc.com...
  • Page 16 The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings. www.hglrc.com...
  • Page 17: Gps Parameters Setting

    12.GPS parameters setting 1. GPS connection diagram 2.Open the GPS serial port www.hglrc.com...
  • Page 18: Check Receiver Signal

    3.When using the GPS function, remember to configure the serial port (via the Ports tab). 13.Check receiver signal Check the remote control output signal Click www.hglrc.com...
  • Page 19: Select Flight Mode Startup Mode

    14.Select flight mode startup mode Click 15.OSD settings the OSD Settings, according to the need to choose, drag Click the OSD schematic diagram of the parameters can be adjusted. www.hglrc.com...
  • Page 20: Led Settings

    1. After connecting to the Betaflight ground station,open the page and enter gyro_to_use” and press Enter to view the currentlyused gyroscope. (SECOND is MPU6000) ( FIRST is ICM20608 ) “get ( Set the MPU6000input:set gyro_to_use=SECOND ( Set the ICM20608 input:set gyro_to_use=FIRST ) ) www.hglrc.com...
  • Page 21: Troubleshooting

    2. If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired. 3. For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service. www.hglrc.com...
  • Page 22 "BBB" sound. There is only one sound. Please check if the ESC agreement is correct 3.The spin of the aircraft keeps spinning 1. Please check if the propeller is correct 2. Please check if the motor direction is correct www.hglrc.com...
