Summary of Contents for CDA EKP90SS

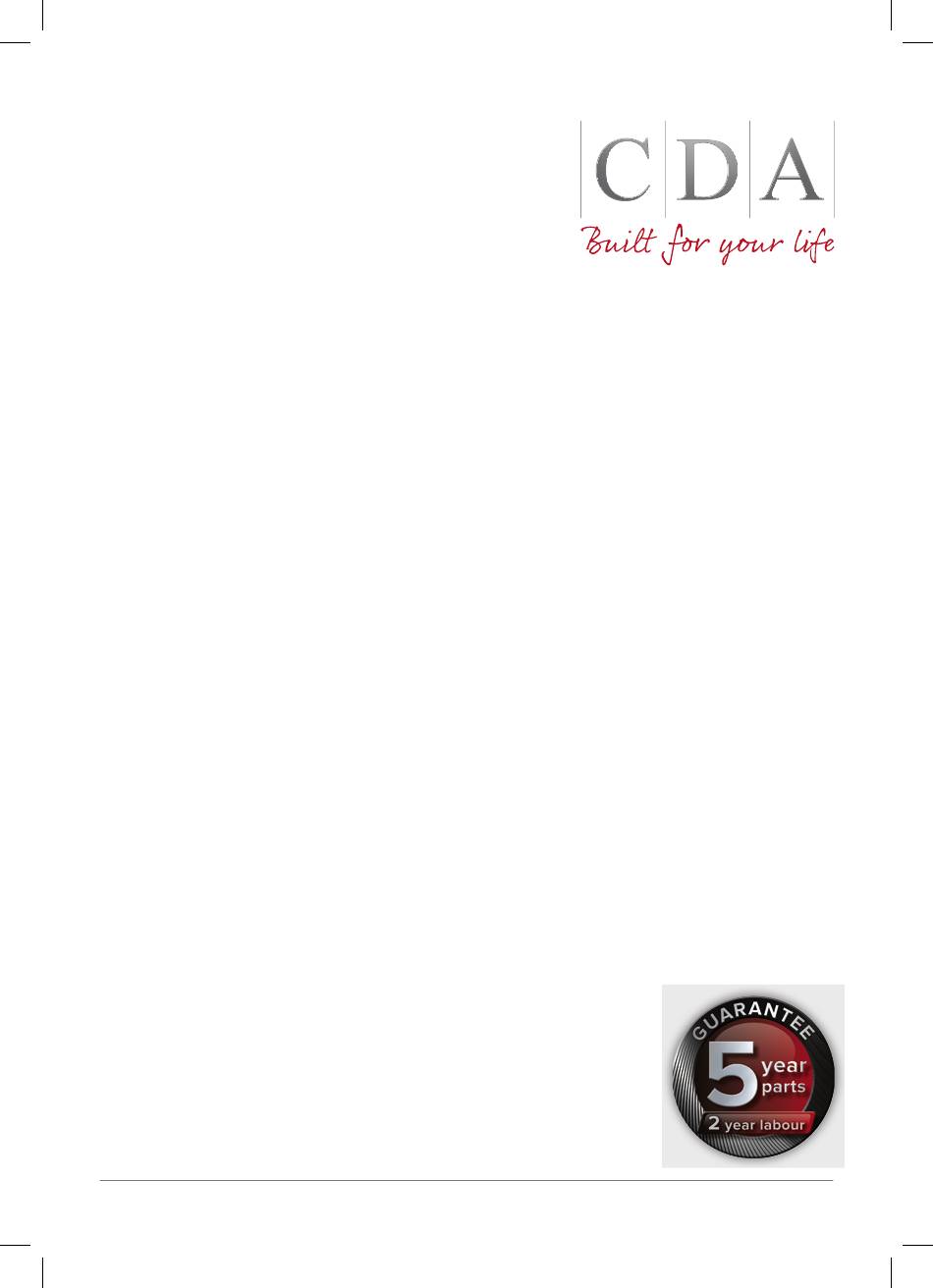

- Page 1 Extractors Installation, use and maintenance www.cda.eu Cod:0103088801-00.04...
- Page 2 Contents Important information Important notes Using your extractor Care and maintenance Changing the charcoal filter LED Lighting Mains electricity connection Electrical information Troubleshooting Mounting your extractor Installation and ducting Installation diagrams Installation diagrams Energy efficiency information...
- Page 3 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 4 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences for the environment and health.
- Page 5 Please note: • Under no circumstances should the extractor be connected to any gas ventilation system, flue system or hot air ducting system. • Do not vent the extractor into an attic or loft space. • Only house the extractor in rooms with adequate ventilation.
- Page 6 Using your Extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel Fig. 1 G - Function lights A - Hob lighting key H - Fan speed key B - Edge lighting key...
- Page 7 To change the edge light colour • Touch the “Edge lighting” key (B) briefly to turn the edge lighting on (if they aren’t already on). • Touch the “Edge lighting” key (B) again and hold it for 2 seconds. • •...
- Page 8 To set the timer • When the motor is running, touch the “On/Off” key (J) briefly to turn the timer on. The “Timer on” indicator will illuminate to show that the timer is active. • Touch the “Fan speed” key (H) briefly several times to select the time, the time in whole minutes is shown on the LCD display.
- Page 9 • Touch the “On/Off” key (J) briefly. The minute figures will flash to show they are being set. • While the minute figures are still flashing, touch the “Fan speed” key (H) briefly several times to set the minutes on the LCD display. Note that if the “Fan speed”...
- Page 10 Care and Maintenance IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a nonabrasive cleaner. Fig. 2 Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings.
- Page 11 prevent damage from other items in the dishwasher. To remove the grease filter, push in the button on the handle and then pull down on the filter at the front as shown in figure 2. When you have released it at the front, then you can pull the filter out completely.
- Page 12 In case of malfunction of the illumination system contact the technical service. Replaceable (LED only) light source by a professional...
- Page 13 As the colours of the wires in the mains lead for the appliance may not correspond with the coloured markings identifying the terminals connecting to the fuse spur, proceed as follows: • The wire which is coloured green and yellow must be connected to the terminal marked E (Earth) or coloured green.
- Page 14 1. Check that the mains supply has not been switched off. 2. Check that the fuse in the spur has not blown. Contact CDA Customer Care A: Customer Care Department, The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY T: 01949 862 012 F: 01949 862 003 E: customer.care@cda.eu...
- Page 15 Mounting your Extractor When the extractor is to be installed above an electric hob, the minimum distance between the hob and extractor must exceed 600mm for ceramic and solid plate hobs and 550mm for induction Hobs. When the extractor is to be installed Gas: 650mm recommended.
- Page 16 IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE GAS HOB, THE MINIMUM DISTANCE BETWEEN THE HOB AND EXTRACTOR MUST BE AT LEAST 650mm. The width of any hob must not be greater than the width of the extractor installed above it. Installation The metal casing of this appliance has been coated with a preservative to protect it during transport and storage.
- Page 17 Tools required Mark wall as required (see fig. 3) Figu re 2 - M ar k wal l as req ui red (see ta bl e 1) Fig. 5 Fig. 6 Drill holes Fit wall fixings and top screws - Ensure Figu re 3 - D rill h oles that any fixings you use are appropriate for the wall type...
- Page 18 Figu re 7 - Mo unt chimne y bracke ts Fix ducting (and seal the joint) Figu re 8 - Fix ducting (s ea l joint) Mount upper and lower chimney brackets Figu re 10 - Adj ust an d s ecure the chim ne y Fig.
- Page 19 89.1 (D) 181.8 184.0 336.4 96.6 0.46 69.0 66.4 E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.
- Page 20 01949 862 012 or email customer.care@cda.eu For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.eu Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 01949 862 003 customer.care@cda.eu www.cda.eu...
