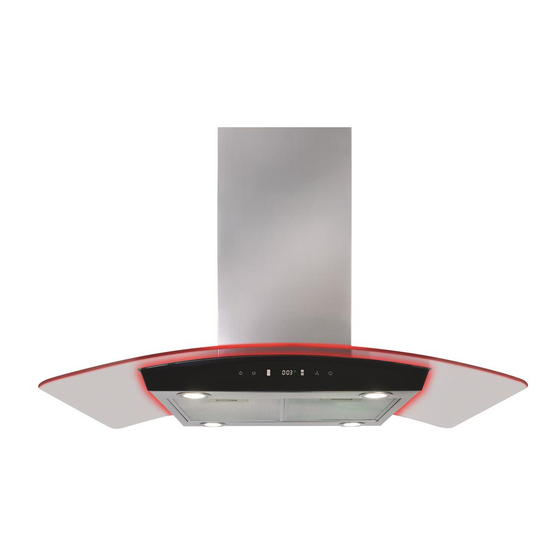

- Page 1 EKPK90 Extractor Installation, use and maintenance www.cda.eu Cod:0103088763-00.03...
-
Page 2: Table Of Contents
Contents Important information Important notes Using your extractor Care and maintenance Changing the charcoal filter LED Lighting Mains electricity connection Electrical information Troubleshooting Mounting your extractor Installation and ducting Installation heights options (assembly) Energy efficiency information... - Page 3 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
-
Page 4: Important Information
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences for the environment and health. - Page 5 Please note: • Under no circumstances should the extractor be connected to any gas ventilation system, flue system or hot air ducting system. • Do not vent the extractor into an attic or loft space. • Only house the extractor in rooms with adequate ventilation.
-
Page 6: Using Your Extractor
Using your extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel Fig. 1 A - Hob lighting key G - Function lights B - Edge lighting key H - Fan speed key... - Page 7 • Touch the “Edge lighting” key (B) again and hold it for 2 seconds. • • Allow the lights to scroll through the available colours automatically. • When the required colour shows, touch the “Edge lighting” key (B) briefly to set this as the default. •...
- Page 8 may be set to any number of minutes between 1 and 9. Note that if the “Fan speed” key is not touched within 5 seconds the timer will switch off and need to be turned on again before setting the time. •...
-
Page 9: Care And Maintenance
Care and maintenance IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a nonabrasive cleaner. Fig. 2 Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. You can clean your extractor effectively by simply using a dilute solution of water and mild detergent and drying to a shine with a clean cloth, for example a micro-fibre Cloth. -
Page 10: Changing The Charcoal Filter
After rinsing and drying, reassemble the grease filter to the hood by reversing the removal process. Please note: Cleaning the grease filter in the dishwasher may lead to discolouration. This is normal and does not constitute a fault with the appliance. -
Page 11: Led Lighting
LED lighting In case of malfunction of the illumination system contact the technical service. Replaceable (LED only) light source by a professional Contact details are on page 13. Mains electricity connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. -
Page 12: Electrical Information
identifying the terminals connecting to the fuse spur, proceed as follows: • The wire which is coloured green and yellow must be connected to the terminal marked E (Earth) or coloured green. • The wire which is coloured blue must be connected to the terminal marked N (Neutral) or coloured black. -
Page 13: Troubleshooting
2. Check that the fuse in the spur has not blown. 3. Check that the control panel is clean and free from grease Contact CDA Customer Care A: Customer Care Department, The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY T: 01949 862 012 F: 01949 862 003 E: customer.care@cda.eu... -
Page 14: Mounting Your Extractor
Mounting your extractor When the extractor is to be installed above an electric hob, the minimum distance between the hob and extractor must exceed 600mm for ceramic and solid plate hobs and 550mm for Gas: 650mm recommended. induction Hobs. Electric: 600/550mm recommended. When the extractor is to be installed above a gas hob, the minimum distance between the hob and extractor must... - Page 15 IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE GAS HOB, THE MINIMUM DISTANCE BETWEEN THE HOB AND EXTRACTOR MUST BE AT LEAST 650mm. The width of any hob must not be greater than the width of the extractor installed above it. Installation The metal casing of this appliance has been coated with a preservative to protect it during transport and storage.
- Page 16 4. Assemble the support frame (1 and 2 in Fig. 5) using the supplied fixing screws and secure to the extractor body as per Fig. 6. Use the adjustment holes on the support frame pieces to achieve the required height (calculated previously).
- Page 17 5. Ensure that the final assembled extractor will still give the clearances required for whatever hob is beneath it. When you are happy that it will, place the chimney sections over the body assembly (Fig. 7). 1. Upper Bracket 2. Lower Bracket Fig.
- Page 18 9. Please note that the electrical connection to the extractor should not be located inside the boundaries of the chimney. This is especially important if the extractor is to be used in recirculation mode. There must be an isolation switch, which is easily accessible after installation, so that the extractor can be disconnected from the mains electrical supply.
-
Page 19: Energy Efficiency Information
Measured power consumption in standby 0.47 mode Sound power level 69.7 (D) Hood c i f 91 (A) Hood E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice. - Page 20 01949 862 012 or email customer.care@cda.eu For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.eu Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 01949 862 003 customer.care@cda.eu www.cda.eu...
