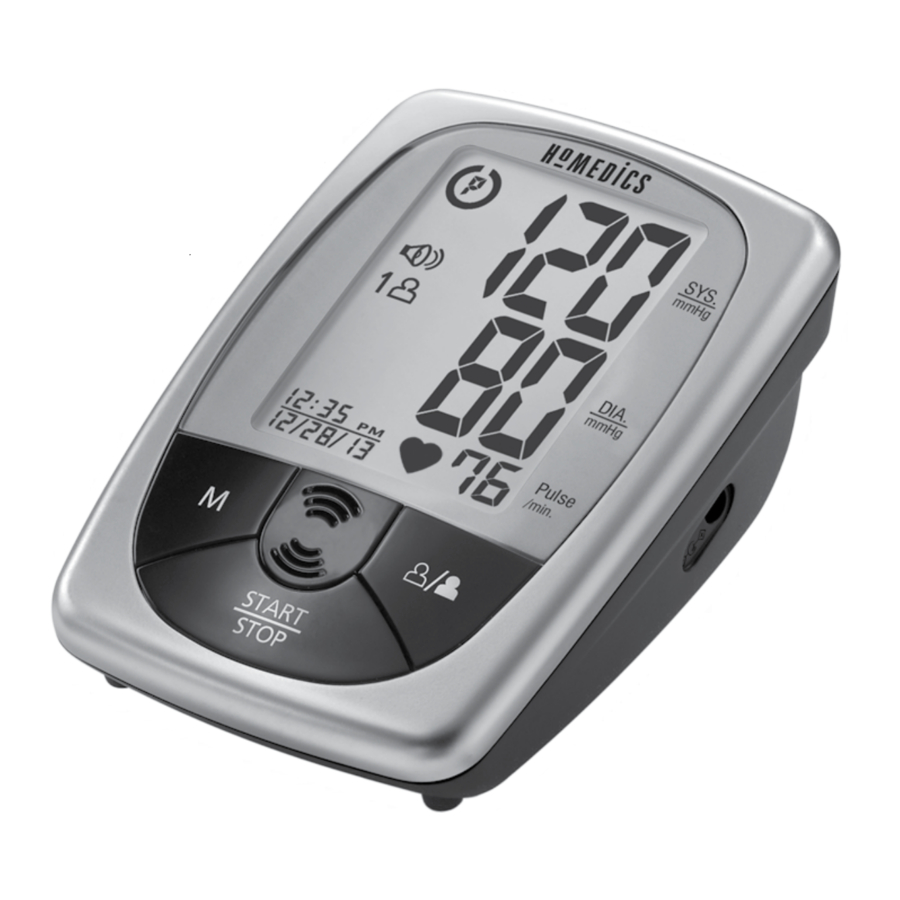

Homedics BPA-260-CBL Manual

IMPORTANT PRODUCT NOTICES AND SAFETY INSTRUCTIONS

When using your blood pressure monitor, basic precautions should always be followed. Please read and follow all instructions and warnings before using this product. Save these instructions for future reference.

• Excessive use may result in blood flow interference, which is likely to cause uncomfortable sensations, such as partial subcutaneous hemorrhage, or temporary numbness to your arm. In general, these symptoms should not last long. However, if you do not recover in time, please seek advice from a medical professional.
• Please note that this is a home healthcare product only and it is not intended to serve as a substitute for the advice of a physician or medical professional.
• This device uses the oscillometric method to measure systolic and diastolic blood pressure as well as heart rate.
• Consider the electromagnetic compatibility of the device (ex. power disturbance, radio frequency interference etc.) Please use this device indoors only.
• Electromagnetic interference: The device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones, microwave ovens). These may lead to temporary impairment of measurement accuracy.
• Do not use this device for diagnosis or treatment of any health problem or disease. Measurement results are for reference only. Consult a healthcare professional for interpretation of pressure measurements. Contact your physician if you have or suspect any medical problem. Do not change your medications without the advice of your physician or healthcare professional.
• Proper cuff size is critical for accurate measurements. Follow the instructions in this manual and printed on the arm cuff to ensure the appropriate size of cuff is being used.
• T his device is not suitable for people with arrhythmias. This device may have difficulty determining the proper blood pressure for pregnant women and for users with diabetes, poor circulation of blood, kidney problems or for users who have suffered from a stroke.
• The pulse display is not suitable for checking the frequency of heart pacemakers.
• Do not use this device on infants, children, or those who cannot express their own intention.
• Not for use by or on persons under the age of 18.
• Use blood pressure monitor only for its intended use.
• Do not wrap the cuff around body parts other than your arm.
• Do not plug or unplug the adapter power cord with wet hands.
• Please use only the AC adapter included with this monitor or 1.5V "AA" alkaline batteries for power supply.

Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/ stethoscope auscultatory method, within the limits prescribed by the American National Standard, Manual, electronic, or automated sphygmomanometers.

ABOUT BLOOD PRESSURE

What is Blood Pressure?
Blood pressure is the pressure exerted on the artery walls while blood flows through the arteries. The pressure measured when the heart contracts and sends blood out of the heart is systolic (highest) blood pressure. The pressure measured when the heart dilates with blood flowing back into the heart is called diastolic (lowest) blood pressure.

Why Measure Your Blood Pressure?
Among today's various health problems, those associated with high blood pressure are very common. High blood pressure dangerously correlates with cardiovascular diseases. Therefore, blood pressure monitoring is important for identifying those at risk.

BLOOD PRESSURE STANDARD

The table below contains defined levels for hypertension that are publicly available from the National Heart Lung and Blood Institute at the U.S. National Institutes of Health (NIH) (http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html). Users can compare their own blood pressure readings against these defined levels to determine if they may be potentially at increased risk.
This table is applicable to most adults aged 18 and older.
Blood pressure tends to go up and down, even in people who normally don't have high readings. If your numbers stay above the "normal" range most of the time, you may be at increased risk and should consult your physician.

Although one can easily find where their own blood pressure readings fall on this table, this monitor comes equipped with a Risk Category Index that automatically compares each reading to the defined levels and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. See "Risk Category Index" section for more information on this feature.

Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to help you understand your non-invasive blood pressure reading as it relates to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

HOW THIS UNIT WORKS

This monitor uses innovative technology to detect your systolic pressure, diastolic pressure and pulse. This technology enables the monitor to automatically inflate and deflate at the appropriate level for each individual. With one touch of a button, the cuff will automatically inflate to block the blood flow through your artery. Next, the deflation process starts. Please note that any muscle movement during inflation or deflation will cause measurement error. When measurement is complete, the monitor will display your systolic pressure, diastolic pressure, and pulse readings.
The monitor automatically finds where your measurement results fall on the NIH's National Heart Lung and Blood Institute's table and provides a cue if your reading falls into one of the stages that could potentially indicate increased risk. Please refer to "Risk Category Index" section for more information on this feature.
The appearance of the icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Refer to "Irregular Heartbeat Detector" section for more information on the Irregular Heartbeat Detector.

NAME/FUNCTION OF EACH PART

1. DATE/TIME SET Buttons
2. TALKING MODE Button
3. LANGUAGE Button

Other Accessories Included:
1 6V DC Output AC Adapter
4 "AA" size, 1.5V alkaline batteries
Note: Please unload the batteries when operating with the AC adapter for an extended period of time.

DISPLAY EXPLANATIONS

Display Symbols:

	User 1: Appears when the monitor is operated by User 1.
	User 2: Appears when the monitor is operated by User 2.
	Weak Battery Symbol: Appears when batteries should be replaced.
	Pulse Symbol: Shows the heart rate per minute.
	Irregular Heartbeat Detector: See "Irregular Heartbeat Detector" section for more information.
	Memory Average: Displays average of last 3 readings.
	Risk Category Index: See the "Risk Category Index" section for more information.
	Talking Feature On Symbol: Appears when talking function is activated. (Speaker ON)

If any of the following letters and numbers appear in the area that systolic pressure should be displayed, an error has occurred with your reading. See Troubleshooting section of this manual for more information.

	Measurement Error: Wrap the cuff correctly and keep arm steady during measurement. Measure again.
	Air Circuit Abnormality: Check cuff connection. Measure again.
	Pressure Exceeding 300 mmHg: Turn the unit off to clear, then measure again.
	Error Determining Measurement Data: Measure again.
	System Error: Measure again.

INSTALLING BATTERIES

1. Press down on latch and lift the battery cover to open the battery compartment.
2. Install or replace 4 "AA " sized batteries in the battery compartment according to the indications inside the compartment.
3. Close the battery cover by pushing in the top end of the battery door.

Replace the batteries if:

1. The weak battery symbol appears on the display.
2. Nothing appears on the display when the power is switched on.

As the supplied batteries are for test only, they may be discharged earlier than batteries you buy in stores. Replace all batteries at one time (as simultaneous set). Use only 1.5V "AA" alkaline batteries. Remove batteries when unit is not in use for extended periods of time. Date and time will need to be reset if batteries are removed or replaced. Clean contacts on battery and in battery compartment with a soft dry cloth each time you install batteries.
Note: Batteries are hazardous waste. Do not dispose of them together with the household garbage.

USING THE AC ADAPTER

Note:

• When the AC adapter is your main power supply, make sure the adapter plug can be easily removed from the unit.
• Please unload the batteries when operating with an AC adapter for an extended period of time. Leaving the batteries in the compartment for a long time may cause leakage, which may lead to damage to the unit.
• No batteries are needed when operating with an AC adapter.
• Date and time will need to be reset if AC adapter is unplugged and unit is without batteries.

1. Connect the AC adapter with the AC adapter jack as shown below.

2. Please use only the AC adapter included with this monitor.

AC Adapter
Input: 100-240V~0.18A 50/60Hz
Output: 6V DC 1A 6W Max

DATE & TIME SET PROCEDURE

1. To adjust the date/time, press the DATE/TIME SET button .

2. The display will show a blinking number showing the HOUR. Change the HOUR by pressing the button. Each press will increase the number by one in a cycling manner. Press the DATE/TIME SET button again to confirm the entry, and the screen will show a blinking number representing the MINUTE.
3. Change the MINUTE, MONTH, DAY and YEAR as described in Step 2 above, using the button to change the numbers and the DATE/TIME SET button to confirm the entries.

USING THE VOICE ASSIST TALKING FUNCTION

The Voice Assist feature will guide you through the measurement procedure and also announce results after your reading. The Voice Assist Talking Function is not a substitute for reading and understanding the instruction manual.

The Voice Assist feature has 3 modes:

• Instructions On Mode - Announces instructions and results
• Instructions Off Mode - Announces results only
• Quiet Mode - No voice

Setting the Voice Assist Mode:

1. Press the TALKING MODE button on the back of the monitor. Each press of the TALKING MODE button will cycle through the different modes.

2. When the appears with the letters "InS ON", this indicates the monitor is in "Instructions On" Mode.

3. When the appears with the letters "InS oFF", this indicates the monitor is in "Instructions Off" Mode.

4. When just the letters "oFF" appear, the monitor is in "Quiet Mode".


Setting the Language:
The Voice Assist talking function announces results in English or Spanish. To change the language, press the LANGUAGE button on the top of the monitor.

English language will display L1

Spanish language will display L2

USING THE ARM CUFF

Proper cuff size is critical to accurate measurement.

This monitor comes with two sizes of arm cuffs:
Standard Size Fits 9"–13" (23 cm – 33 cm)
Large Size Fits 13"–17" (33 cm – 43 cm)

The appropriate cuff is suitable for your use if the colored arrow falls within the solid color line as shown below.

1. If the cuff is not assembled, pass the end of the cuff furthest away from the tubing through the metal D-ring in order to form a loop. The smooth side without the felt material should be on the inside of the cuff loop.

2. Plug the cuff tube into the left side of the unit.

3. Open the arm cuff so that your arm may be placed through it.
4. Remove tight fitting clothing from your upper left arm so that the cuff can be wrapped around your exposed arm.
5. Position cuff edge 0.8-1.2 inches (2-3cm) above elbow.

6. Center tube over middle of arm.

7. Pull the end of the cuff so that it tightens evenly around your arm. Press the hook and loop material together to secure. Allow room for 2 fingers to fit between the cuff and your arm.

8. Lay your arm on a table (palm upward) so the cuff is at the same height as your heart. Make sure the tube is not kinked.


Note:

• The device should not be used when your arm is injured or wounded.
• If it is not possible to fit the cuff to your left arm, it can also be placed on your right arm. However, all measurements should be made using the same arm.
• To use on the right arm, you must position the artery symbol " " over the main artery. Locate the main artery by pressing with two fingers approximately 1" (2 cm) above the bend of your elbow on the inside of your right arm. Identify where the pulse can be felt the strongest. This is your main artery.


MEASUREMENT PROCEDURE

• Blood pressure changes with every heartbeat and is in constant fluctuation throughout the day.
• Blood pressure measurement can be affected by the position of the user, his or her physiologic condition and other factors. For greatest accuracy, wait 1 hour after exercising, bathing, eating, drinking beverages with alcohol or caffeine, or smoking to measure blood pressure.
• Before measurement, it is suggested that you sit quietly for 15 minutes as measurements taken during a relaxed state will have greater accuracy. You should not be physically tired or exhausted while taking a measurement.
• During the measurement, do not talk or move your arm or hand muscles.
• See "Important Notes Regarding Your Blood Pressure Measurement" for additional notes regarding your blood pressure measurement.

If you are using this blood pressure monitor for the first time, please remove the protective film from the screen.

1. Press the USER-SELECT button to choose User 1 or User 2.
   After the user number is selected, press the START/STOP button to confirm the chosen user.

2. With the cuff wrapped around your arm, press the START/STOP button. Do not inflate the cuff unless it is wrapped around your arm. All digits will light up to check the display functions. The checking procedure will be completed after about 3 seconds.
   Note: If using the Voice Assist "Instructions On" mode, you will be prompted to press the START/STOP button again before measurement begins.

3. After all symbols disappear, the display will show "00". The monitor is "Ready to Measure" and will automatically inflate the cuff to start measurement.

4. The cuff will begin deflating as measurement continues.
   Note: This monitor will re-inflate automatically if the system detects that your body requires more pressure for measurement.

5. When the measurement is completed, the cuff will deflate entirely. Systolic pressure, diastolic pressure and pulse will be shown simultaneously on the LCD screen. The measurement is then automatically stored into memory.


Note:

1. This monitor automatically turns off approximately 1 minute after last operation. You may also press the START/STOP button to turn the unit off.
2. To interrupt the measurement, you may press the START/STOP (recommended), M, LANGUAGE, TALKING MODE, USER-SELECT or DATE/TIME SET ( ) buttons. The cuff will deflate immediately after a button is pressed.

RISK CATEGORY INDEX

This monitor comes equipped with a Risk Category Index that automatically compares each reading to defined levels established by the U.S. National Institutes of Health's (NIH) National Heart Lung and Blood Institute as described earlier in this manual, and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. No cue is given if the reading falls in the normal range as defined by NIH. Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to help you understand your non-invasive blood pressure reading as it relates to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

IRREGULAR HEARTBEAT DETECTOR

The appearance of the icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Usually this is not a cause for concern. However, if the symbol appears often, we recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.
Movement, shaking or talking during the measurement can result in pulse irregularities that may cause the appearance of this icon. Therefore, it is of great importance to not move or talk during measurement.
To determine the presence of an irregular heartbeat, the average of the heartbeat intervals is calculated with the first 3 normal heartbeat values. It is important to note that the average is not a strict mathematical averaging of all recorded intervals. At least 3 beats with 25% or greater difference from the average heartbeat interval will generate the icon on the screen.

This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your blood pressure monitor.

RECALLING VALUES FROM MEMORY

This monitor can be used by two individuals.
Each user can store up to 60 measurements.

1. Press the USER-SELECT button.

2. Choose User 1 or User 2.

3. Press the M button to access the memory.

4. The monitor will first display the calculated average applied to the last 3 memories.

5. Every new press of the M button will recall a previous reading. The latest reading will be recalled first.


CLEARING VALUES FROM MEMORY

1. Press the USER-SELECT button to select User 1 or User 2.

2. Press and hold the DATE/TIME SET buttons ( ) at the same time while in memory recall mode, and the data for the selected user will be erased automatically.


USING YOUR DEVICE WITH MICROSOFT HEALTHVAULT

Rather than entering data manually into Microsoft HealthVault, this monitor allows you to automatically upload your measurement data into a personal HealthVault account if desired. In HealthVault, you can store your data and track your progress.

HealthVault is a free, privacy- and security-enhanced online Microsoft service that puts you in control of your health information. HealthVault lets you store health information from many sources in a single location so that it's always organized and available to you online. With HealthVault, you can upload data from health and fitness devices and share your health information with your physicians and others you trust.

1. If desired, get started here:
   http://www.HealthVault.com/devicesetup
2. Create a personal HealthVault account to store your data online.
3. Track your progress using HealthVault.

CONNECTING THE DEVICE TO COMPUTER

To download results to Microsoft HealthVault, the blood pressure monitor needs to be connected to a computer. This is done through a standard mini-b USB cable (included).

Connect the small end of the cable to your blood pressure monitor and the large end of the cable to the USB port on your computer. When connected properly, the monitor's display will show .

To use Microsoft HealthVault, follow the directions at http://www.HealthVault.com

IMPORTANT NOTES REGARDING YOUR BLOOD PRESSURE MEASUREMENT

• Take your reading in a comfortable environment as measurements can be affected by hot or cold temperatures. Take your blood pressure at normal body temperature.
• Do not move or talk during measurement as this can elevate readings.
• Follow local ordinances and recycling instructions regarding disposal of the device and device components, including batteries.
• Do not move or cross legs during measurement. Keep feet flat on floor.
• Do not touch cuff or monitor during measurement procedure.
• It is suggested that you take your measurements at the same time each day and use the same arm for consistency.
• Users should wait a minimum of 5 minutes before taking additional measurements. More time may be necessary depending upon your physiology.
• The measurement results that users receive are for reference only. If users have any blood pressure concerns, please consult a physician.
• Once inflation reaches 300 mmHg, the unit will deflate automatically for safety reasons.
• This product is not suitable for people with arrhythmias.
• This device may have difficulty determining the proper blood pressure for pregnant women and for users with diabetes, poor circulation of blood, kidney problems, or for users who have suffered a stroke.

CARE/MAINTENANCE & CLEANING

• Clean the blood pressure monitor body and cuff carefully with a slightly damp, soft cloth. Do not press. Do not wash cuff or use chemical cleaner on it. Never use thinner, alcohol or petrol (gasoline) as cleaner.
• Leaky batteries can damage the unit. Remove the batteries when the unit will not be used for a long time.
• If the unit is stored near freezing, allow it to acclimate to room temperature before use.
• This blood pressure monitor is not field serviceable. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. If you have any problems with this device, please contact HoMedics Consumer Relations (contact information can be found in the warranty section).
• Do not immerse the unit in water as this will result in damage to the unit.
• Do not subject the monitor and cuff to extreme temperatures, humidity, moisture, and direct sunlight. Protect from dust.
• Do not fold the cuff and tubing tightly.
• Do not disassemble the monitor or cuff. If in need of repair, refer to the warranty section of this manual.
• Do not subject the monitor to extreme shocks (do not drop on floor).
• Do not inflate the cuff unless wrapped around your arm.
• Do not wrap the cuff around body parts other than your arm.
• Do not drop or insert any object into any opening or hose.
• To avoid accidental strangulation keep this product away from children. Do not drape tube around neck.
• This monitor may not meet its performance specifications if stored or used outside of these temperature and humidity ranges:
  • Storage/Transportation Environment
    Temperature:
    -13°F~158°F (-25°C~70°C)
    Humidity:
    less than 93% R.H.
  • Operating Environment
    Temperature:
    41°F~104°F (5°C ~40°C)
    Humidity:
    15% ~ 93% R.H.

POTENTIAL FOR ELECTROMAGNETIC INTERFERENCE

To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipment, do not use the device near a cell phone or microwave oven. For most wireless communication devices, it is recommended to maintain a distance of 10.8 feet (3.3m) in order to avoid electromagnetic interference.

TROUBLESHOOTING

If any abnormality arises during use, please check the following points

Note: If the unit still does not work, contact HoMedics Consumer Relations. Under no circumstance should you disassemble or attempt to repair the unit by yourself. Contact information for HoMedics Consumer Relations Department can be found in the warranty section.

SPECIFICATIONS

Power Source:	Four 1.5V DC "AA" alkaline batteries or 6V DC AC adapter
Measurement Method:	Oscillometric
Measurement Range:	Pressure: 40~280 millimeters mercury (mmHg) Pulse: 40~199 beats/minute
Accuracy:	Pressure: ±3 mmHg Pulse: ±5% of reading
Pressure Sensor:	Semi-conductor
Inflation:	Pump driven
Deflation:	Automatic Pressure release valve
Memory Capacity:	60 memories for each User (120 total)
Auto-shut-off:	1 minute after last button operation
Operation Environment:	Temperature: 41°F~104°F (5°C ~40°C) Humidity: 15% ~ 93% R.H.
Storage/Transportation Environment:	Temperature: -13°F~158°F (-25°C~70°C) Humidity: Less Than 93% R.H.
Weight:	0.65 lbs (293 g) (without batteries)
Arm Circumference:	Standard size cuff: 9"–13" (23-33 cm) Large size cuff: 13"–17" (33-43 cm)
Dimensions:	5.6"(L) x 4.3"(W) x 2.5"(H) 143.2mm(L) x 108.7mm(W) x 63mm(H)
Accessories:	(4) "AA" alkaline batteries, 6V DC AC adapter, pouch, USB cable, arm cuffs with tube
	Internally Powered equipment Type BF Equipment IPx0-No special protection against the ingress of water Not suitable for use in presence of flammable anesthetic mixture with air, oxygen or nitrous oxide. Continuous operation with short-time loading.

Note: These specifications are subject to change without notice.

LIMITED FIVE YEAR WARRANTY

To obtain warranty service on your HoMedics product, contact a Consumer Relations Representative by telephone at 1-800-466-3342 for assistance. Please make sure to have the model number of the product available.

For service or repair, do not return this unit to the retailer. Contact HoMedics Consumer Relations at:

Email:
cservice@homedics.com

Phone:
1-800-466-3342
Business Hours:
8:30am-7pm ET
Monday-Friday

Distributed by
HoMedics, LLC
3000 Pontiac Trail
Commerce Township, MI
48390

Register Your Product At:
www.homedics.com/register

Documents / Resources

References

• High Blood Pressure - What Is High Blood Pressure? | NHLBI, NIH
• Register Your Homedics Product - Homedics

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Homedics BPA-260-CBL Manual
