Homedics BPA-065 Manual

ABOUT BLOOD PRESSURE

What is blood pressure?
Blood pressure is the pressure exerted on the artery walls while blood flows through the arteries. The pressure measured when the heart contracts and sends blood out of the heart is systolic (highest) blood pressure. The pressure measured when the heart dilates with blood flowing back into the heart is called diastolic (lowest) blood pressure.

Why measure your blood pressure?
Among today's various health problems, those associated with high blood pressure are very common. High blood pressure dangerously correlates with cardiovascular diseases. Therefore, blood pressure monitoring is important for identifying those at risk.

Why do my readings vary?
Blood pressure is a body parameter that is subject to normal variations throughout the day. A single reading that is different from yours or your doctor's readings are not necessary inaccurate. The average of several readings, taken under similar conditions, using the same arm is preferred for accurate blood pressure readings.

Why are my readings different than those taken at my doctor's office?
Many experience a phenomenon called "White Coat Hypertension" when measured by a doctor. White Coat Hypertension refers to blood pressure that rises above its usual level when measured in a clinical setting, such as a doctor's office.

BLOOD PRESSURE STANDARD

The table below contains defined levels for hypertension that are publicly available from the American Heart Association® (AHA 2017).
Users can compare their own blood pressure readings against these defined levels to determine if they may be potentially at increased risk.
This table is applicable to most adults aged 18 and older.

Blood pressure tends to go up and down, even in people who normally don't have high readings. If your numbers stay above the normal range most of the time, you may be at increased risk and should consult your physician.
Although one can easily find where their own blood pressure readings fall on this table, this monitor comes equipped with a Risk Category Indicator that automatically compares each reading to the defined levels and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk.
Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience in helping you to understand your noninvasive blood pressure reading as it relates to the American Heart Association (AHA 2017) information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

HOW THIS BLOOD PRESSURE MONITOR WORKS

This monitor uses Smart Measure™ Technology to detect your blood pressure. This technology enables the monitor to automatically inflate and deflate at the appropriate level for each individual. With the touch of a button, the cuff will automatically inflate to block the blood flow through your artery. Next, the deflation process starts. Please note that any muscle movement during inflation or deflation will cause measurement error. When measurement is complete, the monitor will display your systolic pressure, diastolic pressure, and pulse readings.
The monitor automatically finds where your measurement results fall on the American Heart Association (AHA 2017) table and provides a cue if your reading falls into one of the stages that could potentially indicate increased risk.
The appearance of the icon indicates that a pulse irregularly consistent with an irregular heartbeat was detected during measurement.

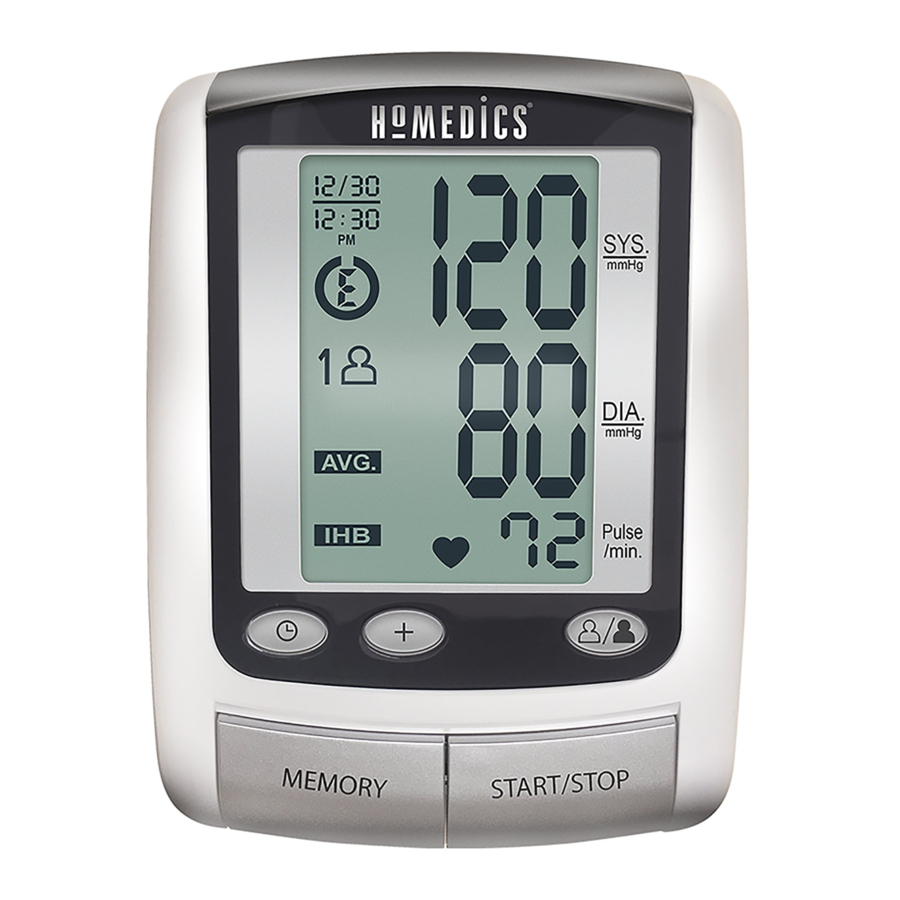

NAME/FUNCTION OF EACH PART

Other Accessories:
1 6V DC Output AC Adapter (not included)
4 AA size, 1.5V alkaline batteries

Note: Please unload the batteries when operating with the AC adapter for an extended period of time.

DISPLAY EXPLANATIONS

Display Symbols:

	User 1: Appears when the monitor is operated by User 1.
	User 2: Appears when the monitor is operated by User 2.
	Weak Battery Symbol: Appears when batteries should be replaced.
	Pulse Symbol: Shows the heart rate per minute.
	Risk Category Index
	Irregular Heartbeat Detector
	Memory Average: Displays average of last 3 readings

If and any of the following letters and numbers appear in the area that systolic pressure should be displayed, an error has occurred with your reading. See the Troubleshooting section of this manual for more information.

	Excessive Body Motion Detected/Measurement Error: Wrap the cuff correctly and keep arm steady during measurement. Measure again.
	Air Circuit Abnormality: Check cuff connection. Measure again.
	Pressure Exceeding 300 mmHg: Turn the unit off to clear, then measure again.
	Error Determining Measurement Data: Measure again.
	System Error: Measure again.

INSTALLING BATTERIES

1. Press down on latch and lift the battery cover to open the battery compartment.
2. Install or replace 4 AA sized alkaline batteries in the battery compartment according to the indications inside the compartment.
3. Close the battery cover by pushing in the top end of the battery door.

Replace the batteries if:

• The weak battery symbol appears on the display.
• Nothing appears on the display when the power is switched on.

Note:

• Date and time will need to be reset if batteries are removed or replaced.
• Replace all batteries at one time (as simultaneous set). Use only 1.5V AA alkaline batteries. Use only the size and type of batteries specified.
• When installing batteries, observe proper +/- polarities. Incorrect installation of batteries may cause damage to the unit.
• When the batteries are removed, the measurement values stored in the memory are retained. However, the date and time must be reset.
• Remove batteries when unit is not in use for extended periods of time to prevent damage due to possible leakage.
• Clean contacts on battery and in battery compartment with a soft, dry cloth each time you install batteries.
• Batteries are hazardous waste. DO NOT dispose of them together with household garbage.
• DO NOT dispose of batteries in fire. Batteries may explode or leak.
• Recycle or dispose of properly in accordance with local, state, province, and country regulations.

USING THE AC ADAPTER

(NOT INCLUDED)
This monitor is designed for operation with batteries or an optional AC adapter. Please use only with compatible AC adapter with required voltage and current as indicated in this manual. Contact HoMedics Consumer Relations at 1-800-466-3342 to purchase a compatible AC adapter.
Note:

• When the AC adapter is your main power supply, make sure the adapter plug can be easily removed from the unit.
• Please unload the batteries when operating with an AC adapter for an extended period of time. Leaving the batteries in the compartment for a long time may cause leakage, which may lead to damage to the unit.
• No batteries are needed when operating with an AC adapter.
• Date and time will need to be reset if AC adapter is unplugged and unit is without batteries.

Connect the AC adapter with the AC adapter jack in the back of the unit as shown below.

DATE & TIME SET PROCEDURE

1. T o adjust the date and time, press the Date/Time set button.

2. The display will show a blinking number showing the MONTH. Change the MONTH by pressing the + button. Each press will increase the number by one in a cycling manner. Press the Date/Time set button again to confirm the entry, and the screen will show a blinking number representing the DAY.
3. Change the DAY, HOUR AND MINUTE as described in Step 2 above, using the + button to change the numbers and the Date/Time set button to confirm the entries.

USING THE ARM CUFF

Proper cuff size is critical to accurate measurement.
This monitor comes with 2 sizes of arm cuffs:
Standard: Fits 9"–13" (23 cm – 33 cm)
Large: Fits 13"–17" (33 cm – 43 cm)
The appropriate cuff is suitable for your use if the colored arrow falls within the solid color line as shown below.

1. If the cuff is not assembled, pass the end of the cuff furthest away from the tubing through the metal D-ring in order to form a loop. The smooth side without the felt material should be on the inside of the cuff loop.

2. Plug the cuff tube into the left side of the unit.

3. Open the arm cuff so that your arm may be placed through it.
4. Remove tight fitting clothing from your upper left arm so that the cuff can be wrapped around your exposed arm.
5. Position cuff edge 0.8-1.2 inches (2-3 cm) above elbow.

6. Center tube over middle of arm.

7. Pull the end of the cuff so that it tightens evenly around your arm. Press the hook and loop material together to secure. Allow room for 2 fingers to fit between the cuff and your arm.

8. Lay your arm on a table (palm upward) so the cuff is at the same height as your heart. Make sure the tube is not kinked.


Note:

• The device should not be used when your arm is wounded or injured.
• If it is not possible to fit the cuff to your left arm, it can also be placed on your right arm. However, all measurements should be made using the same arm.
• To use on the right arm, you must position the artery symbol over the main artery. Locate the main artery by pressing with 2 fingers approximately 1" (2 cm) above the bend of your elbow on the inside of your right arm. Identify where the pulse can be felt the strongest. This is your main artery.


MEASUREMENT PROCEDURE

Note:

• Blood pressure changes with every heartbeat and is in constant fluctuation throughout the day.
• Blood pressure measurement can be affected by the position of the user, his or her physiologic condition, and other factors.

Before measurement:
To help ensure an accurate reading, follow these instructions BEFORE taking a measurement:

• Wait 1 hour after exercising, bathing, eating, drinking beverages with alcohol or caffeine, or smoking.
• Sit quietly and rest for 15 minutes.
• Stress raises blood pressure. Avoid taking measurements during stressful times.
• Take your reading in a comfortable environment as measurements can be affected by hot or cold temperatures. Take your blood pressure at a normal body temperature.

During measurement:

• DO NOT talk or move your arm or hand muscles.
• DO NOT cross your legs. Sit with feet flat on the floor.
• DO NOT touch cuff or monitor during measurement.

If you are using this blood pressure monitor for the first time, please remove the protective film from the screen.

1. Press the User Select button to choose User 1 or User 2.

2. With the cuff wrapped around your arm, press the START/STOP button. Do not inflate the cuff unless it is wrapped around your arm. All digits will light up to check the display functions. The checking procedure will be completed after about 3 seconds.

3. After all symbols disappear, the display will show "00". The monitor is ready to measure and will automatically inflate the cuff to begin measurement. The cuff will then start deflating as measurement continues.

4. When the measurement is completed, the cuff will deflate entirely. Systolic pressure, diastolic pressure, and pulse will be shown simultaneously on the LCD screen. The measurement is then automatically stored into memory.


Note:

• If the monitor detects Excessive Body movement during the measurement, EE "error" will display on the screen. Keep arm steady and measure again.
• This monitor will reinflate automatically if the system detects that your body requires more pressure for measurement.
• This monitor automatically turns off approximately 1 minute after last operation. You may also press the START/STOP button to turn the unit off.
• To interrupt the measurement, you may press the START/STOP (recommended), MEMORY, User Select or Date/ Time SET button. The cuff will deflate immediately after a button is pressed.

RISK CATEGORY INDEX

This monitor comes equipped with a Risk Category Index that automatically compares each reading to defined levels established by the American Heart Association (AHA 2017) as described earlier in this manual, and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. No cue is given if the reading falls in the normal range as defined by AHA. Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to help you understand your noninvasive blood pressure reading as it relates to the AHA information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

IRREGULAR HEARTBEAT DETECTOR (IHB)

The appearance of the icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Usually this is not a cause for concern. However, if the symbol appears often, we recommend that you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Movement, shaking, or talking during the measurement can result in pulse irregularities that may cause the appearance of this icon. Therefore, it is of great importance to not move or talk during measurement.
To determine the presence of an irregular heartbeat, the average of the heartbeat intervals is calculated with the first 3 normal effective heartbeat values. It is important to note that the average is not a strict mathematical averaging of all recorded intervals. At least 3 beats with 25% or greater difference from the average heartbeat interval will generate the icon on the screen.

This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions, you should check with your physician before using your blood pressure monitor.

RECALLING VALUES FROM MEMORY

This monitor can be used by 2 individuals. Each user can store up to 60 measurements.

1. Press the User Select button to select User 1 or User 2.

2. Press the MEMORY button to access the memory.

3. The monitor will first display the calculated average applied to the last 3 memories.

4. Every new press of the MEMORY button will recall a previous reading. The latest reading will be recalled first.


CLEARING VALUES FROM MEMORY

1. Press the User Select button to select User 1 or User 2.

2. Press and hold the DATE/TIME Set buttons + at the same time while in memory recall mode, and the data for the selected user will be erased automatically.

   Note: Once deleted, your readings cannot be restored.

IMPORTANT NOTES REGARDING YOUR BLOOD PRESSURE MEASUREMENT

• Take your reading in a comfortable environment as measurements can be affected by hot or cold temperatures. Take your blood pressure at normal body temperature.
• DO NOT move or talk during measurement as this can elevate readings.
• DO NOT move or cross legs during measurement. Keep feet flat on floor.
• DO NOT touch cuff or monitor during measurement procedure.
• It is suggested that you take your measurements at the same time each day and use the same arm for consistency.
• Users should wait a minimum of 5 minutes before taking additional measurements. More time may be necessary depending upon your physiology.
• The measurement results that users receive are for reference only. If users have any blood pressure concerns, please consult a physician.
• Once inflation reaches 300 mmHg, the unit will deflate automatically for safety reasons.
• This device may have difficulty determining the proper blood pressure for pregnant women and for users with irregular heartbeat, diabetes, poor circulation of blood, kidney problems, or for users who have suffered a stroke.

CARE, MAINTENANCE, & CLEANING

• Clean the blood pressure monitor body and cuff carefully with a slightly damp, soft cloth. Do not press. Do not wash cuff or use chemical cleaner on it. Never use thinner, alcohol, or petrol (gasoline) as cleaner.
• Leaky batteries can damage the unit. Remove the batteries when the unit will not be used for a long time.
• Follow local ordinances and recycling instructions regarding disposal or recycling of the device and device components, including batteries.
• If the unit is stored near freezing, allow it to acclimate to room temperature before use.
• This blood pressure monitor is not field serviceable. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. If you have any problems with this device, please contact HoMedics Consumer Relations (contact information can be found in the Warranty section).
• DO NOT immerse the unit in water as this will result in damage to the unit.
• DO NOT subject the monitor or cuff to extreme temperatures, humidity, moisture, or direct sunlight. Protect from dust.
• DO NOT fold the cuff and tubing tightly.
• DO NOT disassemble the monitor or cuff. If in need of repair, refer to the Warranty section of this manual.
• DO NOT subject the monitor to extreme shocks (do not drop on floor).
• DO NOT inflate the cuff unless wrapped around arm.
• DO NOT wrap the cuff around body parts other than your arm.
• DO NOT drop or insert any object into any opening or hose.
• To avoid accidental strangulation, keep this product away from children. Do not drape tube around neck.
• This monitor may not meet its performance specifications if stored or used outside of these temperature and humidity ranges:
  • Storage/Transportation Environment
    Temperature:
    -13°F~158°F (-25°C~70°C)
    Humidity:
    less than 93% RH
  • Operating Environment
    Temperature:
    41°F~104°F (5°C ~40°C)
    Humidity:
    15% ~ 93% RH

TROUBLESHOOTING

If any abnormality arises during use, please check the following points:

Note: If the unit still does not work, contact HoMedics Consumer Relations. Under no circumstance should you disassemble or attempt to repair the unit by yourself. Contact information for HoMedics Consumer Relations Department can be found in the Warranty section.

SPECIFICATIONS

Power Source:	Four 1.5V DC AA alkaline batteries or 6V DC AC adapter (not included)
Measurement Method:	Oscillometric
Rated Range of Cuff Pressure:	0-300 mmHg
Rated Range of Determination:	40-280 mmHg
Measurement Range of Heart Rate:	40~199 Beats/Minute
Accuracy:	Pressure: ±3 mmHg Pulse: ±5% of reading
Pressure Sensor:	Semiconductor
Inflation:	Automatic inflation (air pump)
Deflation:	Automatic pressure release valve
Memory Capacity:	60 memories for each user (120 total)
Auto Shutoff:	1 minute after last button operation
Operation Environment:	Temperature: 41°F~104°F (5°C ~40°C) Humidity: 15% ~ 93% RH Atmospheric Pressure: 700~1060 hPa
Storage/Transportation Environment:	Temperature: -13°F~158°F (-25°C~70°C) Humidity: Less than 93% RH
Weight:	0.72 lbs (325 g) (without batteries)
Arm Circumference:	Standard size cuff: 9"–13" (23-33 cm) Large size cuff: 13"–17" (33-43 cm)
Dimensions:	5.9" (L) x 4.4" (W) x 2.2" (H) 149mm(L) x 111.5mm(W) x 57mm(H)
Product Life:	5 years (4 uses per day)
Accessories:	Standard and large size cuffs, instruction manual storage bag, 4 AA alkaline batteries
	Internally powered equipment Type BF equipment IP22 - Degrees of protection provided by enclosures Not suitable for use in the presence of flammable anesthetic mixture with air, oxygen or nitrous oxide. Continuous operation with short-time loading.
	Follow instructions for use.

Note: These specifications are subject to change without notice.

IMPORTANT PRODUCT NOTICES AND SAFETY INSTRUCTIONS

When using your blood pressure monitor, basic precautions should always be followed. Please read and follow all instructions and warnings before using this product. Save these instructions for future reference.

• Please note that this is a home health care product only and is not intended to serve as a substitute for the advice of a physician or medical professional.
• This device uses oscillometric method to measure systolic and diastolic blood pressure, as well as heart rate.
• DO NOT use this device for diagnosis or treatment of any health problem or disease. Measurement results are for reference only. Consult a health care professional for interpretation of pressure measurements. Contact your physician if you have or suspect any medical problem. Do not change your medications without the advice of your physician or health care professional.
• Proper cuff size is critical for accurate measurements. Follow the instructions in this manual and printed on the arm cuff to ensure the appropriate size of cuff is being used.
• This device may have difficulty determining the proper blood pressure for pregnant women and for users with irregular heartbeat, diabetes, poor circulation, kidney problems, or for users who have suffered a stroke. This product is not suitable for people with arrhythmias
• Not suitable for people undergoing intravenous injection on any limb and for those with pre-eclampsia.
• Those who have had a mastectomy surgery (especially when lymph nodes have been removed), it is recommended to take measurements on the unaffected side.
• The pulse display is not suitable for checking the frequency of heart pacemakers.
• When used along with other electronic medical equipment on the same arm, pressurization of the cuff may cause the other devices to temporarily malfunction.
• Electromagnetic interference: This device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g. cell phones, microwave ovens). These may lead to temporary impairment of measurement accuracy.
• Consider the electromagnetic compatibility of the device (ex. power disturbance, radio frequency interference etc.) Please use this device in a home health care environment only.
• Use blood pressure monitor only for its intended use.
• DO NOT wrap the cuff around body parts other than your arm.
• Not for use by or on persons under the age of 18.
• DO NOT use this device on infants, children, or those who cannot express their own intention.
• DO NOT plug or unplug the adapter power cord with wet hands.
• Excessive use may result in blood flow interference, which is likely to cause uncomfortable sensations, such as partial subcutaneous hemorrhage, or temporary numbness to your arm. In general, these symptoms should not last long. However, if you continue to experience these sensations, please seek advice from a medical professional.
• Please use only a 6V AC adapter (as specified in this manual) or 1.5V AA alkaline batteries.

Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/ stethoscope auscultatory method, within the limits prescribed by the American National Standard, manual, electronic, or automated sphygmomanometers.

For service or repair, do not return this unit to the retailer. Contact HoMedics Consumer Relations at:
Email: cservice@homedics.com
Phone: 1-800-466-3342
Business Hours: 8:30am-7pm EST Monday-Friday
