Shimano CS-HG40 - SCHEMA Manual

an
- group sprocket teeth combination: 11 -- 13 -- 15 -- 17 -- 20 -- 23 -- 26 -- 30 T
aw
-group sprocket teeth combination: 11 -- 13 -- 15 -- 18 -- 21 -- 24 -- 28 -- 32 T
ITEM SHIMANO
DESCRIPTION
NO. CODE NO.

Lock Ring (Black)

1 Y-1Z6 01000
Sprocket Wheel 11 T (Silver / Built in spacer type) for
Y-11F 11401
2
Sprocket Wheel 11 T (Silver / Built in spacer type) for
Y-11F 11491
* Y-11F 1340E Sprocket Wheel 13 T (Silver / Built in spacer type) for
3
* Y-11F 1349E Sprocket Wheel 13 T (Silver / Built in spacer type) for

Lock Ring Removal Tool (TL-LR15)

4 Y-120 09230
A: Same parts.
B: Parts are usable, but differ in materirals, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.

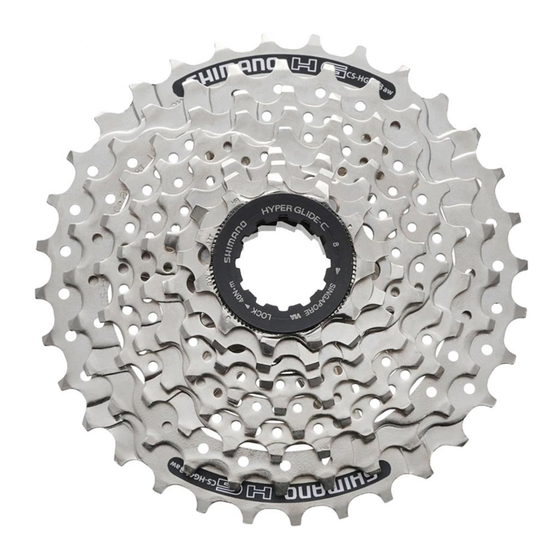

Cassette Sprocket
CS-HG40
-8I
3
an
aw
an
aw
8-Speed
an aw
/ -Group
2 1
TL-LR15
4
-group
-group
-group
-group
INTERCHANGE-
ABILITY
A B
B A
B A
B B
B B
A A
0608-2550A
