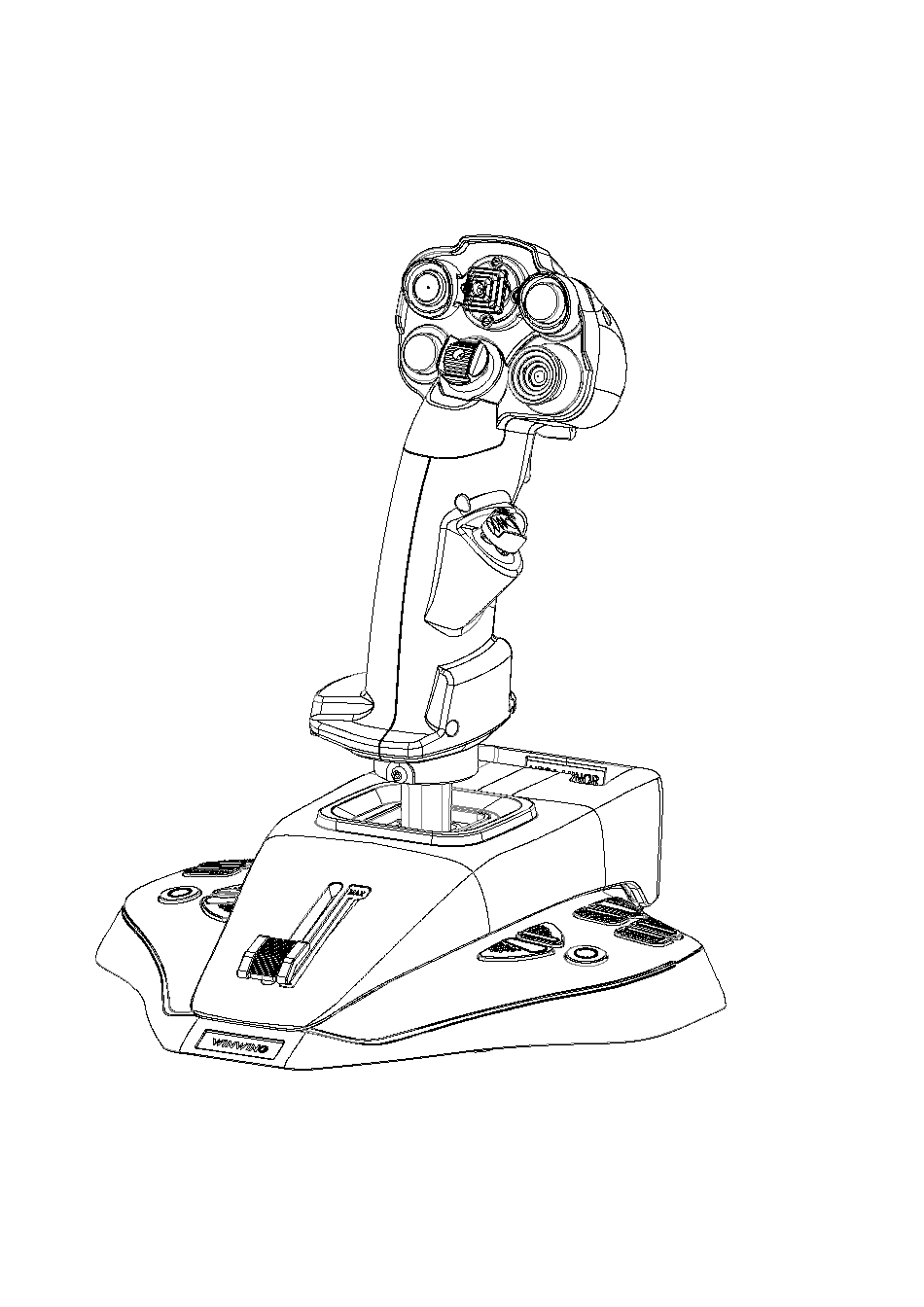

  • Page 1 URSA MINOR-Fighter-Joystick L User Manual V1.0 2024.06...
  • Page 2 Catalog Packing List ............................3 1 Parameters ............................4 1.1 Performance Parameters ............4 1.2 Applicable Models .............. 6 1.3 External dimensions ............7 1.4 Installation Dimensions ............8 2 Functions ............................9 2.1 Buttons and Functions ............9 3 Components Assembly and Disassembly .................15 4 Installation of Connectors .......................15 5 Installation Methods.........................
  • Page 3 ② Packing List ④ ①J5-BASE-BLACK+JGRIP-F1-L（1#） ② USB Cable（2#） ③ Tool Kit T1：2.0mm Hex Wrench T2：2.5mm Hex Wrench ④Accessory Kit M3*6 Hexagon Socket Screw（3#） M2.6*8 Hexagon Socket Self-Tapping Screw（4#） J5 Lock Plate 1（5#）...
  • Page 4 1 Parameters 1.1 Performance Parameters 15° -15° 15° -15° *Axis Movement Angle: ±15°, Operating Force: ~6N.
  • Page 5 -20° 20° *Z Axis Rotation Angle: ±20°, Rotation Torque: ~4kgf·cm.
  • Page 6 *Potentiometer Axis Available Physical Travel: 38mm, Operating Force: 35-135gf. 1.2 Applicable Models For independent use.
  • Page 7 1.3 External dimensions L*W*H:227mm*217mm*246mm; Wight:1.05Kg=2.31lb...
  • Page 8 1.4 Installation Dimensions *Note: The screw insertion depth must be greater than 6mm and less than 10mm. Screws need to be self-prepared and are not included in the accessory kit. * Unit: mm...
  • Page 9 2 Functions 2.1 Buttons and Functions 4095 4095 65535 *The grip is equipped with vibration function, with adjustable vibration intensity levels from 0 to 255.
  • Page 10 65535 65535 SIider 4095 *14 Button Switches: Press Force of 250gf, Press Travel of 0.25mm; Note: Please press the center of the keycap. Pressing too close to the edge may cause the keycap to get stuck.
  • Page 11 * Ambient Light: 1 cold white light path ①Logic in compatible status: In upgrade mode, it cycles on and off (on for 1 second, off for 1 second). In work mode, it flashes (on for 1 second, off for 1 second) 5 times after power on, then controlled by software, and the status light goes out after the computer enters sleep mode.
  • Page 12 2.2 Adjustment Methods Z Axis Locking: *Z-axis is adjustable: With a T1 (2.0mm) hex wrench, tighten the screw to lock the Z-axis, and remove the screw to achieve Z-axis rotation of ±20°.
  • Page 13 Y Axis Locking: * Flip the product to the bottom side, unfasten the clips and remove the bottom cover. 4#(X4) *As shown in the figure, use a T1 (2.0mm) hex wrench: Secure the 1 lock plate with 4 M2.6*8 self-tapping screws to lock the Y-axis, and remove the lock plate to achieve Y-axis rotation of ±15°. Note: Both the locking plate and self-tapping screws come with extras.
  • Page 14 X/Y Axis Damping Adjustment: * Flip the product to the bottom side, unfasten the clips and remove the bottom cover. * As shown, use T2 (2.5mm) hex wrench: Adjust screws A and B simultaneously to adjust X-axis damping (clockwise to increase, counterclockwise to decrease). Adjust screw C to adjust Y-axis damping (clockwise to increase, counterclockwise to decrease).
  • Page 15 3 Components Assembly and Disassembly 4 Installation of Connectors 5 Installation Methods 5.1 Desktop Mounting * As shown, remove the protective film from the bottom silicone pad and place it directly on the desktop. Note: Ensure the desktop is flat and clean. Glass and marble surfaces provide better anti-slip performance.
  • Page 16 5.2 Gaming Seat Mounting * Use two M5 screws to secure the product to a flat surface with holes from the bottom.. Installation holes are shown in 1.4 Installation Dimensions. Note: Screw insertion depth should be greater than 6mm but less than 10mm. Screws need to be self-prepared and are not included in the accessory kit.
  • Page 17 6 Calibration 6.1 X and Y Axes Joystick Calibration ①Open SimAppPro, click the device icon to enter the test page, and then click “Calibration”option. ②On the calibration page, click the two buttons below to start calibration, then move the joystick through its full range. ③After moving, let the joystick naturally return to the center, then click the two buttons below.
  • Page 18 ④At this point, the joystick calibration is complete. Return to the test page and observe if the data is normal. If there are abnormalities, please re-execute the calibration steps. 6.2 Z Axis Calibration ①Open SimAppPro, click the device icon to enter the test page, then click the "Calibration" option.
  • Page 19 ③After moving, let the Z-axis naturally return to the center, then click the two buttons below.
  • Page 20 ④At this point, the Z-axis calibration is complete. Return to the test page and observe if the data is normal. If there are abnormalities, please re-execute the calibration steps.
  • Page 21 6.3 Rx and Ry Axes Mini Joystick Calibration ①Open SimAppPro, click the device icon to enter the test page, then click the "Calibration" option. ②On the calibration page, click the two buttons below to start calibration, then move the mini joystick through its full range. ③After moving, let the mini joystick naturally return to the center, then click the two buttons below.
  • Page 22 ④At this point, the mini joystick calibration is complete. Return to the test page and observe if the data is normal. If there are abnormalities, please re-execute the calibration steps. 6.4 Slider Axis Calibration ①Open SimAppPro, click the device icon to enter the test page, then click the "Calibration" option.
  • Page 23 ③After moving, click the button below. ④At this point, the slider axis calibration is complete. Return to the test page and observe if the data is normal. If there are abnormalities, please re-execute the calibration steps.
