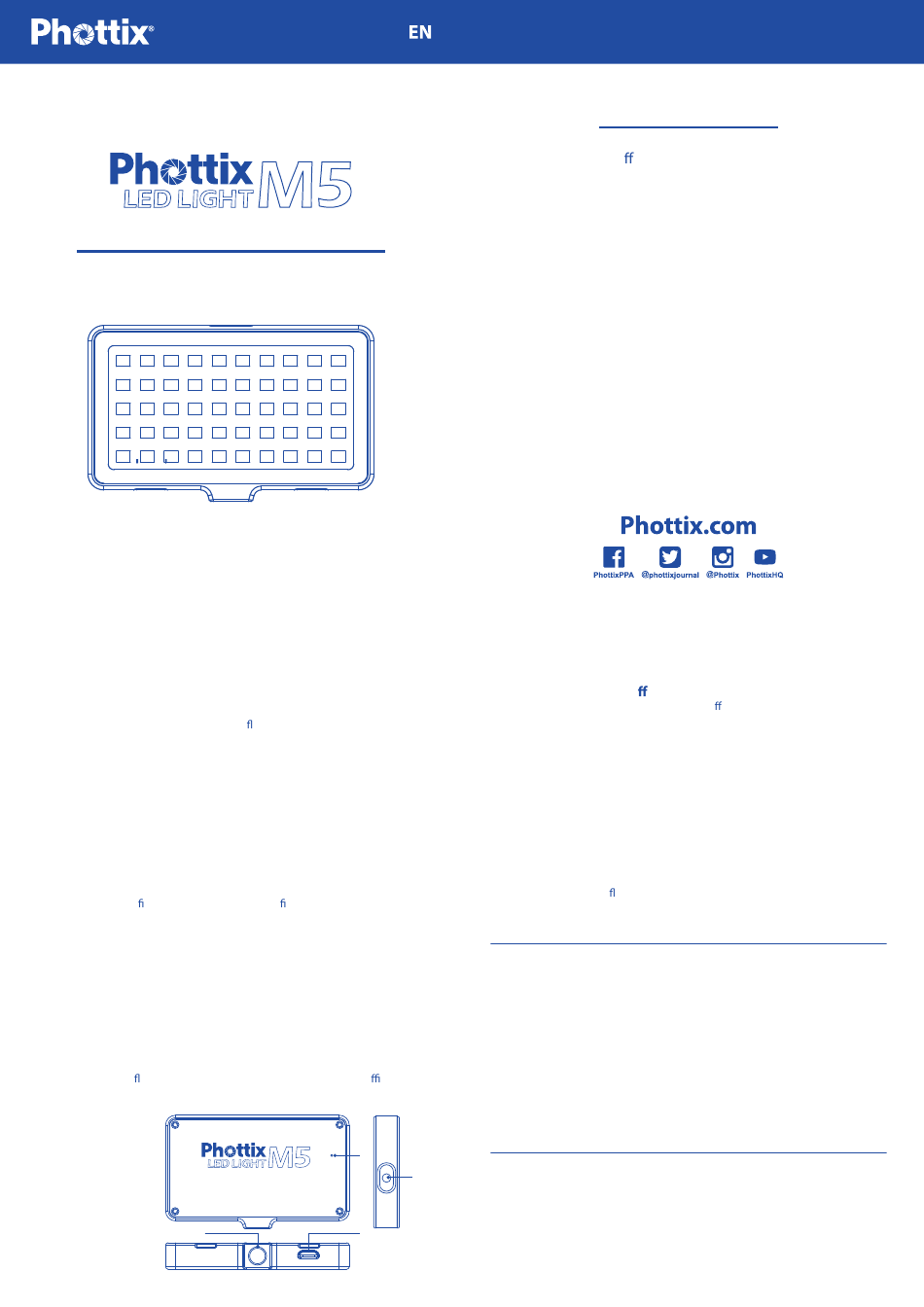

Phottix M5 Instruction Manual

Instruction Manual
Please note
• Do not shine the LED directly at people's eyes at short distances.
• Do not place the LED close to alcohol or ammable objects.
• Do not place liquids on or near the LED. The product is not water, splash or
dust resistant.
• Use a soft cloth and neutral cleaner to clean the LED light.
• Do not use strong cleaning agents or solvents such as thinner gasoline or
alcohol to clean the LED light.
• Do not store the LED at temperatures of +40C as high temperatures may
damage the product components.
• Do not use the LED in outdoors in direct sunlight for an extended period of
time to prevent the product from overheating and possible damage.
• Because of the built-in Lithium-Ion Battery - do not disassemble, crush or
incinerate.
• Please use the speci ed charger within the speci ed voltage and temperature
range.
• To keep the battery in proper working order use the product and charge the
battery at least once per month.
• If left unused for a long period of time recharge before using.
• Lithium-ion battery cells lose capacity over a product's lifetime. Performance
will be reduced.
• In non-emergency situations, it is not recommended to use the LED while
charging.
Features
The Phottix M5 LED is a compact light source for still and video photography.
It uses the latest in icker-free LED technology, making it more e cient and
durable.
Parts
1. Indicate LED
2. Push button
3. Micro USB port
4. ¼"screw mounting
4.
1.
3.
1.
Phottix o ers warranty service and / or
replacements that comply with local regulations.
For full information see: phottix/warranty
Turning Power On / O
Press and hold Push button to power on / o Phottix M5.
Brightness adjustment
Press Push button to change brightness with 4 steps.
Cold Shoe Adapter Installation
1. Align the Cold Shoe Adapter with the threaded lug on Phottix M5.
2. Turn the lock screw clockwise to attach the Adapter to the Phottix M5.
Charging the Phottix M5
The Phottix M5 will charge from 5V Micro USB input.
1. Attach the appropriate cable to the Phottix M5.
2. Attach the cable to a USB power source.
3. Indicate LED will be ashing while being charged.
Tech Specs
Color temperature:
Brightness range:
Max. brightness / illuminance:
Max. Power:
Color rendering index:
Battery Capacity:
Charging / Input power:
Dimension:
Weight:
What's included
1. M5 LED Panel unit
2.
2. Micro USB recharge cable
3. Cold shoe adaptor
4. Smartphone clip
Warranty Card
Keep this card - DO NOT LOSE.
Printed in China
6600K (±500K)
4 steps
440 Lux @ 0.5m
3.5W
95+
3.7V 500mAh
5V 500mA Micro USB
72 x 41 x 10.5mm
44g
2.
