TCi -510VA User Manual

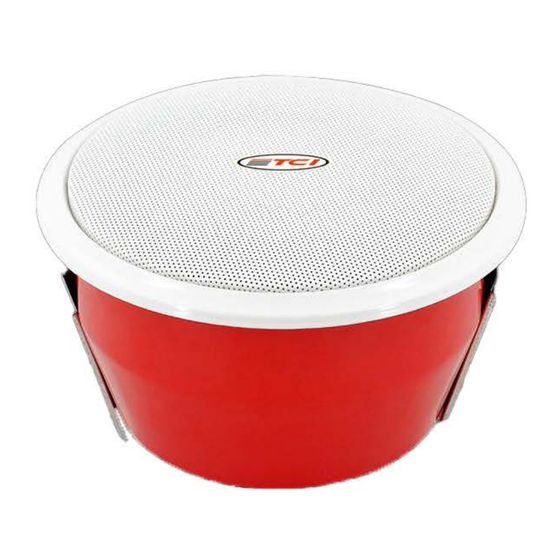

Fireproof ceiling speaker

Download this manual

Dimension:

Installation Steps:

Step 1

Step 1: First measuring

tools, measuring

speaker mounting hole bit. Mounting

holes and then mask bit must be less

than the speakers on both sides of iron

fittings, push to the loudspeakers, so

that speakers on both sides of metal

plates into a 90-degree vertical.

Step 3

Step 3: When the speaker stand up to the ceiling

of the mask, the metal plates on both sides

of the speaker to change less than 90-degree

angle. Speakers on both sides of metal plates

so that the ceiling caught

FIREPROOF CEILING SPEAKER TCI-510VA

Step 2

Step 2: The speaker to the ceiling mounting

holes a good push.

Step 4

Step 4: This is the net effect of speaker

installation.

Fireproof Ceiling Speaker

TCI-510VA

User's Manual

Need help?

Do you have a question about the TCI-510VA and is the answer not in the manual?

Page 1 FIREPROOF CEILING SPEAKER TCI-510VA Dimension: Fireproof Ceiling Speaker Installation Steps: Step 1 Step 2 Step 1: First measuring tools, measuring Step 2: The speaker to the ceiling mounting speaker mounting hole bit. Mounting holes a good push. holes and then mask bit must be less...
Page 2 FIREPROOF CEILING SPEAKER TCI-510VA FIREPROOF CEILING SPEAKER TCI-510VA Features: Dear customers: Your use of the this speaker series,we would like to extend my heartfelt thanks to you, the commitment to keep its quality. Our speakers are widely used for hotels, commercial buildings, supermarkets, schools, leisure Comply with fire prevention standard ※...
