Dimension:
Φ145
Φ160
Installation Steps:
Cut Ceiling Hole
1
3
Retract the 2 Snap Clamps on the speaker
into their open position.
Then push the speaker up through the
ceiling opening.
When Clamp Arms press against the
ceiling, the Snap Clamps will rotate and
clamp down closed to the ceiling surface.

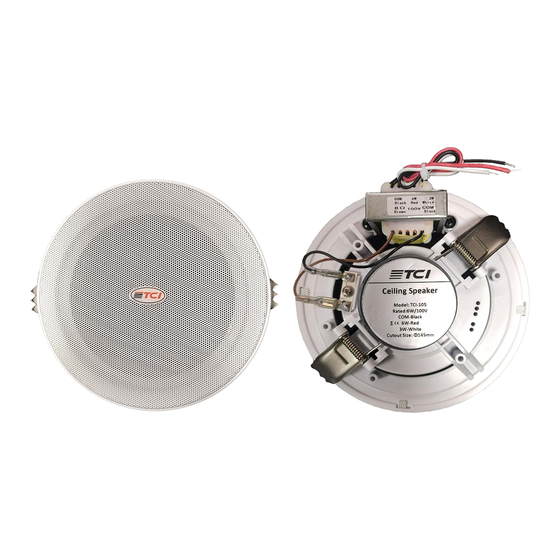

CEILING SPEAKER TCI-105
Φ160mm
┐╠╚ 25.400
Connect Wiring
2
4
When inserted correctly, both 2
SnapClamps will be in the snap down
position,thus securing the speaker
securely into position in the ceiling.
Ceiling Speaker
TCI-105
User's Manual
Advertisement
Related Manuals for TCi TCI-105
Summary of Contents for TCi TCI-105
- Page 1 CEILING SPEAKER TCI-105 Dimension: Φ160mm Φ145 Ceiling Speaker Φ160 ┐╠╚ 25.400 Installation Steps: TCI-105 Cut Ceiling Hole Connect Wiring User’s Manual Retract the 2 Snap Clamps on the speaker When inserted correctly, both 2 into their open position. Then push the speaker up through the SnapClamps will be in the snap down ceiling opening.
- Page 2 CEILING SPEAKER TCI-105 CEILING SPEAKER TCI-105 Dear customers: Your use of the this speaker series,we would like to extend my heartfelt thanks to you, the commitment to keep its quality. Our speakers are widely used for hotels, commercial buildings, supermarkets, schools, leisure General Specification and entertainment venues, is your ideal choice.
