Removal of the lower and upper burner and installation of the injector to the
gas oven

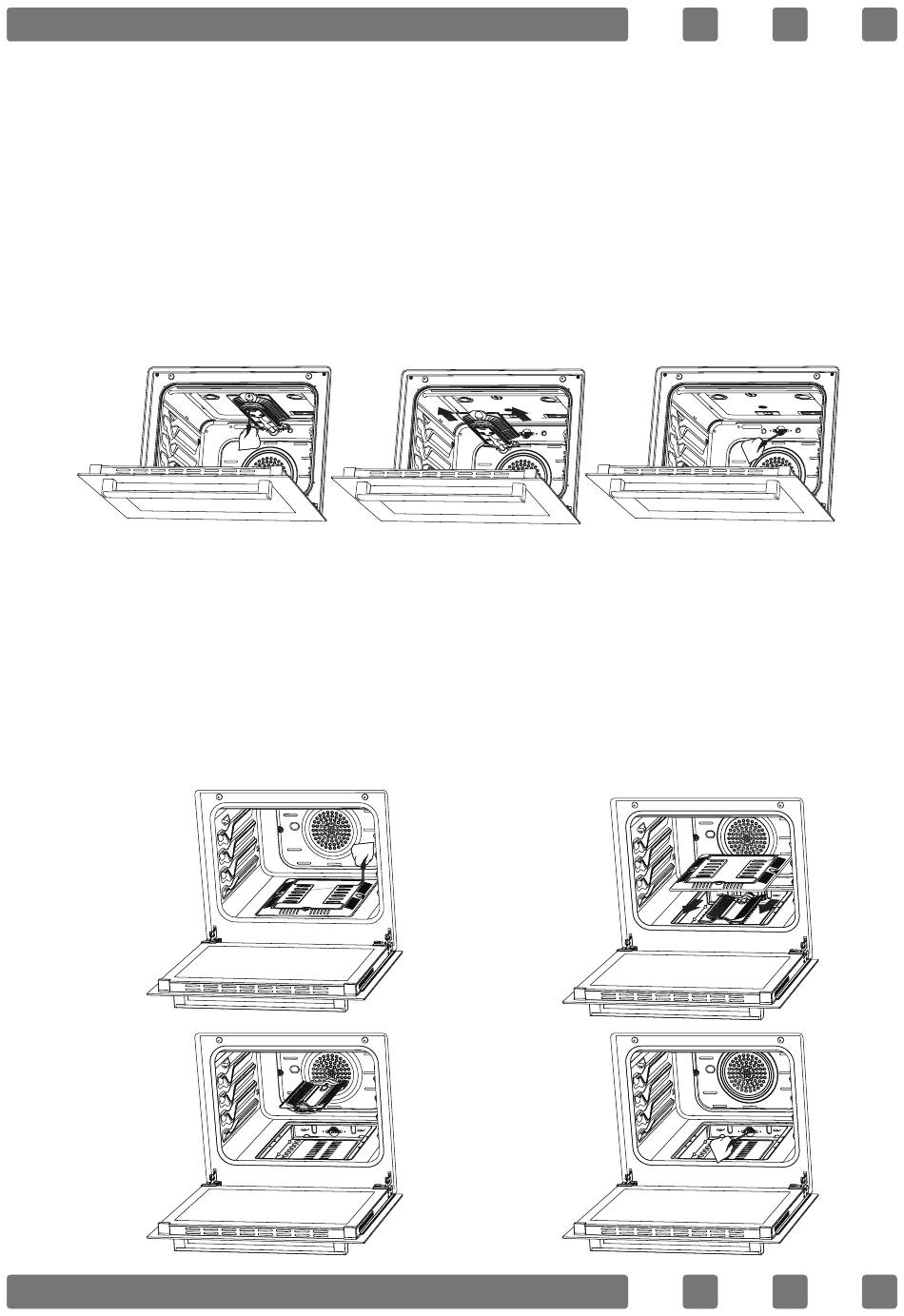

Removal of the upper burner:
With the help of a screw driver, remove the screw as shown in figure 7.
As shown in figure 8, remove the burner from its place by pulling it to
yourself. As shown in figure 9, remove the injector in the bearing with a
socket wrench. In order to re-place the burner, apply the removal process
reversely.
Figure 7
Removal of the lower burner:
The lower burner door has been fixed with two screws. As shown in
figure 10, remove it with the help of a screw driver. Remove the door by
pulling upwards as shown in figure 11. Remove the burner from its place
by pulling it to yourself as shown in figure 12. As shown in figure 13, remove
the injector in the bearing with a socket wrench. In order to replace the
burner, apply the removal process reversely.
Figure 10
Figure 12
Figure 8
Figure 11
Figure 13
