LUNA2000-2.0MWH and 1.0MWH Series Smart
String ESS
User Manual

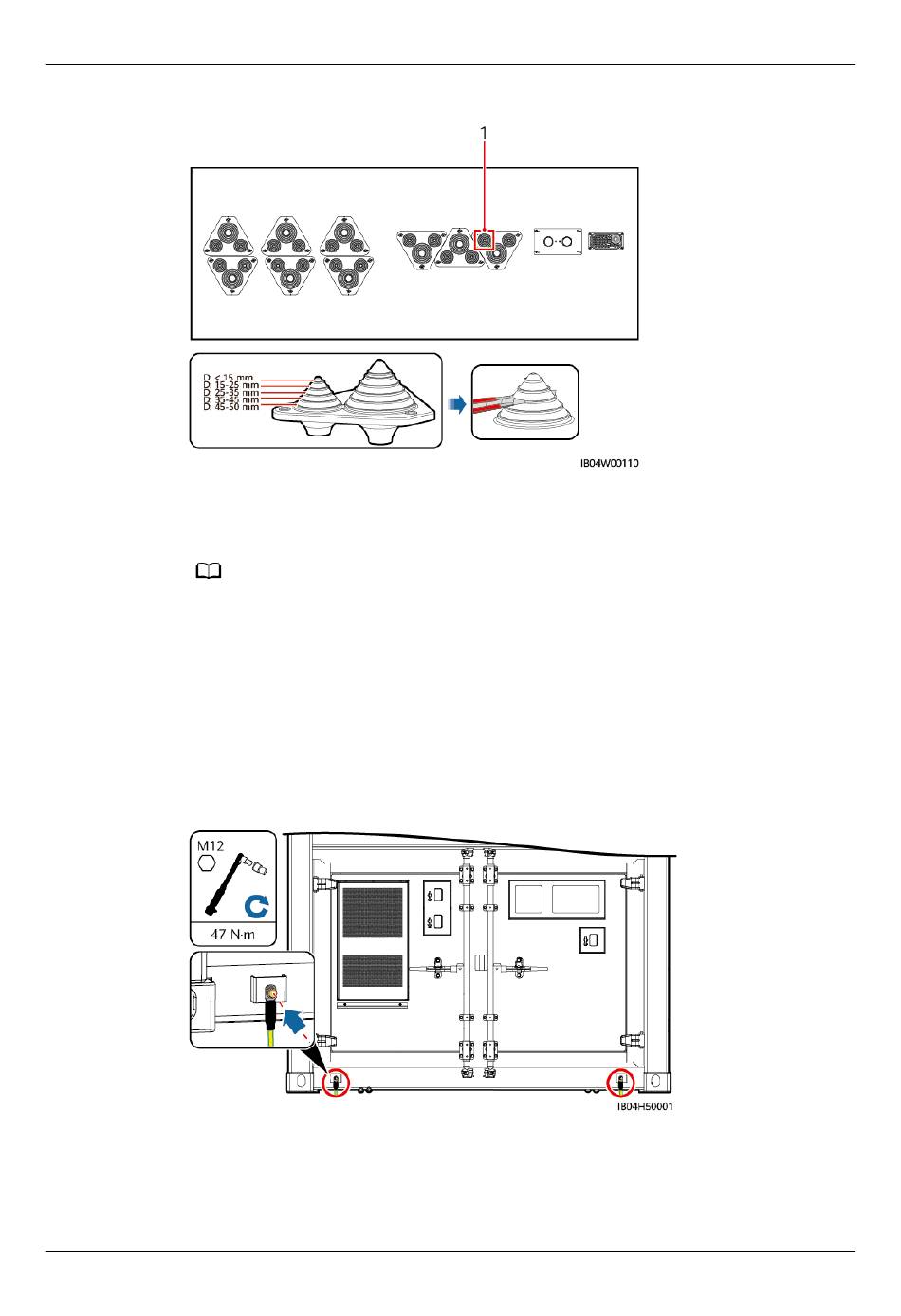

Figure 5-6 Position of the ground cable hole and pagoda connector cutting
(1) Ground cable hole
Step 2 (Optional) Connect ground cables/ground lugs to the ground points of the ESS
enclosure.
●
Figure 5-7 Installing ground cables
●
Issue 17 (2024-05-10)
NO TE
The position for cutting the pagoda connector is for reference only. The actual cable usage
may vary.
Connect ground cables to the ground points of the ESS using M12x30
stainless steel bolt assemblies. The ground cables can be routed through
plastic-coated metal hoses based on site requirements.
Connect ground lugs to the ESS ground points using M12x30 stainless steel
bolt assemblies.
Copyright © Huawei Technologies Co., Ltd.
5 Installation
132
