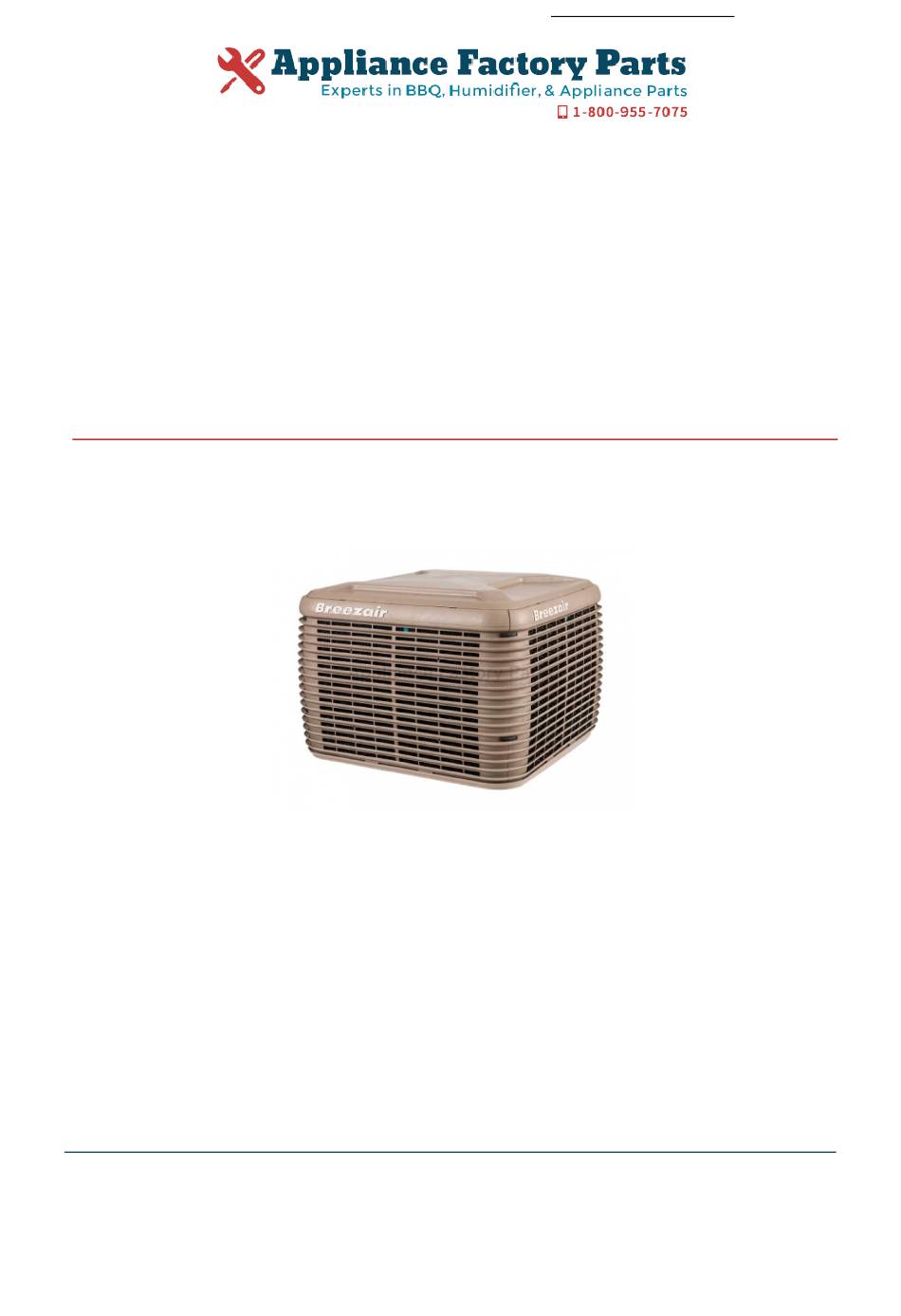

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Breezair TBS500 Owner's Manual Shop genuine replacement parts for Breezair TBS500 Find Your Breezair Evaporative Cooler Parts - Select From 59 Models -------- Manual continues below --------...
- Page 2 INSTALLATION MANUAL TBQ / TBS Evaporative Cooler Original English Instructions...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY QUICK GUIDE COOLER LOCATION REMOVING THE VENTURI REMOVING THE TRANSITION PREPARING THE DROPPER MOUNTING THE DROPPER SECURING THE DROPPER & TRANSITION WEATHER DAMPER CONVEYING THE COOLER TO THE ROOF MOUNTING THE COOLER CABLE INSTALLATION ELECTRICAL REQUIREMENTS WATER REQUIREMENTS WATER MANAGEMENT INSTALLING THE DRAIN VALVE... -
Page 4: Safety
(Call someone on the ground? Mobile phone? etc.). Seeley International provides the following information as a • What condition is the roof in? Should the trusses, underside guide to contractors and employees to assist in minimising risk or surface be checked? whilst working at height. -
Page 5: Quick Guide
QUICK GUIDE Step 1 Step 2 Step 3 SAFETY COOLER LOCATION REMOVE VENTURI Read & understand the safety section. Check cooler location. Consider Press the clip on both sides of the venturi regulations. Discuss with customer. to release. Page 3 Page 6 Page 6 Step 7... - Page 6 QUICK GUIDE cont Step 4 Step 5 Step 6 REMOVE TRANSITION PREPARE THE DROPPER MOUNT DROPPER Press the clips inwards to release the Position, level and secure the dropper. transition from the tank. Flash the dropper to prevent water ingress into the roof cavity. Page 6 Page 7 Page 7...
-
Page 7: Cooler Location
COOLER LOCATION REMOVING THE VENTURI Check proposed cooler location to ensure it is structurally Once the pad frames have been removed, detach the venturi capable of supporting the weight of the cooler. If the roof is and fan assembly. structurally inadequate, provide an alternate load bearing Disengage the two venturi clips as shown. -
Page 8: Preparing The Dropper
PREPARING THE DROPPER SECURING THE DROPPER & TRANSITION The 550 x 550mm / 21.7 x 21.7” dropper duct must have a raw Fit the transition onto the dropper as shown. Ensure that it edge or safe edge at the top. Do not fold in a flange as this may is oriented correctly, as shown by the engraved detail on the interfere with the transition and/or weatherdamper. -
Page 9: Weather Damper
WEATHER DAMPER CONVEYING THE COOLER TO THE ROOF Break off both clips on the transition that retain the Caution! Do not take risks when raising the cooler to the roof weatherdamper. for installation. Use safety equipment, appropriate procedures and always have assistance. Ensure that the weatherdamper flaps open all the way and do not interfere with the dropper or any screws. -
Page 10: Mounting The Cooler
MOUNTING THE COOLER CABLE INSTALLATION cont. Once the cooler is on the roof, carefully lift the assembly onto Your installation kit includes the power cable with ends ready to the transition and into place. The assembly will only fit onto terminate, and control cable. -
Page 11: Electrical Requirements
Installation of the cooler water supply must conform to regulations and standards. local plumbing rules, regulations and standards. Important! It is a requirement of Seeley International that all The following specifications for the cooler water Breezair coolers be connected to a dedicated circuit to the... -
Page 12: Water Management
WATER MANAGEMENT INSTALLING THE WATER SENSOR You have the choice of installing a water management Assemble the water sensor as shown by clipping the sensor to the system including a drain valve, water sensor and inlet tank. Ensure that the clip fully engages. solenoid;... -
Page 13: Installing The Inlet Solenoid
INSTALLING THE INLET SOLENOID INSTALLING THE FLOAT VALVE Screw the solenoid valve into the extension tube. Assemble the float valve to the cooler as shown. The water solenoid is required to be installed in the direction of Ensure all washers and o-rings are in place. No thread tape is flow as per the arrow indicator on the solenoid. -
Page 14: Installing The Venturi / Fan Assembly
INSTALLING THE VENTURI / FAN ASSEMBLY ELECTRICAL CONNECTION Connect the motor cable to the base of the electronics module. It is a polarised plug and will only insert one way. Ensure it is secured fully so that its retention clips are engaged. With both cables in place (inside the channel), re-assemble the electronics module and screw it to the tank. -
Page 15: Connecting The Water Pump
ELECTRICAL CONNECTION CONNECTING THE WATER PUMP cont Route the pump cord as shown. Connect the water sensor plug (D) and inlet solenoid plug (C) as shown. If not using a water sensor, then ensure that a shorting plug is fitted as provided. LEGEND A - Control Cable B - Speed Adjustment... -
Page 16: Connecting The Magiqtouch Controller
CONNECTING THE MAGIQTOUCH SETTING THE WATER LEVEL cont CONTROLLER ® Turn on the mains water supply to the cooler. Refer to the installation manual provided with the MagIQtouch Turn the cooler on at the Controller, in “COOL” mode. Controller for instructions on installing the controller. Adjust set temperature slider to be close to current room The wall control cable plugs into the electronics module - (A). -
Page 17: Fault Codes Indicated By Led's On The Electronics Module
FAULT CODES INDICATED BY LED’s ON COMMISSIONING THE COOLER THE ELECTRONICS MODULE TEST OPERATION Fault Code 01 (1 Red Flash) = Communication Failure. Check that the green light on the electronics module is on and • Ensure the wall control cable is fitted correctly. double flashing every 2 seconds. -
Page 18: Commissioning Completion Checklist
COMMISSIONING COMPLETION CHECKLIST COMMISSIONING COMPLETION CHECKLIST cont COOLER DUCTWORK □ SECURE - The cooler is secure and level on the dropper □ NO LEAKS - All ducts are hung correctly and there are no air using all fixings supplied. leaks. □... -
Page 19: Adjusting Cooler Settings
ADJUSTING COOLER SETTINGS ADJUSTING COOLER SETTINGS cont PRE-WET Within the SETTINGS menu of the MagIQtouch Controller is the COOLER sub-heading. Here various settings of the cooler can When COOL mode is activated, the pump will run for 90 be adjusted. seconds before the fan is switched on. -
Page 20: Trouble Shooting
TROUBLE SHOOTING Symptom Cause Action Inadequate cooling Under-sized cooler. Replace with larger cooler. Under-sized ducts. Carry out cooling load design to determine correct size unit, ducting and outlets required. Clogged or dirty cooling pads. Clean or replace pads. Dry pads or lack of water while cooler is operating. Check water distribution system for possible obstruction in hoses. - Page 21 SEELEY INTERNATIONAL (AMERICAS) LTD 1202 NORTH 54TH AVENUE, BUILDING 2, SUITE 117, PHOENIX, ARIZONA 85043, USA It is the policy of Seeley International to introduce continuous product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected.
