Homedics BKL-100, BKL-100-2 Manual

Instructions for Use

Adaptor Instructions

Insert adaptor plug into the control pad. (Fig. 1)

Fig.1
Plug into a AC 120-volt outlet.
Place massager behind back to desired position. (Fig. 2)

Fig.2
To activate the massage action, press the massage button on the control pad. (Fig. 3)

Fig.3
Press once for high speed, a second time for low, and press again to turn the unit off.
To activate the heat function, with massage running, press the heat button on the control pad. (Fig. 3) The LED illuminator will glow red.
To turn off the heat function, simply press the heat button again.

Optional Battery Instructions

warning Please note: Batteries will only operate the massage function. You must use the adaptor to activate the heat function.

Locate the zipper on the back of the unit.
Unzip to expose the battery compartment, remove lid. (Fig. 4)

Fig.4
Insert 4 "AA" batteries. (Proper battery orientation is noted inside the battery compartment housing.)
Replace the cover and zip the back portion back up, making sure both zipper ends are touching each other to ensure zipper is closed properly.
To activate massage, follow steps 3 – 5 from adaptor instructions.

warning Note: The micropedic™ bead pouches are designed to provide cushioning for extra support.

warning NOTE: There is a 15-minute auto shut off on the unit for your safety.

Strapping System

This back lumbar massager incorporates a unique strapping system which allows you to fasten it to most any chair. Pull strap from left and right sides around the chair and fasten with the clips.

Automatic Shut Off

The massager has been designed for convenience and safety. As a special precaution against falling asleep while using the unit, or leaving the unit on while it is still in operation, we've programmed it to automatically stop working 15 minutes after receiving your last command. This special feature should not be considered as a substitute for OFF. Always remember to turn your unit off when not in use.

Maintenance

All servicing of this massager must be performed by authorized HoMedics service personnel only.

To Store

Place massager in its box or in a safe, dry, cool place. Avoid contact with sharp edges or pointed objects. To avoid breakage, DO NOT wrap the power cord around the unit. DO NOT hang the unit by the controller cord.

To Clean

Unplug the unit and allow it to cool before cleaning. Clean only with a soft, slightly damp sponge. NEVER allow water or any other liquids to come into contact with the unit.

DO NOT immerse in any liquid to clean.
Never use abrasive cleaners, brushes, or strong chemicals that might or might not be flammable and/or damaging to the product to clean.
DO NOT attempt to repair the massager. There are no user serviceable parts. For service, send the unit to the HoMedics address listed in the warranty section.

warning Please note: Not recommended for use against wooden surfaces as the zipper may damage the wood. Caution is also recommended when using against upholstered furniture.

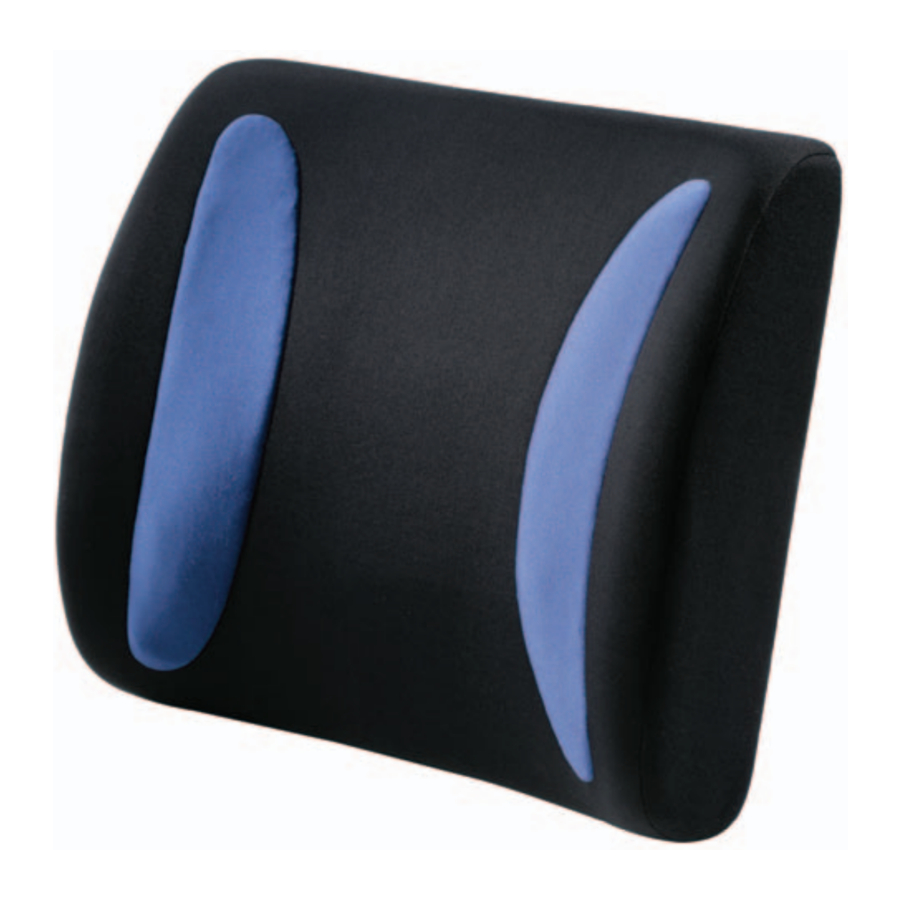

Lumbar Back Massager with Heat: Parts and Features

Parts and Features

warning NOTE: When selecting the heat feature with massaging action, there will be a slight decrease in the strength of the massage output. This adjustment is perfectly normal and should not be interpreted as a defect.

SERVICE & WARRANTY

HoMedics Service Center
1.800.466.3342 8:30 – 5:00 p.m. (EST ) M – F

Mail To:
HoMedics
Service Center Dept. 168
3000 Pontiac Trail Commerce Township, MI 48390

Email: cservice@homedics.com

LIMITED ONE YEAR WARRANTY
To obtain warranty service on your HoMedics product, mail the product and your dated sales receipt (as proof of purchase), postpaid, to the following address:
HoMedics Consumer Relations
Service Center Dept. 168
3000 Pontiac Trail
Commerce Township, MI 48390
No COD's will be accepted.

For more information regarding our product line in the USA, please visit: www.homedics.com

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS BEFORE USING

TO REDUCE THE RISK OF ELECTROCUTION:

ALWAYS unplug the appliance from the electrical outlet immediately after using and before cleaning.
DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
DO NOT use while bathing or showering.
DO NOT place or store appliance where it can fall or be pulled into a tub or sink. DO NOT place in or drop into water or other liquid.

TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE OR INJURY TO PERSONS:

An appliance should NEVER be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts or attachments.
Close supervision is necessary when this appliance is used by, on or near children, invalids or disabled persons.
DO NOT use outdoors.
Use this appliance only for its intended use as described in this manual.
DO NOT carry this appliance by the power cord or use the cord as a handle.
NEVER operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to HoMedics Service Center for examination and repair.
Keep cord away from heated surfaces.
NEVER use while sleeping or fall asleep while using the massager.
NEVER drop or insert any object into any opening.
DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
DO NOT use on or near eyes or other highly sensitive areas.
DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electrocution or injury to persons.
To disconnect, turn all controls to the "OFF" position, then remove plug from outlet.
This appliance is designed for household use only.
Use heated surfaces carefully. May cause serious burns. DO NOT use over insensitive skin areas or in the presence of poor circulation. The unattended use of heat by children or incapacitated persons may be dangerous.

In case of pregnancy, diabetes, pacemaker use, illness or any medical condition, consult your doctor before using massager.

SAVE THESE INSTRUCTIONS

Please read all instructions carefully before operating.

If you have any concerns regarding your health consult your doctor before using this product.
In case of pregnancy, diabetes, pacemaker use, illness or any medical condition, consult your doctor before using massager.
NEVER leave the appliance unattended, especially if children are present.
NEVER cover the appliance when it is in operation.
DO NOT use this product for more than 15 minutes at a time.
Extensive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
NEVER use this product directly on swollen or inflamed areas or skin eruptions.
This product is a non-professional appliance designed to provide soothing massage to worn muscles. DO NOT use this product as a substitute for medical attention.
DO NOT use this product before bed. The massager has a stimulating effect and can delay sleep.
NEVER use this product while in bed.
This product should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls.
This unit should not be used by children or invalids without adult supervision.

Battery Precautions

Use only the size and type of batteries specified.
When installing batteries, observe proper +/- polarities. Incorrect installation of batteries may cause damage to the unit.
Do not mix different types of batteries together (e.g., alkaline with carbon-zinc or old batteries with new ones).
If the unit is not going to be used for a long period of time, remove batteries to prevent damage due to possible battery leakage.
