- Page 1 Fridge-freezer KIV86.. KIV87.. [en] User manual...
- Page 2 Table of contents Safety .......... 4 Additional functions ..... 16 General information...... 4 Super function ........ 16 Intended use........ 4 Alarm.......... 16 Restriction on user group.... 4 Door alarm ........ 16 Safe transport ........ 5 Safe installation ........ 5 Refrigerator compartment .... 16 Safe use ........... 6 Tips for storing food in the refri- Damaged appliance ...... 8...
- Page 3 Storage and disposal.... 25 Switching off the appliance .... 25 Disposing of old appliance .... 25 Customer Service...... 26 Product number (E-Nr.) and pro- duction number (FD) ...... 26 Technical data ....... 26...
- Page 4 en Safety Safety Observe the following safety instructions. General information You can find general information for this instruction manual here. ¡ Read this instruction manual carefully. ¡ This manual is intended for the user of the appliance. ¡ Follow the safety instructions and warnings. ¡...
- Page 5 Safety en Safe transport Follow these safety instructions when transporting the appliance. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lif- ted. ▶ Do not lift the appliance on your own. Safe installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of electric shock! ¡...
- Page 6 en Safety WARNING ‒ Risk of explosion! If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air. ▶ Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING ‒ Risk of fire! ¡...
- Page 7 Safety en WARNING ‒ Risk of explosion! ¡ Mechanical devices or other devices may damage the refri- geration circuit; flammable refrigerant may escape and ex- plode. ▶ To accelerate the defrosting process, do not use any other mechanical devices or devices other than those recommen- ded by the manufacturer.
- Page 8 en Safety CAUTION ‒ Risk of harm to health! ¡ To prevent food from being contaminated, you must observe the following instructions. ▶ If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compart- ments of the appliance.
- Page 9 Safety en WARNING ‒ Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite. ▶ Keep naked flames and ignition sources away from the ap- pliance. ▶ Ventilate the room. ▶ "Switch off the appliance." → Page 15 ▶...
- Page 10 en Preventing material damage Saving energy Preventing material damage Preventing material dam- If you follow these instructions, your appliance will use less power. Follow these instructions to prevent Preventing material damage Selecting the installation location material damage to your appliance, Follow these instructions when in- accessories or other objects in your stalling your appliance.
- Page 11 Installation and connection en Criteria for the installation Installation and connection Installation and connec- location tion Follow these instructions when in- Installation and connection stalling your appliance. Scope of delivery WARNING After unpacking all parts, check for Risk of explosion! any transport damage and for com- If the appliance is in a space that is pleteness of delivery.
- Page 12 en Installation and connection If an appliance with climate class SN Insert the mains plug of the appli- is operated at colder room temperat- ance's power cable in a socket ures, the appliance will not be dam- nearby. aged up to a room temperature of The connection data of the appli- 5 °C.
- Page 13 Familiarising yourself with your appliance en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Familiarising yourself with your appliance Appliance You can find an overview of the parts of your appliance here. Refrigerator compartment Control panel Freezer compartment...
- Page 14 en Features Note: Deviations between your appli- Rating plate ance and the diagrams may differ Frozen food container with regard to their features and size. Door storage compartment for large bottles Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
- Page 15 Basic operation en side of the appliance at temperatures Basic operation Basic operation of approx. 8 °C to 12 °C, e.g. pine- apple, bananas, citrus fruits, cucum- You can find out everything you need Basic operation bers, courgettes, peppers, tomatoes to know about operating your appli- and potatoes.
- Page 16 en Additional functions The recommended temperature in Switching off Super function the refrigerator compartment is Press . ▶ 4 °C. → ""OK" sticker", Page 17 Alarm Alarm Setting the freezer compartment temperature Your appliance is equipped with Alarm In order to set the freezer compart- ▶...
- Page 17 Freezer compartment en ¡ Observe the best-before date or Once the appliance is switched on, it use-by date specified by the manu- may take up to 12 hours until the set facturer. temperature is reached. ¡ Store food well wrapped or covered. ¡...
- Page 18 en Freezer compartment ¡ Place the food over the whole area Prerequisites for freezing capacity of the compartments or the frozen Approx. 24 hours before placing food containers. fresh food in the appliance, switch ¡ Do not bring food which is to be on Super function.
- Page 19 Defrosting en Shelf life of frozen food at Defrosting Defrosting −18 °C Observe the information when you Defrosting Observe the storage times when you want to defrost your appliance. freeze food. Defrosting in the refrigerator Food Storage time compartment Fish, sausages, prepared up to 6 months meals and baked goods When the appliance is operating,...
- Page 20 en Cleaning and servicing Remove the frozen food container Unplug the appliance from the with the frozen food and temporar- mains or switch off the circuit ily place it in a cool location. Place breaker in the fuse box. ice packs (if available) on the Take out all of the food and store it frozen food.
- Page 21 Cleaning and servicing en ¡ If you clean fittings and accessor- Removing the fittings ies in the dishwasher, this may If you want to clean the fittings thor- cause them to become deformed oughly, remove these from your ap- or discolour. pliance.
- Page 22 en Cleaning and servicing Lift the fruit and vegetable con- tainer and remove it . Removing the frozen food container Take out the frozen food container as far as it will go. Lift the frozen food container at the front and remove it ...
- Page 23 Troubleshooting en Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶...
- Page 24 en Troubleshooting Fault Cause Troubleshooting The base of the refrigerator The condensation channel "Clean the condensation channel ▶ and the drainage hole." → Page 21 compartment is wet. or drainage hole are blocked. The temperature differs Different causes are pos- "Switch off the appliance." → Page 15 greatly from the setting.
- Page 25 Storage and disposal en To ensure the ventilation inside the Conducting an appliance self- appliance, leave the appliance test open. "Switch off the appliance." Disposing of old appliance → Page 15 "Switch the appliance back on Valuable raw materials can be re- after approx. five minutes." used by recycling.
- Page 26 en Customer Service warranty for private consumers) in Customer Service Customer Service the European Economic Area is 2 years according to the terms of war- If you have any queries, are unable to Customer Service ranty applicable to the location. The rectify faults on the appliance your- terms of warranty do not affect other self or if your appliance needs to be...
- Page 27 Technical data en of printing its web address had not yet been published. Please then fol- low the instructions on searching for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate.

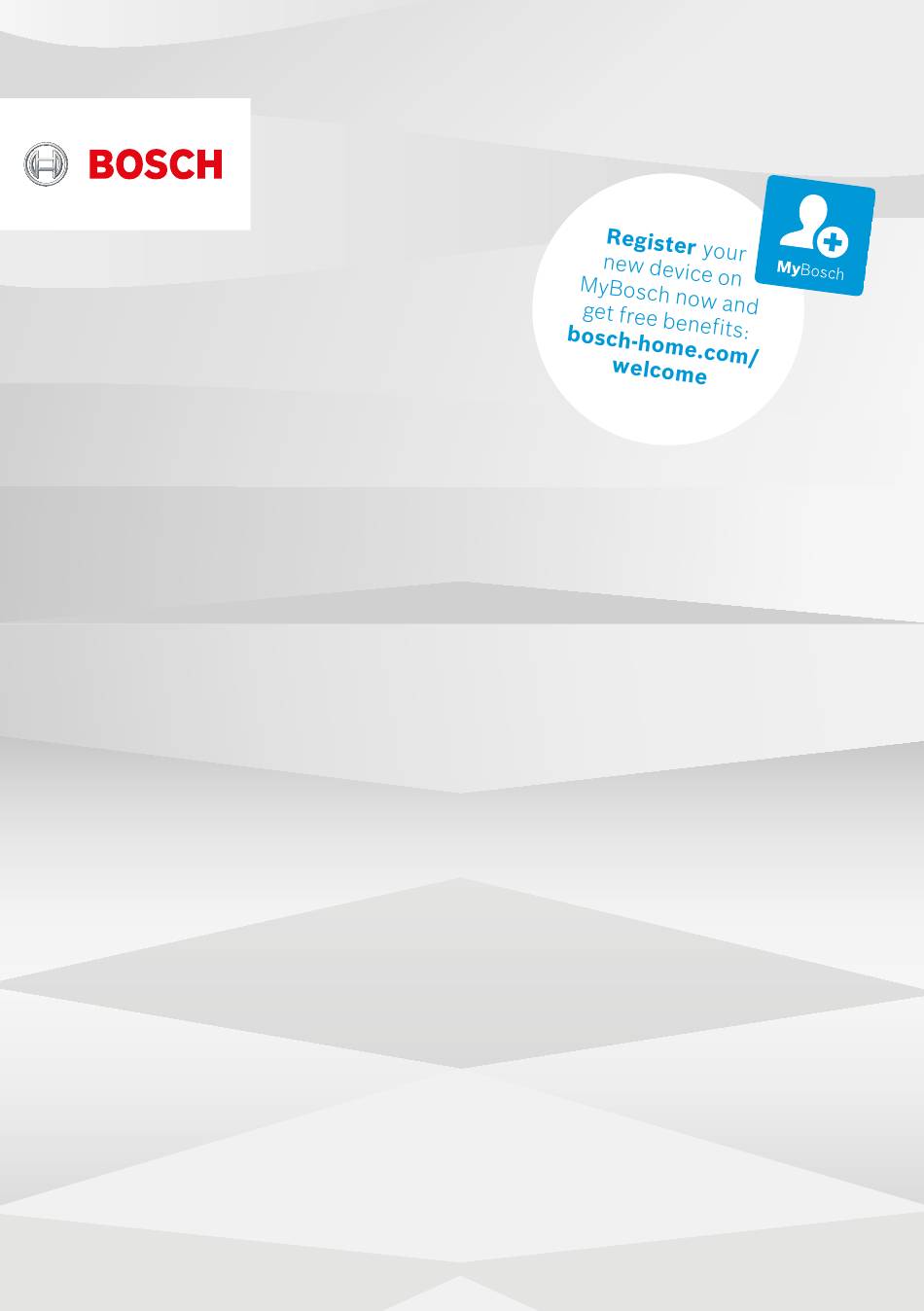

- Page 28 Thank you for buying a Bosch Home Appliance! Register your new device on MyBosch now and profit directly from: • Expert tips & tricks for your appliance • Warranty extension options • Discounts for accessories & spare-parts • Digital manual and all appliance data at hand •...
