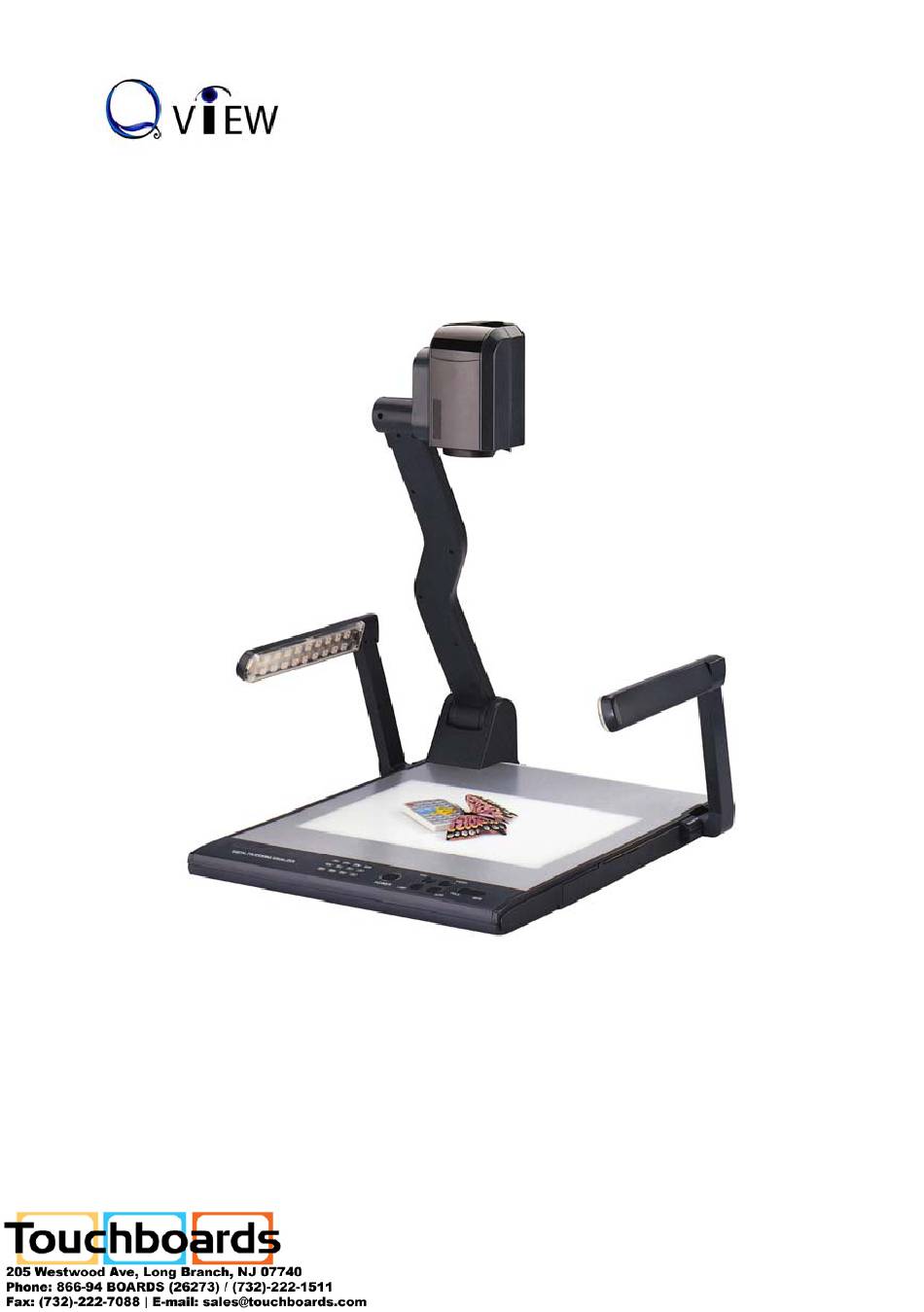

- Page 1 Visual Presenter Owner’s Manual Model: QD1200...
- Page 2 PRECAUTIONS Please follow these precautions: To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electrical shock, do not open the cabinet. Refer to qualified personnel for service only. Do not use the unit continuously for more than 24 hours with camera auto focus on.
- Page 3 CONTENTS: PARTS IDENTIFICATION ................3 CONTROL PANEL ..................3 BUTTON INSTRUCTION................4 REMOTE CONTROL ..................5 CONNECTIONS ..................... 6 BASIC PREPARATIONS................. 6 OUTPUT MODE AND VERTICAL FREQUENCY (60Hz) .......11 PAL/NTSC VIDEO OUTPUTS ...............11 INSTALLING QOMO VISUALIZER SOFTWARE ...........11 WORKING ON THE STAGE ................. 13 WORKING OUTSIDE THE STAGE...............
- Page 4 USB IMAGE CAPTURE ................18 CONTROLLING THE VISUALIZER FROM THE COMPUTER ..... 20 CONTROLLING PROJECTOR BY VISUALIZER.......... 20 FOLDING THE UNIT..................24 SPECIFICATIONS ..................25 TECHNICAL SUPPORT................27 PARTS IDENTIFICATION Camera Camera stand Arm lights Button instruction Connectors Back light Connectors Remote control slot Stage...
- Page 5 Far/Near (Focus far or near) Mem (Multiple Screen Display) Ppw (Control the projector On/Standby) Pin (Projector input signal selection) (Move the image up/down) POWER (Control the visualizer On/Off) CCD/PC1/PC2 (CCD/RGB input signal selection) S-VIDEO/ VIDEO (S-VIDEO/ VIDEO input signal selection) LAMP (Control the arm lights and back light) AUTO (To auto adjust brightness, auto white balance and auto focus) (Increase and decrease magnification)
- Page 6 REMOTE CONTROL POWER (Control the visualizer power On/Off) ROTATE (Rotate the image) FREEZE (Freeze the image) LAMP (Control the arm lights and back light) SAVE (Save captured images) NEG (Display film negatives) MIRROR (V-reverse the image) XGA (Switch between SVGA mode and XGA mode) RECALL (Multiple screen display) TEXT (Switch between image/text mode) B&W (Switch between Color mode and Black &...
- Page 7 AUTO (To auto adjust brightness, auto white balance and auto focus) CCD/PC1/PC2 (CCD/RGB input signal selection) S-VIDEO/ VIDEO (S-VIDEO/ VIDEO input signal selection) VOLUME+/- (Increase or decrease the volume) RED+/- (Increase or decrease the red hue) BLUE+/- (Increase or decrease the blue hue) BRIGHT+/- (Increase or decrease the brightness) (Move the image up/down) SCROLL /...
- Page 8 1. Use one hand holds the base of the visualizer, use the other hand carefully lift up the camera stand of the unit. 2. Open the arm lights and rotate the camera head until they are in proper positions. Arm lights 3.
- Page 9 Rear Panel S-VIDEO AUDIO VIDEO S-VIDEO AUDIO VIDEO AUDIO AUDIO IN PROJECTOR OUT -COMPUTER- IN OUT-12V- IN RGB Input RS232 Cable Screen Projector Side Panel PROJECTOR RGB IN AUDIO IN RS232 Connect visualizer’s PROJECTOR port to the RGB IN port of the projector port with the RGB cable provided together the visualizer.
- Page 10 Rear Panel To the Monitor AUDIO VIDEO S-VIDEO AUDIO VIDEO S-VIDEO PROJECTOR OUT -COMPUTER- IN OUT-12V- IN AUDIO AUDIO IN USB Connector RGB Output RS232 Cable Computer PROJECTOR RGB IN AUDIO IN RS232 Side Panel Note: You can connect a laptop computer to the RGB IN port of side panel with a RGB cable.
- Page 11 Step 5: Connect to the second video equipment with video input. Video Cable Video out Audio out Video equipment Rear Panel AUDIO VIDEO S-VIDEO AUDIO VIDEO AUDIO S-VIDEO -COMPUTER- OUT-12V- IN AUDIO IN PROJECTOR Projector Color monitor Video in Step 6: Connections for external control from the computer. Side Panel PROJECTOR MIC RGB IN...
- Page 12 OUTPUT MODE AND VERTICAL FREQUENCY (60Hz) The RGB output can output a signal in the SVGA /XGA format. In order to achieve the best picture quality you must set the outputs of the Visualizer to match the native resolution of your display unit. PAL/NTSC VIDEO OUTPUTS The S-Video and composite video outputs are set to NTSC (PAL) during manufacturing.
- Page 13 C. Click and select , you will see the following setup window: D. Click , then copy files E. Click to finish the setup.
- Page 14 F. Shut down your computer when prompted, so the changes will take effect. * Please pay attention to the following: Computer hardware requirement: CPU: 2.4GHz, RAM: 256M or above, Graphic card 64M, USB 2.0 port, Hard disk 40G or more, Monitor display resolution higher than XGA (1024*768).
- Page 15 the working surface and adjust the “ T ” or “ ” and “AUTO” keys. If the object is too big for the stage or you want to show it from the side, just place it behind or in front of the unit and tilt the camera by hand (please take off the close-up lens first).
- Page 16 WORKING WITH NEGATIVES The visualizer is automatically set to display normal materials on the screen when the power is on. To display negatives, turn on the backlight by pressing the “LAMP” key, and then press the “Neg” button to display the film negatives.
- Page 17 BRIGHTNESS ADJUSTMENT If the image effect is not satisfactory, you can adjust the brightness to get a better image effect. Use the “BRIGHT +” or “BRIGHT -” button to adjust the brightness. To increase the brightness, press the “BRIGHT +” button. To decrease it, press the “BRIGHT -”...
- Page 18 seamless transitions among different sources such as Camera (CCD)、 COMPUTER(IN)、and RGB (IN). Notes: RGB OUT always outputs RGB IN signals. PROJECTOR ON/STANDBY Press the “POWER” button to turn on the QD1200’s power and press the “Ppw” button to turn the projector power on. To turn the projector standby after use, press the “Ppw”...
- Page 19 On the left side of the visualizer stage, there is a built-in remote control storage compartment where you can store the remote control when you not use it. PRESET FUNCTION Use the “SET” button to preset 8 steps of the Zoom/Focus position, when the button is pressed, it moves step by step.
- Page 20 your computer hard drive and double click it), you will see the following computer control window: The control keys’ operation is the same to the operating instruction of the “Controlling the Visualizer From a Computer” section. C. Menu operation instructions. Close / Open the computer control window.
- Page 21 CONTROLLING THE VISUALIZER FROM THE COMPUTER You can control the visualizer from a computer connected with a RS232 connector. A. Connect the computer and the visualizer with the RS232 cable. B. Double click X:\ 232 Control\Control Panel (you can open this file from the CD and double click it, or copy this file to any directory on your computer’s hard drive and double click to launch it).
- Page 22 When the indicator of “Current RS-232 Connection Status” is green, that means the connection between the visualizer and the computer’s RS232 connector is good. If the indicator is red, please check if the RS232 cable is connected correctly. When all the cables are connected correctly, please click “Projector”...
- Page 23 （ “-“ is space， is enter.） In the POWER ON box, input ’POWR 1’, 0d, 0a (Remarks: There are 3 spaces after POWER, 0d, 0a is enter.) Input other codes in the same way. c. If the data is in the numerical value and character format, then synthesize the above-mentioned formats.
- Page 24 Click “Projector” button, the following dialog box appears as below: Connect the visualizer to a computer with a RS232 cable (Please disconnect the projector from the RS232 port first) and select the Baud Rate and Parity based on the projector’s Baud Rate, then click the “TEST” button to pop up the Projector Code Test dialog box, input the Baud Rate and Parity based on the projector’s Baud rate, then click “Open”.
- Page 25 FOLDING THE UNIT 1. Fold the right arm light down first onto the base, then the left arm down. Rotate the camera head clockwise until the camera head is parallel to the camera stand. 2. Carefully Fold the camera stand down to the front panel. Cautions: a.
- Page 26 NOT THIS W AY SPECIFICATIONS Color system NTSC or PAL system Pickup device 1/3″CCD Resolution XGA (1024 x 768) Total Pixels 850,000 12 x optical zoom, 8 x electrical zoom Lens F=1.8~2.7 mm / f = 5.4 ~ 64.8 mm Zoom Powered Camera Rotation...
- Page 27 Audio IN (Mini Jack) (2) MIC IN (phone jack)(1) PC Audio (2) RGB DB15FLC (2) RGB DB15FLC (2) C Video OUT (RCA) (1) Output connectors S Video OUT (4-pin DIN) (1) Audio OUT (Mini Jack) (1) Operating system Windows XP SP2 (Service pack 2) Hardware Requirement CPU higher than P2.4GHz Memory higher than 256 MB...
- Page 28 Infrared remote control Warranty card * Design and specifications are subject to change without prior notice. TECHNICAL SUPPORT How to Reach QOMO: By Phone Call us at 1-866-990QOMO. Our expert personnel provide technical assistance from 9:00AM through 5:00PM Eastern Standard Time, Monday through Friday.
- Page 29 QOMO HITEVISION, LLC Toll Free: 1-866-990QOMO E-Mail: info@qomo.com Web: www.qomo.com...
