OBD2 V302 User Manual

Automobile obd diagnostic instrument

Advertisement

Quick Links

V302
USER MANUAL
AUTOMOBILE OBD DIAGNOSTIC INSTRUMENT
QUICK OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the V302 and is the answer not in the manual?

Questions and answers

Summary of Contents for OBD2 V302

  • Page 1 V302 USER MANUAL AUTOMOBILE OBD DIAGNOSTIC INSTRUMENT QUICK OPERATION MANUAL...
  • Page 2 CONTENT...
  • Page 3 1. Product introduction This is a gasoline car code reader,which supports nine standard protocols of OBD II/EOBD. Plug and play, can quickly read the car's fault information and vehicle parameters, is a more comprehensive function of the fault diagnosis instrument. Please read the product manual carefully before using this product, thank you.

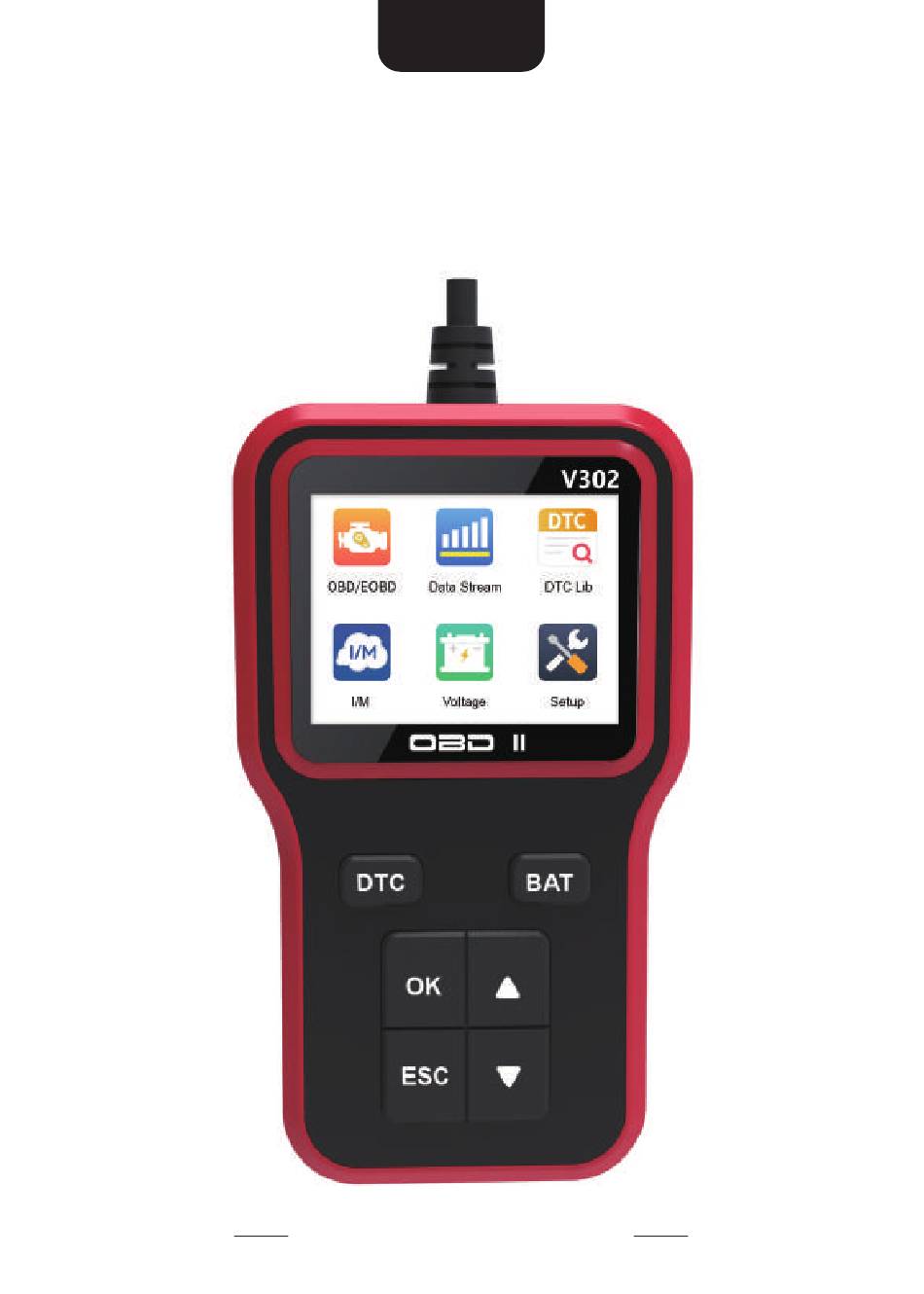

  • Page 4 3. Product appearance and function key introduction 3.1 Tool description The OBD plug is connected to the OBD connector of the vehicle. 2. 2.8 color display screen, resolution: 240*320 3. Fault code shortcut key 4. OK...
  • Page 5 ESC to return. Battery voltage reading down 4. Product parameters and accessories 4.1 Product parameters Working voltage: 12V Working current: 51mA Operating environment: -30~70℃ Storage temperature: -30~70℃ Dimensions: 152*87.5*22mm Eight languages: English, German, Italian, Dutch, French, Spanish, Chinese, Russian. 4.2 Product accessories Accessories Host *1 Manual *1...
  • Page 6 4.4 Main functions Support nine standard protocols of OBD II/EOBD. Support car battery voltage test. Support gasoline model reading, clearing vehicle fault code, reading data stream, freezing frame information, checking MIL status, reading vehicle information, oxygen sensor test, fuel evaporation system (mode 8) test.
  • Page 7 6. Page menu introduction 6.1 Car inspection menu After connecting the vehicle, go to the home page, select the "OBD/EOBD" menu, press the OK button to enter the test function page, this menu has 9 test functions, you can use the up/down function keys to turn pages.
  • Page 8 6.3 Fault code query After connecting the vehicle, go to the home page, select the "DTC Lib" menu, press the OK button to enter the fault code query page, support the query of the vehicle fault code, and explain the reason. DTC Lookup P2100 Data Stream...
  • Page 9 6.5 Voltage test After connecting the vehicle, go to the home page, select the "Voltage" menu, press the OK button to enter the voltage test page, and check the voltage value. Voltage Data Stream DTC Lib 12.1V Voltage Setup 6.6 Product settings After connecting the vehicle, go to the home page, select the "Setup"...
  • Page 10 Italiano 7. Matters needing attention The product is not compatible with new energy vehicles, hybrid vehicles, and models that do not comply with the OBD2 protocol. 8. Disclaimer We are committed to providing customers with unparalleled customer support before and after sales. The following provides our products with...
