Summary of Contents for OBD2 V519
- Page 1 V519 USER MANUAL...
- Page 3 CONTENT...
-
Page 4: Product Introduction

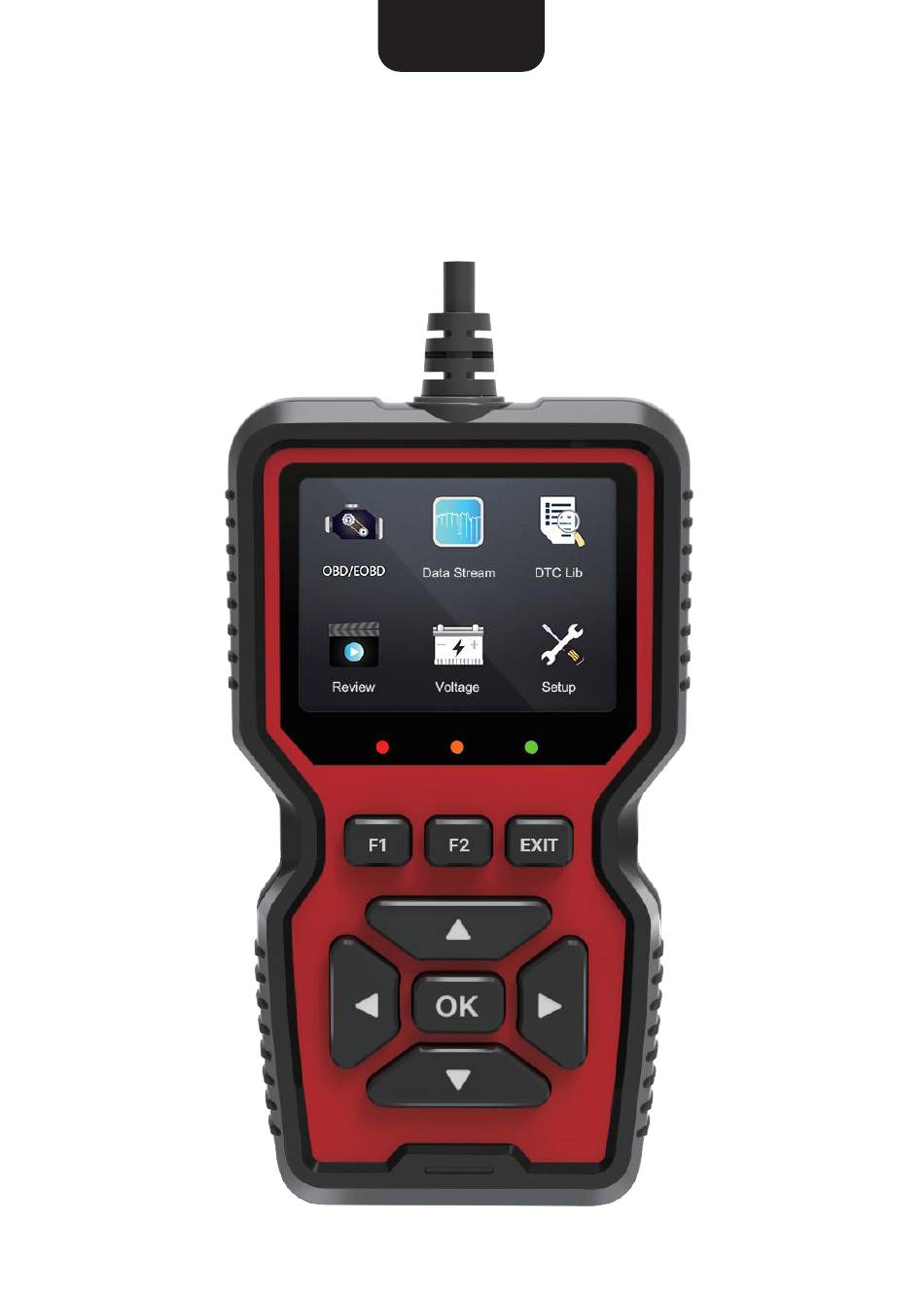

�.Product introduction V519 is a multi-functional vehicle fault diagnosis instrument that supports nine OBD II/EOBD standard protocols. It supports plug and play, can quickly read the vehicle fault information and vehicle parameters. It is a more comprehensive fault diagnosis instrument. Please read the product manual carefully before using this product. - Page 5 �.Introduction to product appearance and function keys �.� Product Description 1—Product connecting line, used to connect vehicle OBD interface 2—2.8 inch color display screen, resolution：240*320 3—Read the current fault code quickly...
- Page 6 4—I/M ready state 5 —Back/Exit 6/7/8/9—Up, down, left and right buttons 10—Confirmation 11—Software upgrade/printing interface 12 - The fault code is read 13 - The connection fails 14 - The connection is successful �.Product parameters and accessories �.� Product parameters Working voltage：DC12-16V Operating current：48~72mA Operating environment：－20～65℃...
- Page 7 �.� Main fuctions Battery voltage reading Support nine OBD II/EOBD standard protocols ① ⑧ Read the automobile engine fault code Mode 6 detection ② ⑨ Clear engine fault code Oxygen sensor test ③ ⑩ Vehicle fault freeze frame Mode 8 detection ④...
- Page 8 �.Menu Page Introduction �.� Test main menu After connecting the vehicle, enter the main page, select the "Diagnosis" menu, and press the OK key to enter the test function page. This menu has 9 test functions, and you can use the direction function keys to move and select Read DTC Clear DTC...
-
Page 9: View Freeze Frame
�.�.� Clear code Select “Clear Code” and a confirmation message will appear. After confirming that the fault code is cleared, the vehicle engine fault light will go out and the code is cleared successfully If the clearing fails, it can be cleared when the engine is powered off Erase Codes Read DTC Clear DTC... -
Page 10: Vehicle Info
�.�.� I/M ready state The I/M ready function is used to check whether the car monitor is OK or N/A. During specific driving time (each monitor has specific driving conditions and required time OK means the monitoring test is completed INC indicates that the vehicle has not completed monitoring N/A means that the modified vehicle does not support this monitoring Since DTCs Cleared... -
Page 11: Sensor Monitor
�.�.� Data stream After entering the data stream, the product will read the current real-time data stream information of the automobile engine Data Stream 1/117 DTC_CNT Read DTC Clear DTC Freeze DTCFRZF P00012 FUELSYS1 Vehicle Info Live Data FUELSYS2 LOAD_PCT(%) 68.2 Mode 6 O2 Sensor... -
Page 12: O2 Monitor Test
�.�.� Oxygen sensor test When entering the oxygen sensor test item, the oxygen sensor value of the tested vehicle will be read to determine whether the various test data are normal O2 monitor test O2 bank1 sensor1 Read DTC Clear DTC Freeze O2 bank1 sensor2 O2 bank2 sensor1... -
Page 13: Dtc Lookup
�.� Query the fault code library Enter the query fault code option, the user can use the direction keys to adjust the fault code, turn to the fault code to be queried and select "OK" to query the fault definition DTC Lookup OBD/EOBD Data Stream... -
Page 14: System Setup
�.� Voltage Enter the voltage option to read the current battery voltage data of the detected vehicle Voltage OBD/EOBD Data Stream DTC Lib 11.8V Review Voltage Setup �.� Settings Enter the setting option to adjust the language, unit and other settings of multiple product parameters System Setup Language... - Page 15 �.�.� Software upgrade System Setup Update software Print Software Upgrade Procedure 1）Log in to “elm327. com” to download “V519ProductTool” 2) After successful download, use Type-C data cable to connect the product and computer 3）Double click to run “V519ProductTool” 4）Select Update Firmware 5）Select “Start update”...
- Page 16 �.�.� Print System Setup Update software Printt Software Upgrade Procedure 1）Log in to “elm327. com” to download “V519ProductTool” 2) After successful download, use Type-C data cable to connect the product and computer 3）Double click to run “V519ProductTool” 4）Select “Review Datastream” 5) After successful reading, the vehicle data stream information will be displayed, which can be copied for printing...
- Page 17 �. Notes The product is not compatible with new energy vehicles, hybrid vehicles, and vehicle types that do not conform to OBD2 agreement �. Disclaimer We are committed to providing customers with unparalleled customer support before and after sales. Here are our exemption conditions for products：...
Need help?
Do you have a question about the V519 and is the answer not in the manual?
Questions and answers
I have just got delivery of the V519 car scanner. It can read the battery voltage, but can't scan the car. It gives me three possibilities of not scanning. My car is a 2005 audi a4 2.0 alt.
The OBD2 V519 scanner may not scan your 2005 Audi A4 2.0 ALT because it is mainly suitable for basic functions like reading and clearing error codes and viewing live data. It may not support all vehicle protocols or advanced diagnostics required for your specific car model.
This answer is automatically generated
какой порядок входа, чтобы видеть текущую температуру масло в акпп.
To view the current transmission oil temperature using the OBD2 V519:
1. Connect the OBD2 V519 to the vehicle’s OBD interface (usually located above the accelerator pedal).
2. Start the vehicle after connecting the device.
3. On the device, go to the main menu and select the "Diagnosis" option.
4. Use the direction keys to select "Live Data" from the list of test functions.
5. In the live data menu, locate and select the "Transmission Oil Temperature Sensor" to view the current transmission oil temperature.
This answer is automatically generated
NO LEE EL ABS EL OBDII V519
The OBD2 V519 scanner is a basic diagnostic tool that supports reading vehicle fault information and parameters using nine OBD II/EOBD protocols. However, it does not mention support for ABS (Anti-lock Braking System) diagnostics. Therefore, the V519 likely does not read ABS codes because it is not designed to access or interpret ABS system data.
This answer is automatically generated
При подключении на пежо биппер,пишет что нет связи с автомобилем.Для каких марок подходит этот сканер?
The OBD2 V519 scanner is compatible with 1996 and newer cars in the US, 2000 and newer cars in the EU and Asia, light trucks, SUVs, and newer OBD2 and CAN vehicles, both domestic and foreign. Compatibility should be checked with the specific car model before purchasing.
This answer is automatically generated
I have tried to enter using F2 which does put the device in Update mode, but The device is not being recognized in Windows. If I can't get this to work I will be returning it.
The OBD2 V519 device may not be recognized in Windows after entering Update mode with F2 due to the following reasons:
1. The required software, V519ProductTool, is not downloaded or installed.
2. The device is not properly connected to the computer using a Type-C data cable.
3. The firmware update process was not correctly followed, such as failing to select Update Firmware and Start update in the software.
4. The computer's USB port may not be providing proper communication with the device.
To resolve this, ensure the V519ProductTool is installed, use a working Type-C data cable, and follow the firmware update steps correctly.
This answer is automatically generated
i plug up my tool to the car didnt work or come on do it take a battery if it do where do it go
The OBD2 V519 tool does not require a battery. It is powered directly through the vehicle's OBD2 port when connected.
This answer is automatically generated
How do I get information on trouble shooting code P0442
can it be usetoaiagnoseABS brakesystem
Como chequeo q código de falla hay si el carro no me arranca
Where is type c connection in OBD2 v519
