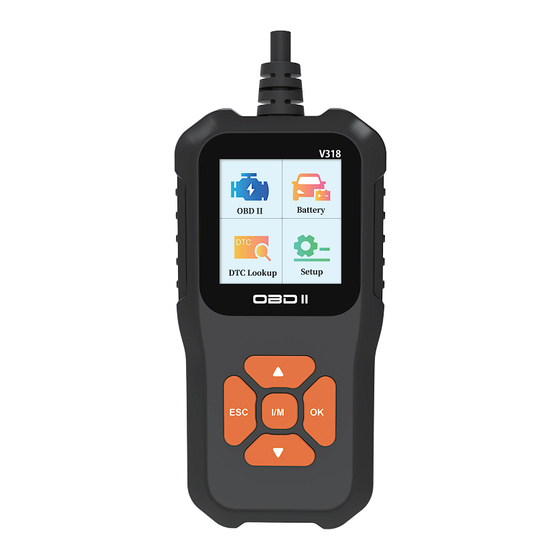

- Page 1 V318 USER MANUAL AUTOMOBILE OBD DIAGNOSTIC INSTRUMENT...
-
Page 2: Table Of Contents
CONTENT 1. Product introduction 2. Matters needing attention 2.1 Tool description 2.2 Specification 2.3 Included accessories 2.4 Power supply of vehicle 2.5 Product Setup 2.6 Application range of vehicle 3. OBD II diagnosis 3.1 Read Codes 3.2 Erase Codes 3.3 View Freeze Frame 3.4 I/M Readiness 3.5 Read the vehicle information 3.6 Data stream... -
Page 3: Product Introduction
1. Product introduction This is a gasoline car code reader，which supports nine standard protocols of OBD II/EOBD. Plug and play, can quickly read the car's fault information and vehicle parameters, is a more comprehensive function of the fault diagnosis instrument. Please read the product manual carefully before using this product, thank you. -
Page 4: Tool Description
2.1 Tool description Diagnostic joint - Connect the decoder to the vehicle data link connector (DLC). -
Page 5: Specification
LCD display - Display the detection result. 3. I/M button- I/M READINESS KEY, Quick checks state emissions readiness and drive cycle verification. 4. Up roll button - Roll the menu and submenu in menu mode. 5. ESC button - Cancel the selection (or operation) in the menu or return to the menu. -
Page 6: Included Accessories
English, Spanish, French, Italian, Russian, Chinese, Japanese, Korean. 2.3 Included accessories User’s manual - Tool operating instruction OBD2 wire - Supply power to the tool, and communicate between tool and vehicle 2.4 Power supply of vehicle Vehicle data link connector (DLC) supplies the power to decoder. -
Page 7: Product Setup
2.5 Product Setup System Setup Language Unit Of Measure Language: Select the required language. Measurement unit: Set the measurement unit as imperial or metric units. 2.6 Application range of vehicle This OBD II / EOBD decoder is specially applied to all the vehicles that accorded with OBD II standard, including the vehicles for preparing the next generation of protocols - controlling the area network... - Page 8 (have the capacity). All the vehicles selling in USA as required by United States Environmental Protection Agency, and 1996 newer (automobile) light trucks must be accorded with OBD II standard. Including all the domestic, Asian and European vehicles. A small amount of 1994 and 1995 petrol vehicles are accorded with OBD II standard.
-
Page 9: Obd Ii Diagnosis
Insert OBD II wire to vehicle DLC. Turn on ignition switch. Engine stops or runs. Press Return/Confirm button to enter diagnostic menu. A series of OBD2 protocol information will be displayed on the display screen, until the vehicle protocol is detected. - Page 10 Confirm ignition switch is turned on; Check if OBD II connector of decoder is connected to vehicle DLC; Confirm the vehicle is accorded with OBD2 standard; Turn off ignition switch and wait for 10 seconds. Turn on ignition switch again If “Connection error” information still...
-
Page 11: Read Codes
3.1 Read Codes Press Up/Down button to select the read code from diagnostic menu, and then press Return/Confirm button. Diagnostic Menu 1/9 Read Codes Erase Codes View Freeze Frame I/M Readiness Vehicle Info. Data Stream RealTime Curve Read DTC and its definition on the screen. Trouble Codes 1/3 P0230 Fuel Pump Primary Circuit... -
Page 12: Erase Codes
If not detect the code, “Code is not stored in module!” information is displayed on the screen. If the retrieved DTC contains any code specified by manufacturer or the enhanced codes, and then “Controlled by manufactur- er” is displayed on the screen. 3.2 Erase Codes Caution: Delete the diagnostic code of decoder may not only delete the code on... - Page 13 If decide to delete the diagnostic code, please press Up/Down button to select “Delete the code” from the Diagnostic menu, and then press Return/Confirm button. A warning message appears, and needs you to confirm. Erase Codes Erase trouble codes! Are you sure? If go on deleting the code, please press Return/Confirm button to delete.
-
Page 14: View Freeze Frame
If you want to continue to delete the code, you can try to turn off the engine and choose to clear the fault code when the power is on. 3.3 View Freeze Frame Diagnostic Menu 3/9 Read Codes Erase Codes View Freeze Frame I/M Readiness Vehicle Info. -
Page 15: I/M Readiness
3.4 I/M Readiness I/M ready function is used to check the operating situation of vehicle emission system that is accorded with OBD2 standard. This is a very good function before checking if the vehicle is accorded with the state emission plan. Some newest... - Page 16 Since DTCs Cleared 1/2 MIL Status Misfire Monitor Fuel System Mon Comp.Component Catalyst Mon Htd Catalyst EVAP System Mon This Drive Cycle MIL Status Misfire Monitor Fuel System Mon Comp.Component Catalyst Mon Htd Catalyst EVAP System Mon The digital “x/x”on the upper right corner of the screen show the total coverage of retrieved data on the screen and the serial number of the current displaying data.
-
Page 17: Read The Vehicle Information
3.5 Read the vehicle information Vehicle information function can retrieve vehicle identification number (VIN), calibration sign, calibration verification number (CVN) and the models above 2000 support the vehicle performance tracking of mode 9. Diagnostic Menu 5/9 Read Codes Erase Codes View Freeze Frame I/M Readiness Vehicle Info. -
Page 18: Data Stream
3.6 Data stream Diagnostic Menu 6/9 Read Codes Erase Codes View Freeze Frame I/M Readiness Vehicle Info. Data Stream RealTime Curve 1/11 Data Stream FUELSYS2 OL-D OL 10.6 LOAD_PCT(%) ETC(℃) -63.3 SHRTFT1(%) LONGFT1(%) -59.4 -60.2 SHRTFT2(%) LONGFT2(%) -60.2 Read current engine data flow information 3.7 RealTime Curve Diagnostic Menu 7/9 Read Codes... - Page 19 Press “Confirm” button to read speed waveform display. Real Time Curve Car Speed Calculate Load Value Engine Coolant Temp Engine RPM Car Speed SPEED(km/h) Press “Confirm” button to enter calculate load value interface. Real Time Curve Car Speed Calculate Load Value Engine Coolant Temp Engine RPM Calculate Load Value...
-
Page 20: Oxygen Sensor
3.8 Oxygen sensor Diagnostic Menu 8/9 O2 Sensor EVAP O2 Sensor O2SLOC B1S-23-B2S-2 O2B1S1(V) 0.515 O2B1S2(V) 0.490 O2B2S1(V) 0.495 O2B2S2(V) 0.495 O2B3S1(V) 0.500 O2B3S2(V) 0.800 According to the test result, you can use the up/down buttons to view the current data flow. -
Page 21: Fuel Evaporation Control System
3.9 Fuel Evaporation Control System Diagnostic Menu 9/9 O2 Sensor EVAP EVAP EVAP_PCT(%) EVAP_VP(Pa) 11538 According to the test result, you can use the up/down buttons to view the current data flow. -
Page 22: Diagnostic Code Query
4 Diagnostic code query DTC Lookup P0000 The 1st range:P,C,B,U The 2nd range:0,1,2,3 others from O to F Press “▲” to adjust the next code∙ Press “▼” to adjust the current code Press Confirm to query after input the code. -
Page 23: Battery Voltage
5 Battery Voltage Voltage 11.7V Test and display the current voltage value of the car battery in real time. 6 Precautions This product is not compatible with new energy vehicles, hybrid vehicles, diesel vehicles and non-OBD2 agreement models... -
Page 24: Disclaimer
7 Disclaimer We are committed to providing customers with unparalleled customer support before and after sales. The following provides our products with our exemption conditions: If any of the following conditions are met, the customer shall not enjoy the policies within the scope of this limited warranty: a) Abnormal use of the product, abnormal conditions, improper storage, exposure to...
