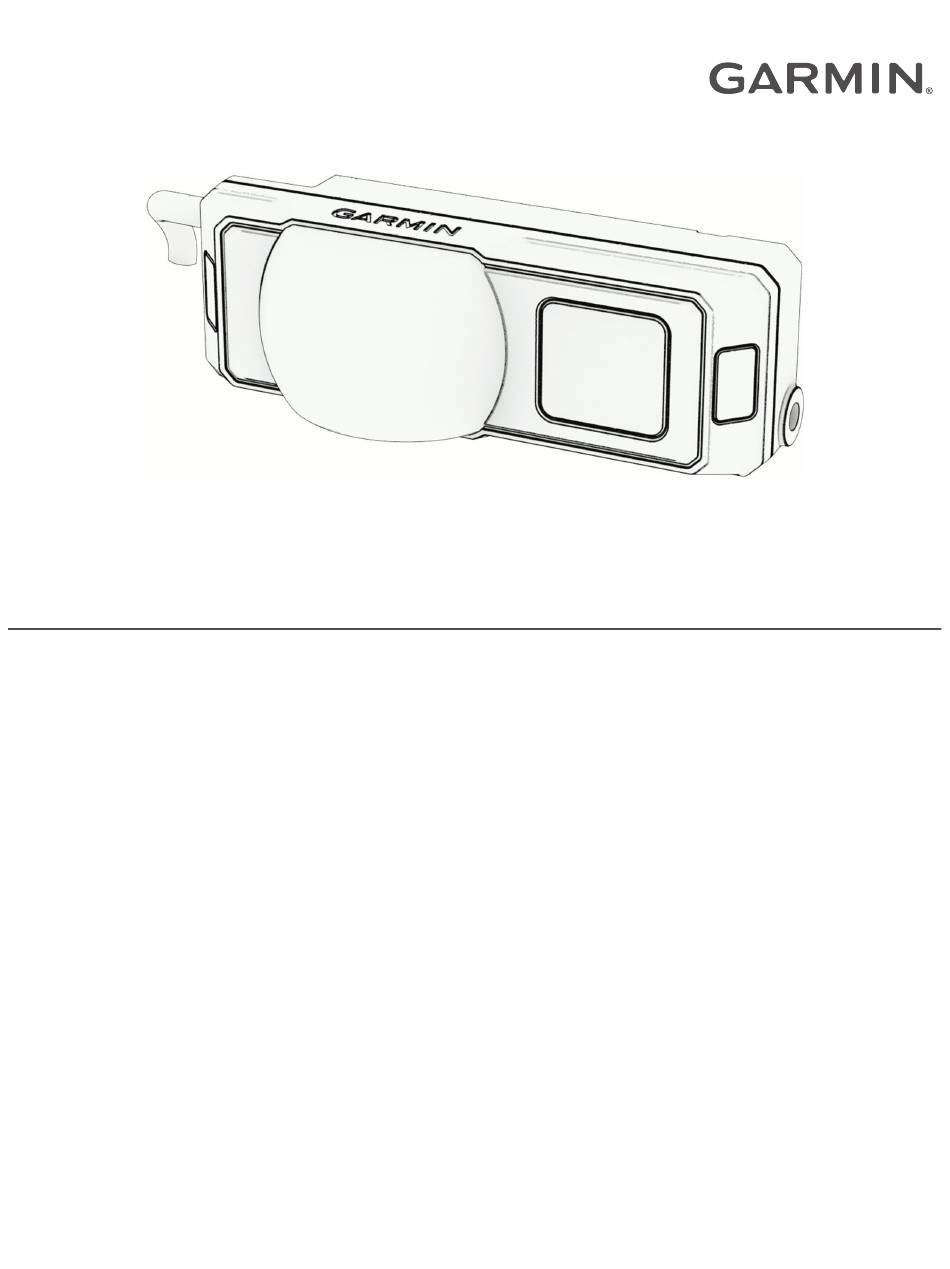

- Page 1 ZŪMO R1 RADAR ™ Owner’s Manual...
- Page 2 © 2025 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com...
- Page 3 Table of Contents Enabling the Rear Alert Lights from the App............19 Adjusting Alert Sensitivity..... 19 Introduction........1 Getting Started........1 The zūmo R1 Radar System and Your Device Overview........2 Compatible Motorcycle Navigator...19 Radar Status LED......... 4 Pairing the zūmo R1 Radar System with Status Icons.........
- Page 5 If the radar device is not connected or sending radar data, Garmin recommends that you stop riding and check the devices in a safe location. Failure to do so could result in serious injury or death.
- Page 6 Device Overview NOTE: The rear-facing red light may be oriented to the left or right, depending on which fit is most suitable for your motorcycle. The rear-facing red lights and amber indicator lights are disabled by default (Enabling the Rear Alert Lights from the zūmo R1 Radar System, page 22).
- Page 7 Blind spot warning lights. Amber LEDs Powers the device on or off or enters the device into pairing mode. Device button Indicates the radar status. Status LED Rear alert lights. Red LEDs Introduction...
- Page 8 Radar Status LED LED Activity Status Bluetooth ® Flashing blue The device is in Bluetooth pairing mode. The light will flash for three minutes, until a Bluetooth device is paired, or until the device button is pressed. Demo Solid yellow The device is in demo mode.
- Page 9 • The included surface mount bracket can be fastened to the back of the motorcycle using self-tapping, panhead screws or adhesive. • When using the license plate mount, Garmin recommends using metal fasteners to attach the license plate to your motorcycle.
- Page 10 • Ensure the device has 180 degrees of horizontal clearance. • Ensure the device has 135 degrees of vertical clearance. • The device must be installed in a manner that ensures sufficient cable slack for the entire turning range of the motorcycle’s handlebars and during full range of suspension travel.
- Page 11 Mounting the Indicators with Brackets Before you mount the indicators, determine whether the indicator should be placed vertically or horizontally on your motorcycle and which side each indicator should be placed on. Each indicator is marked with L or R to align with the left or right side from the rider's position.
- Page 12 Mounting the Indicators with Adhesive NOTICE The adhesive mount is intended for a long-term installation and can be difficult to remove. You should carefully consider the mounting location before you install the mount. You should allow the mount to remain in place at room temperature for 24 hours before completing installation and going for a ride.
- Page 13 4 Remove the protective film from the other side of the adhesive, and position the indicator over the mounting location. TIP: The adhesive is extremely sticky. Do not touch the adhesive to the surface until the indicator is properly positioned and aligned. 5 Press the indicator firmly onto the surface, and maintain pressure for 30 seconds.
- Page 14 Installing the Mount NOTICE It is the user's responsibility to mount and operate the device in compliance with all applicable laws and ordinances. The zūmo R1 Radar system includes parts for a license plate or surface mount. Custom mounts may require additional hardware.
- Page 15 Vehicle Mount Installation for Europe Installing the License Plate Mount 1 Plan a path for the cable so that it does not interfere with the operation and function of your motorcycle. 2 Attach the license plate and mount assembly to your motorcycle using the existing license plate hardware. NOTE: Some license plates may accommodate only two screws, but you should use four screws when possible.
- Page 16 Installing the License Plate Mount with an Extender Plate An extender plate is included so that you can adjust the mount to accommodate tall license plates. 1 Plan a path for the cable so that it does not interfere with the operation and function of your motorcycle. 2 Position the extender plate with the license plate mount so that the assembly accommodates your license plate.
- Page 17 4 Remove the protective film from the other side of the adhesive strip, press the mount into place on the vehicle, and hold the mount for 30 seconds to ensure proper adhesion. 5 Secure the cable, and connect it to the battery and zūmo R1 Radar system. Installing the Motorcycle Radar in the Mount 1 Place the zūmo R1 Radar system into the mount, with the lens facing outward.
- Page 18 Checking the Radar Angle You can adjust the radar angle to provide the best view for your motorcycle. 1 Ensure the system is facing straight backward from the motorcycle. 2 Drive to a level area with a clear view behind your motorcycle. 3 Use a 2.5 mm hex wrench to loosen the two screws that hold the radar to the mount.
- Page 19 WARNING Garmin strongly recommends having an experienced installer with the proper knowledge of electrical systems install the device. Incorrectly wiring the power cable can result in damage to the vehicle, the battery, or the device and can cause bodily injury.
- Page 20 Use of the rear alert lights may violate certain laws and regulations related to motorcycle operation. It is the user's responsibility to comply with any such applicable laws or regulations. Garmin is not responsible for any fines, penalties, citations, or damages that may be incurred due to any such lack of compliance.
- Page 21 Viewing Radar on the App Go for a ride. The radar information appears on the active data screen. The status icon indicates the radar sensor status. The vehicle positions change color based on threat level. A yellow vehicle indicates a vehicle is approaching in your blind spot to the left or right of your motorcycle.
- Page 22 Pairing Multiple Devices with Your Phone You can pair multiple zūmo R1 Radar systems with the zūmo Radar app. 1 Bring your phone within 3 m (10 ft.) of the zūmo R1 Radar system. NOTE: Stay 10 m (33 ft.) away from other Bluetooth sensors while pairing. 2 On your compatible phone, enable Bluetooth technology.
- Page 23 Use of the rear alert lights may violate certain laws and regulations related to motorcycle operation. It is the user's responsibility to comply with any such applicable laws or regulations. Garmin is not responsible for any fines, penalties, citations, or damages that may be incurred due to any such lack of compliance.
- Page 24 Pairing the zūmo R1 Radar System with Your Motorcycle Navigator Before you can pair your devices, you must ensure both the zūmo R1 Radar and motorcycle navigator are installed on the motorcycle and connected to power. The first time you connect the zūmo R1 Radar system to your motorcycle navigator, you must pair both devices using Bluetooth technology.
- Page 25 Use of the rear alert lights may violate certain laws and regulations related to motorcycle operation. It is the user's responsibility to comply with any such applicable laws or regulations. Garmin is not responsible for any fines, penalties, citations, or damages that may be incurred due to any such lack of compliance.
- Page 26 Use of the rear alert lights may violate certain laws and regulations related to motorcycle operation. It is the user's responsibility to comply with any such applicable laws or regulations. Garmin is not responsible for any fines, penalties, citations, or damages that may be incurred due to any such lack of compliance.
- Page 27 Rear Alert Notifications When a vehicle is approaching from the rear, the bottom of the screen turns red before the rapidly approaching vehicle travels into view. Device Information Device Care NOTICE Avoid contact with chemical cleaners, solvents, gasoline, oil, insect repellents, or sunscreen. These chemicals can damage plastic components and finish.
- Page 28 Radar Detection WARNING Radar performance may be degraded or vehicles may not be detected when the motorcycle is operated outside of the following range: 25 to 150 km/h (15 to 93 mph). Always maintain awareness of your surroundings and operate your motorcycle in a safe manner. Failure to maintain awareness of your surroundings could result in an accident, possibly causing property damage, serious injury, or death.
- Page 29 My device is overheating The operating temperature range specification for the device is from -20° to 55°C (from -4° to 131°F). The status LED turns red and an icon is displayed in the zūmo Radar app or on your motorcycle navigator when your device is overheating and could indicate that the device is operating outside this range.
- Page 30 January 2025 GUID-3B03A850-46B2-47F7-B7AF-7CD84686A1DA v1...
