aquaBUBBLER Twin Refill Installation Manual

Twin Refill aquaBUBBLER Installation Guide
[Version 11: July 2024] Get the latest version: bit.ly/ab-installation

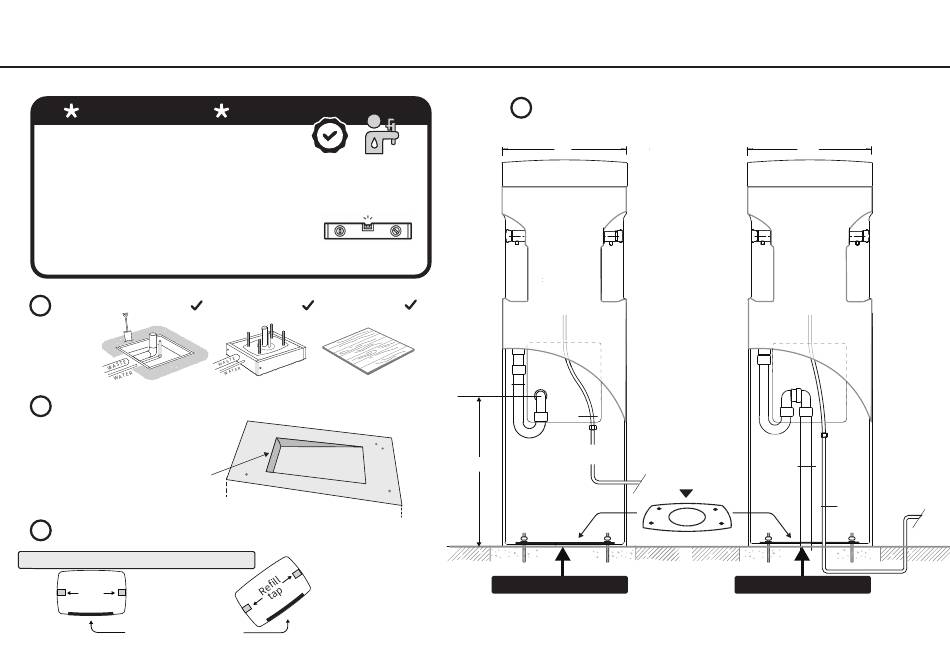

Page 1: Preinstallation Preparation
I M P O R T A N T
1. Unit must be installed by a Certified Plumber
2. Installation must be in accordance with
max water pressure 1000 kPa, max temp 40°C
3. Where installed in frost-prone areas, unit must be fitted with an
Anti-Freeze Valve.
4. Unit must be installed on a flat & level surface
Nonadherence to any of the above, or failure to follow the steps
detailed in this guide, will VOID ALL WARRANTIES
Install
Ground Work
1
onto:
2
Check that ground is level
If ground is NOT LEVEL,
recess a level area as suggested:
Ensure all edges are beveled
to avoid trip hazard
3 Determine Unit Orientation
W A L L
Refill
tap
ACCESS PANEL
needs to be accessible
(not facing the wall)
AS/NZS 3500.1 & AS/NZS 3500.2
Concrete Pad Timber Floor
LEVEL
installation surface
NOTE:
Poster will NOT be
visible if installed
next to a wall.
4 Determine Plumbing Connection
500
Pressure
Regulator
Access
Panel
Max
40
height
15
Waste
Water
Water
Inlet
670
Outlet
Install on flat & level Surface
Above Ground
Product Code: ABS14
500
Pressure
Regulator
Access
Panel
Waste
Water
Water
Internal Base
40
Outlet
Mounting Plate
(IBMP)
15
Install on flat & level Surface
Below Ground
Inlet
