- Page 1 User Manual Pure Sine Wave Inverter Make The Journey...
- Page 2 1. Forbidden for non-professionals to disassemble, repair or modify the inverter. 3. Appearance And Interface Description -----------------------------------------4 2. Do not place the inverter where children can touch it. 3.1. BV121000 ---------------------------------------------------------------4 3. Keep the inverter far away from harsh environments such as damp, greasy, flammable, 3.2. BV122000 ---------------------------------------------------------------5 explosive, or a large amount of dust.
- Page 3 2. Technical After Services 1-3. Installation Safety Instructions BougeRV provides a 1-on-1 solar solution and an 18-month warranty service. 1. Before installation, please read this manual carefully and be familiar with the installation steps. 2. Be very careful when installing the battery. When installing a lead-acid liquid battery, If you have any questions during use, please feel free to contact us: you should wear protective glasses.

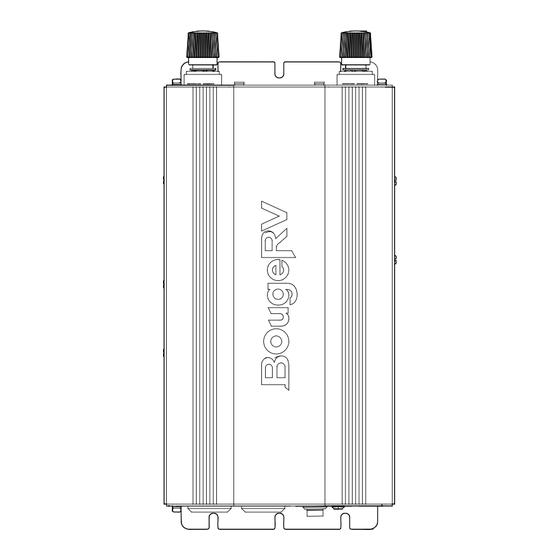

- Page 4 3. Appearance And Interface Description 3.2. BV122000 3.1. BV121000 6.65in / 169.05mm 3.98in / 101.12mm 2.96in / 75.18mm 5.67in / 144.00mm Interface Description： Interface Description： Positive electrode of battery input Positive electrode of battery input Negative electrode of Battery input...
- Page 5 4. Installation and Wiring 3.3. BV123000 7.94 in / 201.73mm 4.1 Installation Steps: Step 1: Read the user manual carefully. Step 2: Determine the installation position and heat dissipation space. Determine the installation position (wall-mounted or horizontal installation mode can be used).
- Page 6 IOS & Android Search for “BougeRV” in the APP Store (for IOS devices) or Google Play 4.2.3 AC Equipment (for Android devices). L:Live wire; N：Neutral wire；＋：Ground wire Please connect the ground wire first, then the fire wire L and zero wire N.
- Page 7 6. External Display 7. Base Specification Model BV121000 BV122000 Rated output power 1000W 2000W Peak power 2000W（1s） 4000W（1s） 50Hz Output voltage 110VAC/120VAC(default) 60Hz Output frequency 50/60 Hz(default) Rated input voltage 12VDC The input voltage ranges 10V-15.5VDC Output waveform Pure sine wave Maximun output efficiency...
- Page 8 8. Indicators And Alarms Model BV123000 Running indicator Fault indicator Working status Buzzer Run-blue Fault-red Rated output power 3000W Peak power 6000W（1s） Power on Steady On No sound Output voltage 110VAC/120VAC(default) Output frequency 50/60 Hz(default) Shut down No sound Rated input voltage 12VDC The input voltage ranges 10V-15.5VDC...
- Page 9 9. Overload Protection Description 10. RS485 Connection Diagram 3.1. BV121000 Switch position Switch position Load power Possible duration RS485A RS485B 120% ≤ Po ≤ 125% 125% ≤ Po ≤ 150% ＜10s Po﹥150% ＜5s，Stop output if the AC voltage is less than 90V.
- Page 10 11. Error Code 12.Recommended Cable Sizing PVC copper cable size(AWG/mm ) Ampcaity(A)tested at 194℉ Error code Cause of failure Solution 8（8.37） Parameter configuration fault Restart the inverter 6（13.3） Check and repair the current sampling Circuit sampling fault circuit and restart the inverter. ①...
- Page 11 A2: No. This model can only work with a 12V battery system. Q3: Can I use this inverter to charge my batteries? A3: No. The BougeRV 12VDC to 120VAC inverter can only convert DC power to AC power. Please check the BougeRV Pure Sine Wave Inverter Charger.
