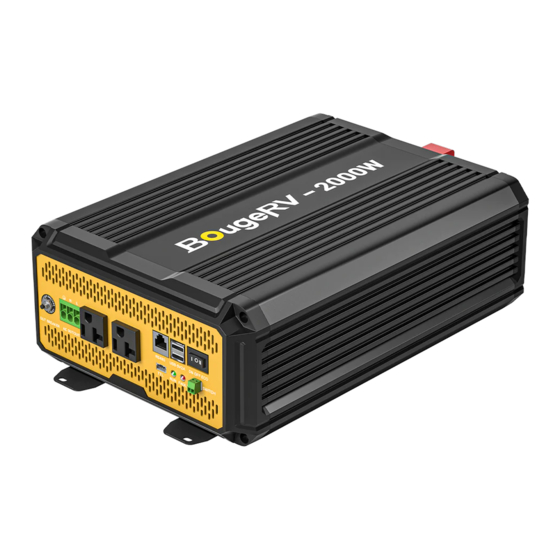

- Page 1 User Manual 12V 2000W High Frequency Pure Sine Wave Inverter Limitless energy,limitless life.
-
Page 3: Table Of Contents
Content Safety Instructions -------------------------------------------- 1 Feature ---------------------------------------------------------- 3 Warranty -------------------------------------------------------- 4 Appearance and Interface Description ------------------ 5 Installation and Wiring -------------------------------------- 6 Basic Parameters --------------------------------------------- 9 Interface Function Description --------------------------- 11 Protection Function ---------------------------------------- 17 Common Problems and Solutions ---------------------- 18 System Maintenance -------------------------------------- 21 -------------------------------------------------------------- 22... -
Page 4: Safety Instructions
Safety Instructions Please follow the safety instructions for operation, the damage caused by not following the safety instructions shall be borne by the individual. Please save these instructions Inverter Safety Information 1. Forbidden for non-professionals to disassemble, repair or modify the inverter. 2. - Page 5 Installation Safety Instructions Before installation, please read this manual carefully and be familiar with the installation steps. Be very careful when installing the battery. When installing a lead-acid liquid battery, you should wear protective glasses. Once you come into contact with the battery acid, please rinse it with clean water in time.
-
Page 6: Feature
Feature Reliable - Advanced SPWM modulation technology pure sine wave output, high power quality. - High power density and long life components are selected to support long-term operation at full power. Efficient - High conversion efficiency, low loss, low harmonic distortion. - Three-speed operation mode, ON/OFF/ECO to maximize power saving. -
Page 7: Warranty
If you could provide the following relevant information to our email (service@bougerv.com) BougeRV provides an 18-month warranty service for the battery. Please read and follow the safety instructions in the manual carefully. The warranty service takes effect from the date of purchase. -
Page 8: Appearance And Interface Description
Appearance and Interface Description Product size: 409*249*120mm/16.1*9.8*4.7in Interface Description 1 Positive electrode of battery input 2 Negative electrode of Battery input 3 Cooling fan 4 Input grounding terminal 5 Output overload protector 6 AC output terminal 1 7 AC output terminal 2 8 RS485 communication interface 9 USB interface 10 ON/OFF/ECO mode switch... -
Page 9: Installation And Wiring
Installation and Wiring Installation Steps: Step 1: Read the user manual carefully. Step 2: Determine the installation position and heat dissipation space. Determine the installation position (wall-mounted or horizontal installation mode can be used). When installing the inverter, ensure that sufficient space is available and the inverter is removed At least 200mm (7.9in) space should be left between the tuyere and the intake for air circula- tion. - Page 10 3.2 Battery positive and negative wires BAT+: positive BAT-: Negative Input has no reverse connection protection. Before connecting the battery cable, ensure that the positive and negative terminals are correctly connected; otherwise, the inverter may be damaged! 3.3 AC Equipment 1) The device has two AC output interfaces.
- Page 11 Stop the inverter to remove the wiring, then use a sharp tool to insert the small hole above the interface and pull out the connecting wire by force. 2) The inverter is equipped with 2 standard American standard terminal, as shown in the figure below, the maximum current bearing capacity of the terminal is 20A.
-
Page 12: Basic Parameters
Basic Parameters Product Model IU12-2KW Note Rated output power W 2000W Rated output power vA 2000VA instantaneous 4000W impact power Default: 120 V, adjusted by Rated output voltage 110VAC/115VAC/120VAC (±3%) communication Default: 60 HZ, adjusted by Output frequency 50/60 Hz (±0.2%) - Page 13 Product Model IU12-2KW Note When this function is used, it External switch Can be switched on and off by is necessary to switch ON contact interfacc external relays, mechanical mode Input over-voltage/over-discharge protection, output No input reverse connection Protection function...
-
Page 14: Interface Function Description
Interface Function Description 1 RS485 communication 1) The default baud rate is 9600kps; Check digit: None; Data bit: 8bit; Stop bit: 1bit 2) Interface type RJ45, communication power output specification: 5V/200mA 3) RS485 communication line sequence is defined as follows. The interface integrates remote switch interface (SW1/SW2) and CAN communication interface When the port (SW1/SW2) is suspended in open circuit=OFF mode;... - Page 15 4 Operating mode switch With a 3rd position boat switch, the inverter has 3 operating modes including OFF, ON, and ECO when the external switch contact is closed. Switch position Definition of mode Description of mode Device is in standby idle state, indicator, commu- Idle mode, no AC output nication function, USB output and other functions are normal, no AC output...
- Page 16 6 Bluetooth module Built-in Bluetooth communication function can monitor the operation data, fault status and adjust the operation parameters of the inverter in real time through mobile APP. Download Scan the QR code on the right to download the application; IOS &...
- Page 17 Learn about software versions and change settings Device Information User Setting Change for English 1. Client Language or Chinese 2. User FeedBack Share Your Advice 3. Help Center Help to Connect 4. Term Convert For °C / °F APP main interface Real-time status The ratio of inverter output power to the maximum...
- Page 18 History The usage data of a week can be viewed and the accumulated electricity consumption needs to be counted for 24 hours, and the electricity consumption of the day is normally displayed according to the date. Historical data can be shared in multiple ways or cleared Basic info...
- Page 19 Parameter Set Rate input voltage. Voltage of The default value is 12V, which can not System be changed Battery overvoltage protection voltage Overvoltage Default 16V, adjustment range is 12-16V overvoltage Battery overvoltage recovery voltage. recovery Default 15V,adjustment range is voltage 11-15V Over-dis- Overdischarge protection voltage.De-...
-
Page 20: Protection Function
Protection Function 1. Input overvoltage protection When the battery voltage is higher than the input overvoltage protection voltage, the AC output is turned off, and the fault indicator light and buzzer prompt; when the battery voltage is lower than the input overvoltage protection voltage -1V, the AC output is restored 12V system 24V system Input voltage of over-voltage protection... -
Page 21: Common Problems And Solutions
4. Output short circuit protection When the AC output L/N is short-circuited, the inverter will automatically shut down the AC output, and the fault indicator and buzzer will prompt. When short-circuit protection occurs in the inverter, the AC output has 3 automatic recovery functions (the first time delay is 5s, the second time delay is 10s, and the third time delay is 15s). - Page 22 Symptom Cause of failure Possible cause Solution The red light flashes Load overload The power of the Check whether the once, the green light load equipment is AC load is within is always on, the greater than the the rated power buzzer sounds, rated output power.
- Page 23 Running indicator Fault indicator Fault-red Working status Buzzer Run-green Idle mode Single flash No sound Normal mode Steady on No sound ECO mode Slow flashing No sound Battery over-discharge Slow flashing 1HZ beep Battery overvoltage Fast flashing 1HZ beep Device over-tempera- Double flash 1HZ beep ture protection...
-
Page 24: System Maintenance
System Maintenance In order to maintain long-term working performance, it is recommend- ed to check the following items twice a year. 1. Check exposed wire insulation damage due to sun exposure, friction with other surrounding objects, dry rot, insect or rodent damage, etc. And then repair or replace wires as needed. 2. -
Page 25: Faq
Why is there no green light flashing in the standby state of the inverter after the inverter is connected to the battery? There is a problem with the line contact, reconnect the battery and the inverter. Can this inverter be connect with a 24V battery system? No. - Page 26 2000W, excessive instanta- neous power will cause abnormal operation and even damage the inverter. BougeRV Provides 1-on-1 Solar Solution. If you have any questions during use,please feel free to contact us: service@bougerv.com...
- Page 28 www.bougerv.com...
