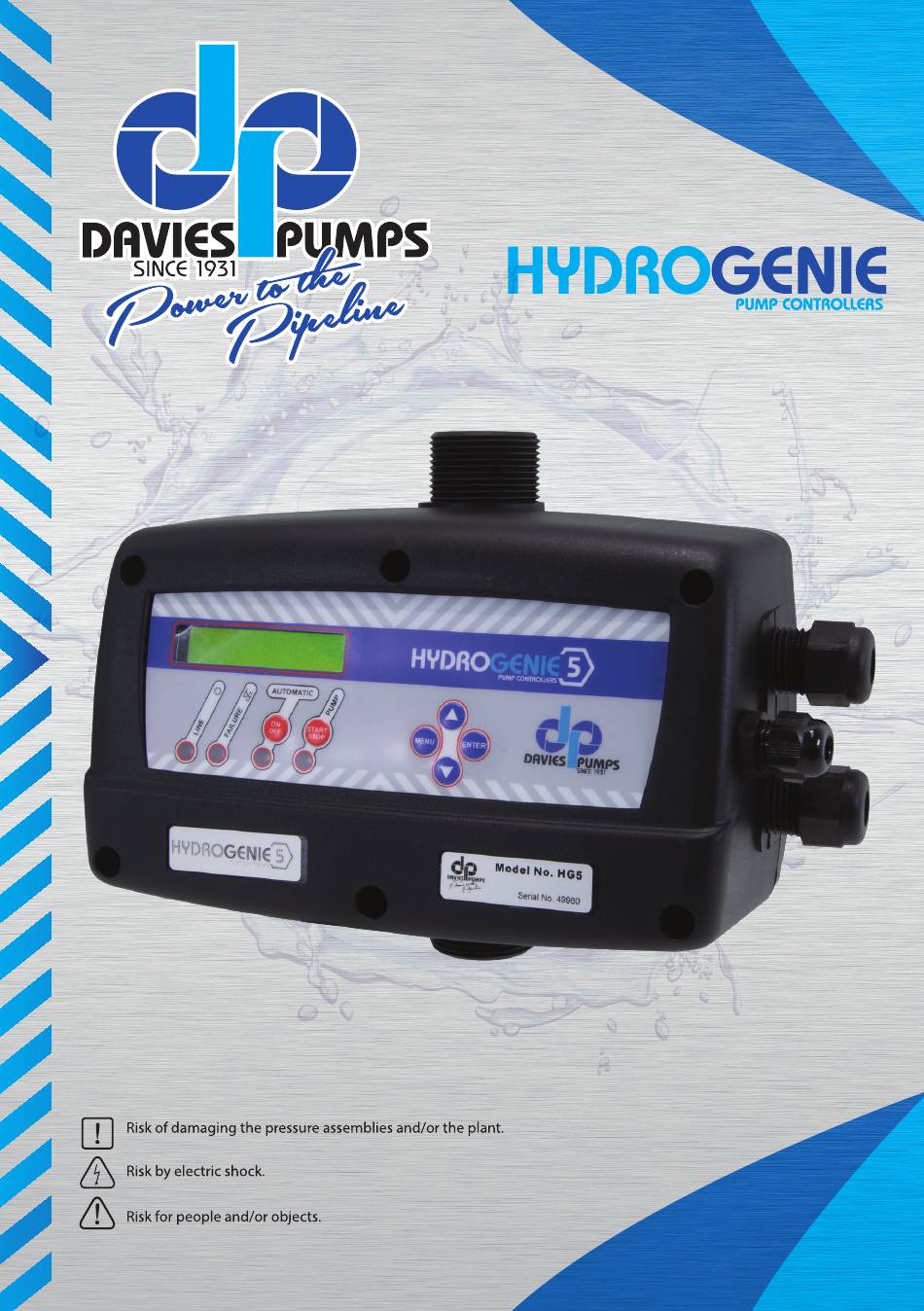

- Page 1 HG5 Owners Manual...

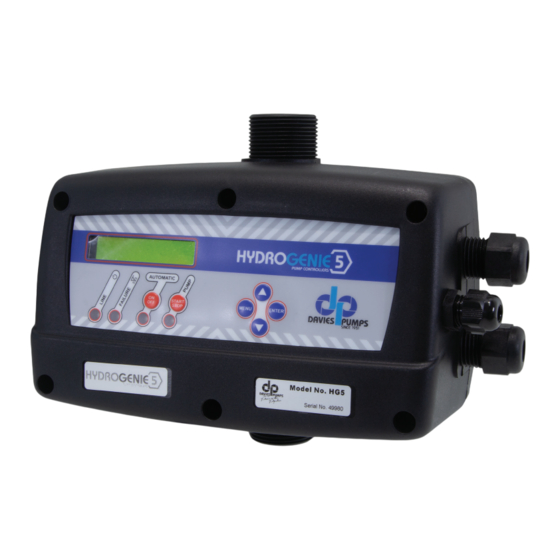

- Page 2 Notify your supplier if you have any questions. Introduction The HydroGenie 5 is an electronic pump controller with a pressure transducer and flow sensor to manage a single or three phase pump up to 10A 2.2Kw (3.0Hp) and protect from run dry failure and overload.
-
Page 3: Technical Features
Technical Features: Rated motor power: 0.37-2.2Kw Voltage: 1~ 230V / 3~ 400V Frequency: 50-60Hz Max. Current: 10A Protection: IP55* Max. Water Temp/Ambient: 40 ºC /50 ºC Start pressure range (on/off mode): 1-5 Bar Max. start pressure (Pressure mode): 6.5 Bar Max. - Page 4 Three-phase motor Single-phase motor BODY CONNECTIONS ~3 400 V Transformer fuse 250 mA ~3 230 V 400 V ~1 230 V 230 V Single-phase power supply 3-phase power supply ~3 400 V ~3 230 V ~1 230 V Pump connection Power supply Pump fuse 10 A Fig.
- Page 5 HYGROGENIE 5 Fig. 1 HYDROGENIE 5 PUMP CONTROLLERS 1.- LCD screen: during the configuration process, it shows the different parameters. When HYDROGENIE 4 is running, it shows the current pressure, the configured target pressure and the alerts. 2.- Push-button PUMP Start-Stop: will only run with the automatic mode disabled (AUTO LED off).
- Page 6 START UP: Connect the HG5 to the electric supply via the mains switch. Wait for 5 seconds while the HG5 is running autotest. If the unit is started for the first time, it will directly open the configuration menu. The LCD screen will display a message for language selection.
- Page 7 System is ready to operate. PLINE PON POFF Press AUTOMATIC On/Off, green LED is lit. From this moment 05,0 02,0 06,0 the LCD screen will show: ↑• On-off mode: current pressure (P:X) and start pressure. PLINE 05,0 INT 9,0 F 1 ↑•...
-
Page 8: Blank Screen
A4: OVER CURRENT ALERT OVERCURRENT Warning: Failure verification: LED LIGHT FAILURE FLASHING. Final failure: LED LIGHT FAILURE ON. • Description: the pump is protected against over-current depending on the current value defined in the configuration menu. These over- currents are generally caused by malfunctions of the pump or in the electric supply. - Page 9 REGISTER OF OPERATION DATA AND ALARMS. By simultaneously pressing MENU + ↑ for 3”, the REGISTER OF OPERATION DATA AND ALARMS is opened, by mean of ENTER we can advance through the sequence, once finished the sequence we come back to the main display. This is all the sequence: Register of alarms MENU+...
- Page 10 Warranty Policy for Davies Pump Controllers Your Davies Pump Controller, when used for its designed purpose should give you years of trouble free service. Please take the time to read and understand the operator’s manual for this product before installing and operating. Failure to install and operate as per the operation instructions will render warranty on this unit void.
- Page 11 “CE” STATEMENT OF COMPLIANCE. COELBO CONTROL SYSTEM. We state, on our’s own responsibility, thal all materials herewith related comply with the following European standards: 2006/95/EC Low Voltage Directive on Electrical Safety 2004/108/CE Electromagnetic Compatibility. 2002/95/CE RoHS Directive Product’s name/Type: HYGROGENIE 5 As per the European Standards: UNE EN 60730-1:1998+A11:1998+A2:1998+A14:1998+A15:1998+A16:1998+A17:2001 UNE EN 60730-2-6:1997+A1:1998+A2:1999+CORR A1:2001+CORR A2:01...
- Page 12 For your nearest dealer please contact Argon Distributors: 0508 634 341 While every endeavor has been made to publish the correct details, no responsibility will be taken for errors, omissions or changes in product specifications. Davies pumps and the ‘dp’ logo are registered trademarks of Argon Distributors.
