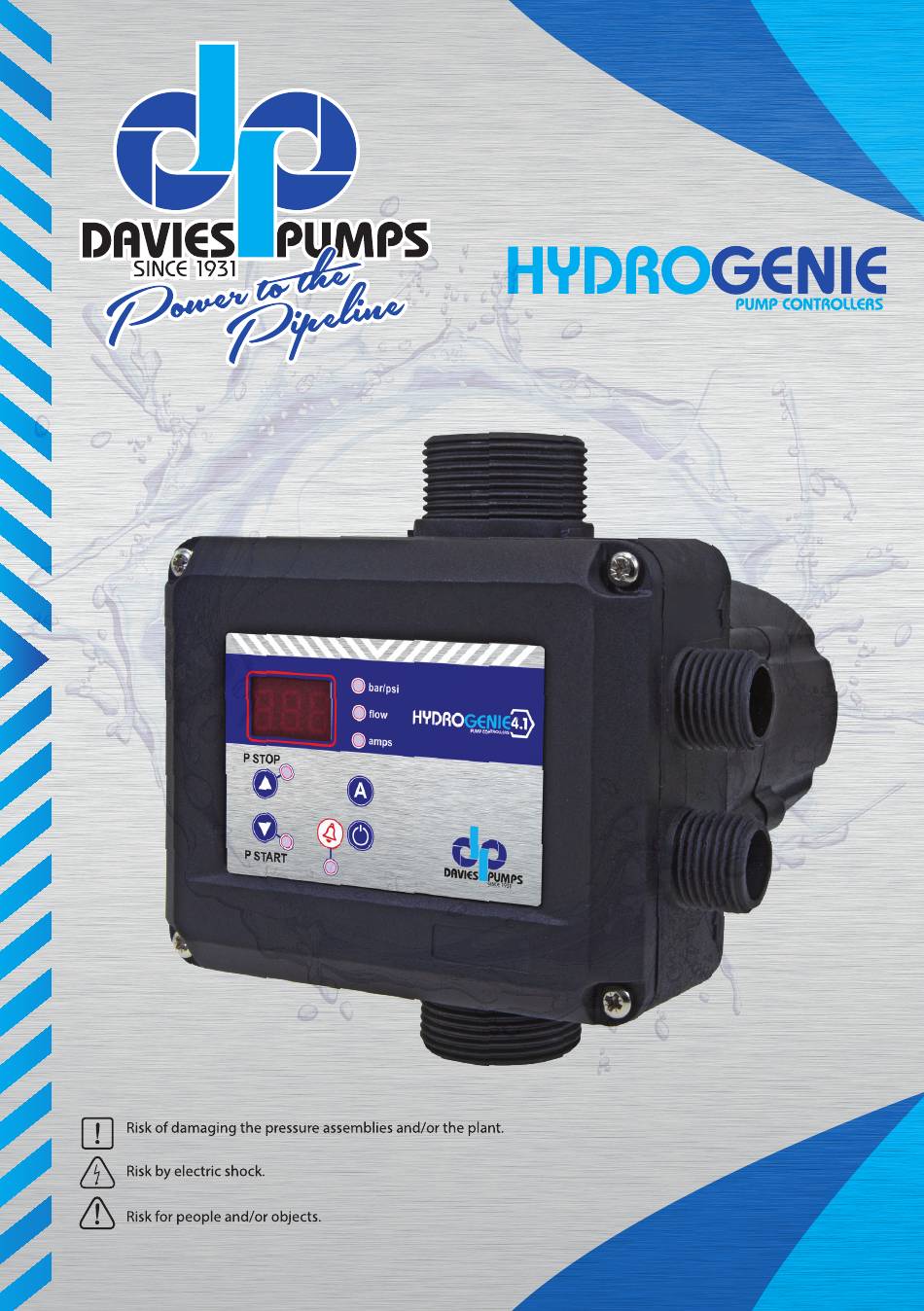

- Page 1 4.1 Owners Manual...
- Page 2 Dear Client Dear Client, Congratulations on your purchase of a Hydrogenie 4.1 Electronic Pump Controller. Please carefully read the following instruction and installation guide to ensure this is set up correctly to give a long and trouble-free service life.
-
Page 3: Table Of Contents
Introduction The HydroGenie 4.1 is an electronic pump controller with pressure and flow sensors to manage a single-phase pump up to 2.2Kw (3.0Hp), protect from run dry failure and overload. There are two operating modes to allow the best control method: •... -
Page 4: Technical Features
Technical Features: Rated motor power: 0.37-2.2Kw Voltage: 1~ 110-230V Frequency: 50-60Hz Max. Current: 16A Cosfi > 0.6 Protection: IP65** Max Water Temperature/Ambient: 50 ºC /60 ºC Start pressure range: 0.5-7 Bar Stop pressure range (Pressure mode only): 1-8 Bar Factory set start pressure: 1.5 Bar Max Operating pressure: 8 Bar Hydraulic Connection: 1.25”... -
Page 5: Control Panel Status
Control Panel Status The Hydrogenie HG4.1 uses an LCD screen, LED indicator lights and push buttons to display operation and set up data. Mode Screen Display Operation Shows current operating pressure value. Adjustment Shows set pump start pressure. Alarm Shows alarm code. (see alarm menu) Standby Shows 3 blinking dots. -
Page 6: Start Up Configurations
BUTTON PUSH Meaning When unit is on: Restores operation from dry run failure. Power Touch When unit is off: Pump starts and resumes normal operation. In configuration menu: Sets value and moves to next setting. When unit is on: Turns controller off. Hold When unit is off: Pump starts and runs until button is released. -
Page 7: Basic Menu Configurations
Basic Menu Configurations Basic menu configurations can be set by simultaneously holding the ▲ and ▼ buttons for 5s, then using the ▲ or ▼ buttons to change each configuration value and the power button to set and move to the next item. Configuration sequence is: Item Value... -
Page 8: Warning And Alarm
Warnings and Alarms Warning Description Action Alarm When a dry run is detected and ART is disabled, the pump will stop and can be restarted by pressing the power button. Dry run If the ART system is active it will attempt to restart the pump detection for the set number of attempts and time span. - Page 9 EC STATEMENT OF COMPLIANCE COELBO CONTROL SYSTEM, S.L. States on our own responsibility, that all materials herewith related comply with the following European Directives: - 2014/35/EU. - 2014/30/EU. - 2014/65/EU. Standards : EN-60730-2-6, EN-60730-1, EN-61000-6-1, EN-61000-6-3, IEC-60730-1, IEC-60730-2-6...
-
Page 10: Warranty
Warranty Policy for Davies Pump Controllers Your Davies Pump Controller, when used for its designed purpose should give you years of trouble free service. Please take the time to read and understand the operator’s manual for this product before installing and operating. Failure to install and operate as per the operation instructions will render warranty on this unit void. - Page 11 When it comes to pumps..what’s needed is proven: ü Reliability ü Features ü Technology...
- Page 12 For your nearest dealer please contact Argon Distributors: 0508 634 341 While every endeavor has been made to publish the correct details, no responsibility will be taken for errors, omissions or changes in product specifications. Davies pumps and the ‘dp’ logo are registered trademarks of Argon Distributors.
