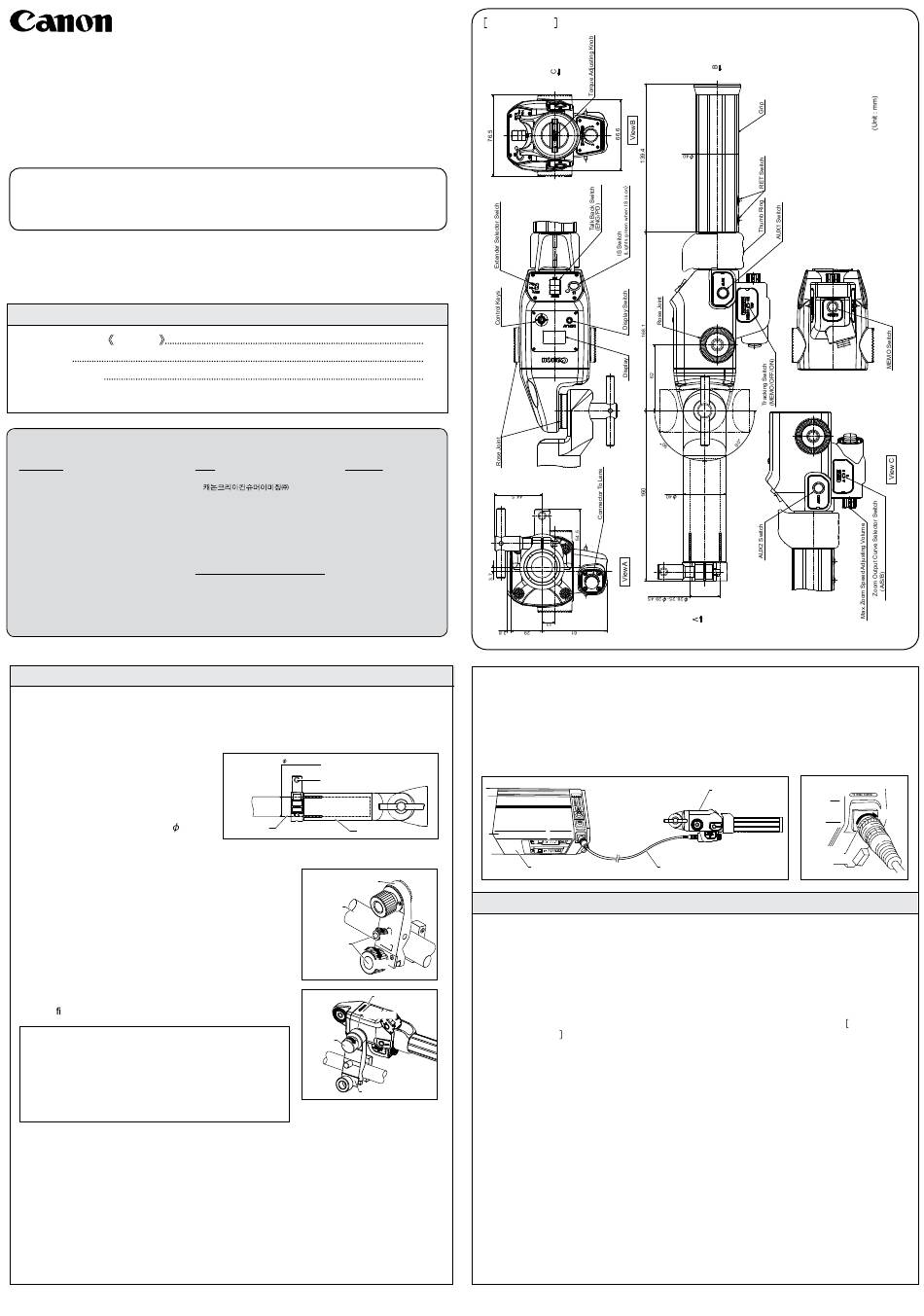

Canon ZDJ-G01 Operation Manual

Lens Accessory
Zoom Demand
ZDJ-G01
Operation Manual (BT1-B157-A)
(1) Read "GENERAL SAFETY INFORMATION" before using the product. The safety
cautions must be observed.
(2) Read operation manual (this sheet) before using the product. Keep the manual in
place for future reference.
Thank you for purchasing a focus demand <ZDJ-G01>.This zoom demand
<ZDJ-G01> is an accessory used to perform zoom servo operations of a box type
lens. The zoom can be operated remotely by using this demand.
1 Product Components
Zoom Demand ZDJ-G01
Clamper
Demand Cable
Operation Manual
CONTACT INFORMATION BY REGION
Please contact your dealer or the contacts below, if you have questions on the products.
AMERICAS
BRAZIL
Canon do Brasil Industria e Comercio Ltda.
http://www.canon.com.br/suporte
Tel: +55 (11) 4950-5460
CANADA
Canon Canada, Inc.
http://canon.ca/support
Tel: (800) 667-2666
MEXICO
Canon Mexicana, S. de R.L. de C.V.
http://www.canon.com.mx/servicio/contactanos
Tel:+52 55 5249 4905
USA
Canon U.S.A., Inc.
http://usa.canon.com/support
Tel(BCTV) : 800-423-5367(USA Only)
Tel(Cinema Lens) : 855-246-3367(USA Only)
2 Mounting and Connecting
2-1. Mounting the Zoom Demand
Mount the zoom demand onto the pan handle of the tripod by one of the two procedures
below.
A. For a demand that is put onto the
pan handle
Put the sleeve onto the pan handle of
the tripod until it stops, then turn the
lock lever to secure the sleeve.
The applicable pan handle is
28.45 mm in diameter.
B. For a clamper-mounted demand
1. Loosen the large and small fastening knobs of the
clamper, then mount the clamper to the pan handle
of the tripod.
2. After mounting the clamper to the pan handle of the
tripod, tighten the large and small fastening knobs of
the clamper to secure the clamper.
3. Mate the rose joint of the zoom demand with the
rose joint of the clamper.
4. Tighten the mounting knob of the clamper firmly to
x the clamper to the zoom demand.
NOTE
1. The mounting angle of the zoom demand can be
adjusted according to how the rose joints are mated.
2. This zoom demand has three rose joints. Mount the
zoom demand using the rose joint at the desirable
position for easy operation.
Pub No. BT1-B157-A
ASIA OCEANIA
KOREA
Canon Australia Pty Ltd.
http://www.canon-ci.co.kr
SOUTH &SOUTHEAST ASIA
Canon Singapore Pte. Ltd.
http://www.canon-asia.com/bctv
TAIWAN
Canon Marketing (Taiwan) Co., Ltd.
http://www.canon.com.tw/index.aspx
EUROPE, MIDDLE EAST, AFRICA
Canon Europe Ltd.
http://www.canon-europe.com
Tel:+44(0)20-8588-8140
Canon Europa N.V.
Bovenkerkerweg 59, 1185 XB Amstelveen,
The Netherlands
28.25-28.45
Lock Lever
28.25-
Pan Handle
Clamper
Pan Handle
Small
Fastening Knob
Mounting
Knob
External view
1
1
1
http://www.canon.com.au
2-2. Connecting the Demand Cable
Follow the procedures below to connect the demand cable to the lens.
1. Plug the male connector of the demand cable into the receptacle labeled "TO SERVO
CONTROL" at the rear bottom of the lens, then turn the fixing ring of the connector
clockwise to tighten the demand cable securely.
2. Plug the other end of the cable into the connector on the zoom demand.
Sleeve
Lens
3 Basic Operation and Function
3-1. Zoom Operation
Lock
The lens is zoomed toward the telephoto end by turning the thumb ring of the zoom demand
clockwise, as viewed from the grip of the demand.
Lock
The lens is zoomed toward the wide-angle end by turning the thumb ring counterclockwise.
The zoom speed varies according to the rotation angle of the thumb ring.
During zooming, the approximate focal length can be checked with the indicator on the left
Zoom Demand
side of the lens, as viewed from the camera.
Rose Joint
* Specifying the zoom direction can be changed on the display. For details, refer to Specifying the
zoom direction in "5-7-4. Ctrl Screen".
3-2. Maximum Zoom Speed Adjustment
The maximum speed obtained by completely turning the thumb ring of the zoom demand can
be changed with the zoom speed adjusting knob.
Clamper
Turn it clockwise to increase the zoom speed. And, turn it counterclockwise to decrease the
speed.
3-3. Torque Adjustment
Turning the torque adjusting knob on the zoom demand clockwise to increase the torque for
the thumb ring rotation.
To decrease the torque, turn the knob counterclockwise.
© 2019.02 CANON INC.
Zoom Demand
Fixing Ring
Demand Cable
Lock
7/22
