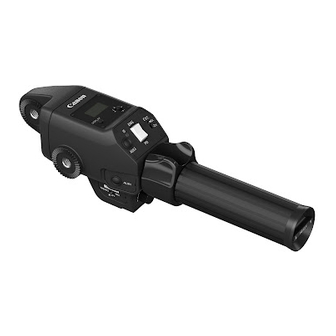

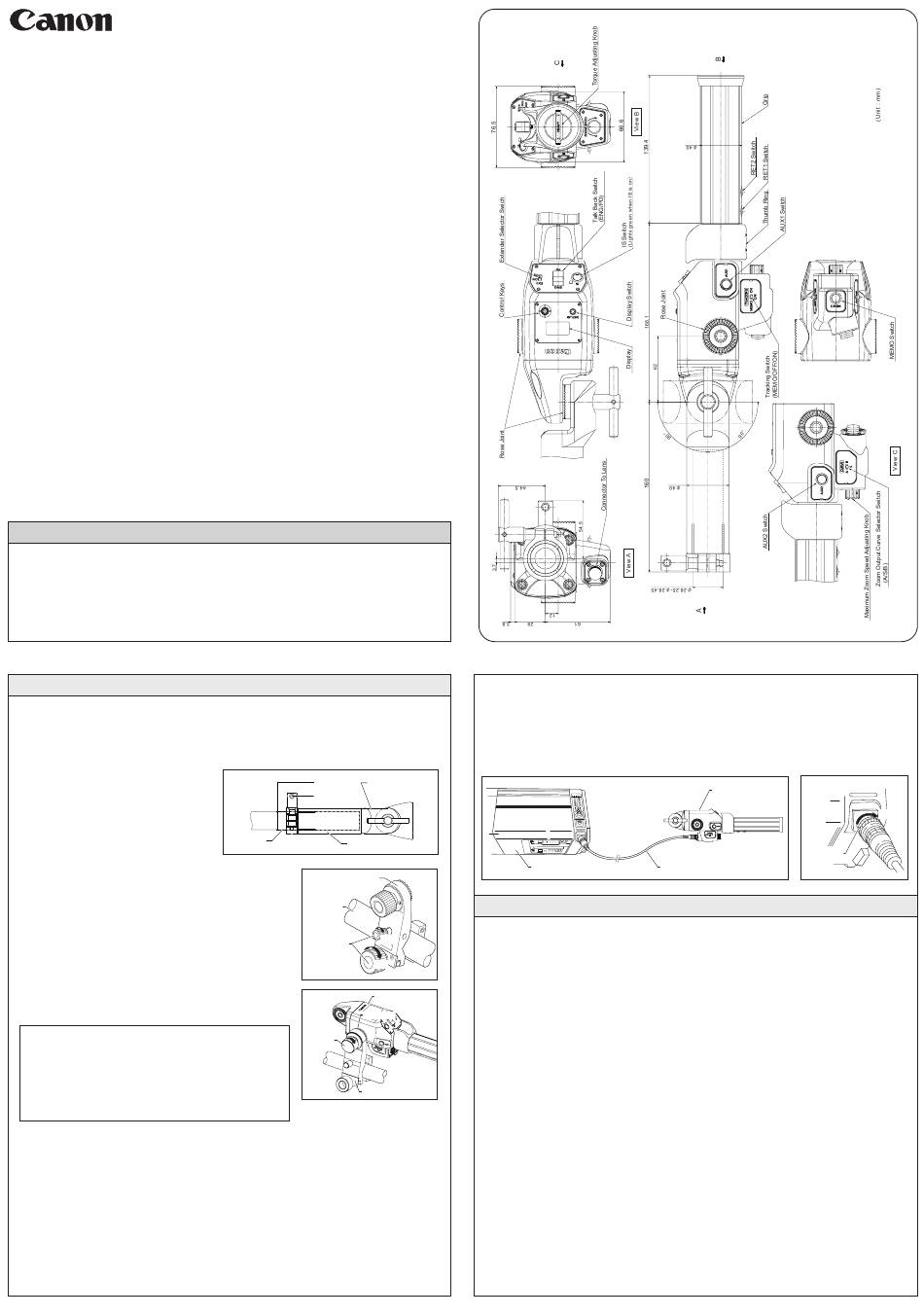

Canon ZDJ-G01 Operation Manual

Lens Accessory
Zoom Demand
ZDJ-G01
OPERATION MANUAL
Before using the product, make sure to read the "GENERAL SAFETY INFORMATION"
and be sure to use the product correctly.
Thank you for purchasing a zoom demand ZDJ-G01. This zoom demand ZDJ-G01 is an
accessory used to perform zoom servo operations of a box type lens. The zoom can be
operated remotely by using this demand.
This product comes with the following documents:
• Operation Manual "Before Using The Product" （Included with the product）
• Operation Manual "Regulations" （Included with the product）
• Operation Manual （Web）
1 PRODUCT LIST
Make sure all of the following items are included in the packing box. If you find any item
missing, please contact your dealer.
・Zoom Demand
・Clamper（cylinder type）
・Demand Cable
・Operation Manual "Before Using The Product"
・Operation Manual "Regulations"
2 MOUNTING AND CONNECTING
2-1. Mounting the Zoom Demand
Mount the zoom demand onto the pan handle of the tripod by one of the two procedures
below.
A. For a demand that is put onto the pan handle
Put the sleeve onto the pan handle of
the tripod until it stops, then turn the
lock lever to secure the sleeve.
The applicable pan handle is φ 28.25-
28.45 mm in diameter.
B. For a clamper(CR-30)-mounted demand
1. Loosen the large and small fastening knobs of the
clamper, then mount the clamper to the pan handle
of the tripod.
2. After mounting the clamper to the pan handle of the
tripod, tighten the large and small fastening knobs of
the clamper to secure the clamper.
3. Mate the rose joint of the zoom demand with the
rose joint of the clamper.
4. Tighten the mounting knob of the clamper firmly to fix
the clamper to the zoom demand.
NOTE
1. The mounting angle of the zoom demand can be
adjusted according to how the rose joints are mated.
2. This zoom demand has three rose joints. Mount the
zoom demand using the rose joint at the desirable
position for easy operation.
BT1-D019-A-ENG
φ28.25-28.45
Clamper(cylinder type)
Lock Lever
Pan Handle
Sleeve
Clamper
(CR-30)
Pan Handle
Lock
Fastening Knob
Lock
Zoom Demand
Rose Joint
Mounting
Knob
Clamper(CR-30)
［External view］
2-2. Connecting the Demand Cable
Follow the procedures below to connect the demand cable to the lens.
1. Plug the male connector of the demand cable into the receptacle labeled "TO SERVO
CONTROL" at the rear bottom of the lens, then turn the fixing ring of the connector
clockwise to tighten the demand cable securely.
2. Plug the other end of the cable into the connector on the zoom demand.
Lens
3 BASIC OPERATION AND FUNCTION
3-1. Zoom Operation
The lens is zoomed toward the telephoto end by turning the thumb ring of the zoom demand
clockwise, as viewed from the grip of the demand.
The lens is zoomed toward the wide-angle end by turning the thumb ring counterclockwise.
The zoom speed varies according to the rotation angle of the thumb ring.
During zooming, the approximate focal length can be checked with the indicator on the left
side of the lens, as viewed from the camera.
* Specifying the zoom direction can be changed on the display. For details, refer to ［Specifying the
zoom direction］in "5-7-4. Ctrl Screen".
3-2. Maximum Zoom Speed Adjustment
The maximum zoom speed obtained by completely turning the thumb ring of the zoom
demand can be changed with the maximum zoom speed adjusting knob.
Turn it clockwise to increase the zoom speed. And, turn it counterclockwise to decrease the
speed.
3-3. Torque Adjustment
Turning the torque adjusting knob on the zoom demand clockwise to increase the torque for
the thumb ring rotation.
To decrease the torque, turn the knob counterclockwise.
© 2022.10 CANON INC.
Zoom Demand
Fixing Ring
Demand Cable
TO SERVO CONTROL .
Lock
1/6
