Thank you for purchasing the Fastway® FLASH™ SILENT ball
mount. We are happy to welcome you to our towing family. Read
these instructions thoroughly to become familiar with proper set
up and maintenance procedures. This will help ensure maximum
performance, and years of service.
Keep these instructions for future reference or access them online at
fastwaytrailer.com/manuals.
Fastway Trailer Products • A Dexter Company
353 South 1100 West Provo UT 84601 • fastwaytrailer.com • 877-523-9103
7

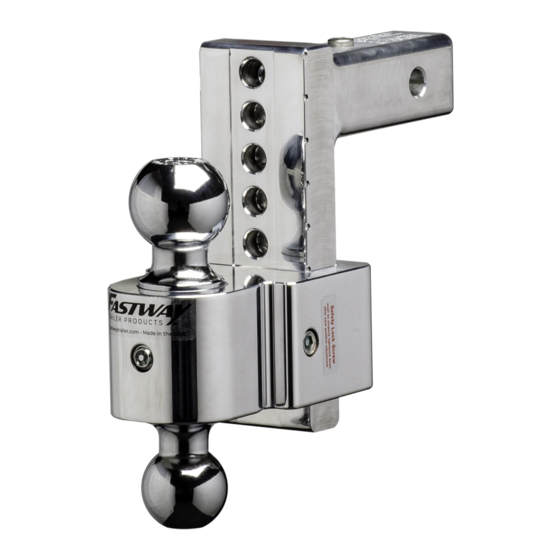

Model 47-00-3600 shown
FLASh
BALL MOUNTS
silent
1.
Receiver tension bolt
2. Drop bar (shown in drop position)
3. Positioning indicator notches
1
4. Safety lock bolt
5. 5/16" security hex key
6. Ball holder adjustment bolt
7.
Ball holder
2
8. Optional locking hitch pin
9. Dual hitch ball
10. Height adjustment holes
3
11. Receiver tension bolt lock
4
5
6
8
Model
47-00-3400
47-00-3600
47-00-3800
47-00-3900
47-00-3606
47-00-3086
47-00-3906
2" ball 1,000 lb max tongue wt. 8,000 lb
max trailer wt.
2 5/16" ball 1,000 lb max tongue wt.
10,000 lb max trailer wt.
Optional locking hitch pin,
sold separately:
2"
86-00-3050
2 1/2"
86-00-3160
Drop
Rise Shank
4"
6"
8"
10"
6"
8"
10"
™
5"
2"
7"
2"
9"
2"
11"
2"
6"
2 1/2"
8"
2 1/2"
10"
2 1/2"
Advertisement
Related Manuals for Dexter Laundry Fastway FLASH SILENT
Summary of Contents for Dexter Laundry Fastway FLASH SILENT
- Page 1 FLASh ™ BALL MOUNTS silent Receiver tension bolt 2. Drop bar (shown in drop position) 3. Positioning indicator notches 4. Safety lock bolt 5. 5/16” security hex key 6. Ball holder adjustment bolt Ball holder 8. Optional locking hitch pin 9.
- Page 2 ÁWarnings Anti-Rattle Technology Failure to follow all safety warnings may result in severe injury or death. The FLASH SILENT features anti-rattle technology that • Always load the trailer correctly. Follow trailer and tow virtually eliminates all noise from the hitch. During the initial vehicle manufacturer’s recommendations for placement and setup, follow these instructions: quantity of cargo.
- Page 3 Lubricate - Always lubricate the hitch ball with heavy, multi- 9. Always lock the ball holder to the drop bar with the adjustment bolt and tighten the safety lock bolt before purpose grease or wheel bearing grease. As needed, remove the placing a load on the ball mount.
- Page 4 Find Us Online We would love to connect with you. Find us on these social media platforms. YOUTUBE youtube.com/fastwaytrailer FACEBOOK facebook.com/fastwaytrailer X.com/fastwaytrailer INSTAGRA instagram.com/fastwaytrailer Visit Fastway® Trailer Products at www.fastwaytrailer.com for faster and easier towing solutions. Great products make towing faster and easier. Get more info at fastwaytrailer.com. Protect your fingers from loose, Save time and effort by extending Virtually eliminates unwanted...
