FLASH SCALE
MODEL
DROP
48-00-8400
4"
48-00-8600
6"
48-00-8800
8"
48-00-8900
10"
FLASH SCALE HD
MODEL
DROP
48-00-8625
5"
48-00-8825
7"
48-00-8925
9"
MAX TONGUE
WT. LB
SCALE
1,000
SCALE HD
1,800
*2" Ball limited to 8,000 lb max trailer wt.
1
10
9
8
11
RISE
SHANK SIZE
5"
7"
2"
9"
11"
RISE
SHANK SIZE
7"
9"
2 ½"
11"
MAX TRAILER
WT. LB
10,000*
18,000*
2
3
4
5
6
7
FLASh
BALL MOUNTS
SCALE
SCALE HD

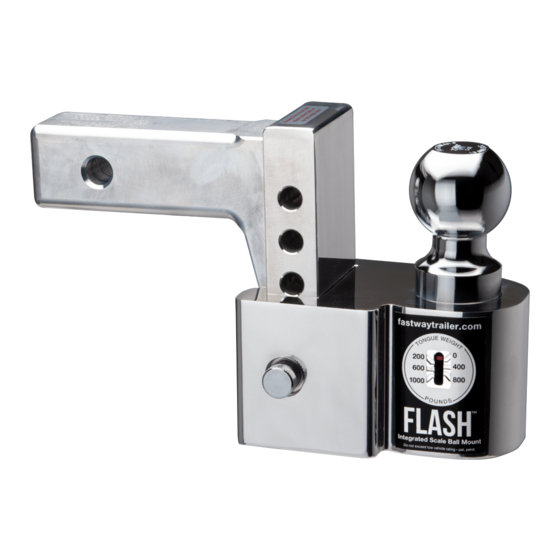

Thank you for purchasing the Fastway® FLASH™
SCALE ball mount. We are happy to welcome
you to our towing family. Read these instructions
thoroughly to become familiar with proper set
up and maintenance procedures. This will help
ensure maximum performance, and years of
dependable service.
Keep these instructions for future reference or
access them online at fastwaytrailer.com/manuals.
1.
Drop bar
2. 2 5/16" diameter hitch ball
3. 2" diameter hitch ball
4. Indicator ring
5. Spring
6. Spring base
7.
Cotter pin
8. Height adjustment pin
9. Ball holder
10. Ball retaining pin
11. Scale indicator
™
Locking pin set sold
separately (keyed alike
hitch pin and ball height
adjustment pin)
SCALE: 86-00-3660
SCALE HD: 86-00-3685
Advertisement
Related Manuals for Dexter Laundry Fastway FLASH SCALE
Summary of Contents for Dexter Laundry Fastway FLASH SCALE
- Page 1 FLASh ™ FLASH SCALE BALL MOUNTS MODEL DROP RISE SHANK SIZE SCALE 48-00-8400 4” 5” SCALE HD 48-00-8600 6” 7” 2” 48-00-8800 8” 9” 48-00-8900 10” 11” Thank you for purchasing the Fastway® FLASH™ FLASH SCALE HD SCALE ball mount. We are happy to welcome MODEL DROP RISE...
- Page 2 Important Safety Information Setting Up Failure to follow all safety warnings may result in severe injury Level the trailer by parking it on a flat surface. or death. Measure from the ground to the frame at both the front and rear of the trailer.
- Page 3 10. Uncouple the trailer. Switching Hitch Ball Sizes 11. Raise the ball holder to the adjusted towing height, and pin it into the nearest hole. It is best to tow with the trailer To switch hitch ball sizes, uncouple the trailer, and remove as level as possible.
- Page 4 Stow-Away Feature Limited 1 Year Warranty Do not return this product to the retailer. The SCALE ball mount can rotate under the truck bumper when not in use, protecting your shins and avoiding impact with For warranty claims or customer support contact anything when in reverse.
