Thank you for purchasing the Fastway® FLASH™
SECURE or SECURE HD ball mount. We are happy
to welcome you to our towing family. Read these
instructions thoroughly to become familiar with
proper set up and maintenance procedures. This
will help ensure maximum performance and years
of service.
Keep these instructions for future reference or
access them online at fastwaytrailer.com/manuals.
Key code:
Important: Lost keys cannot be replaced without the
key code. Write it down and keep it in a safe place. If
you lose your keys, contact us about a replacement at
877-523-9103.
Please register your product. See warranty
information on back.
Made in the USA
Fastway Trailer Products • A Dexter Company
353 South 1100 West Provo UT 84601 • fastwaytrailer.com • 877-523-9103
5
6
8

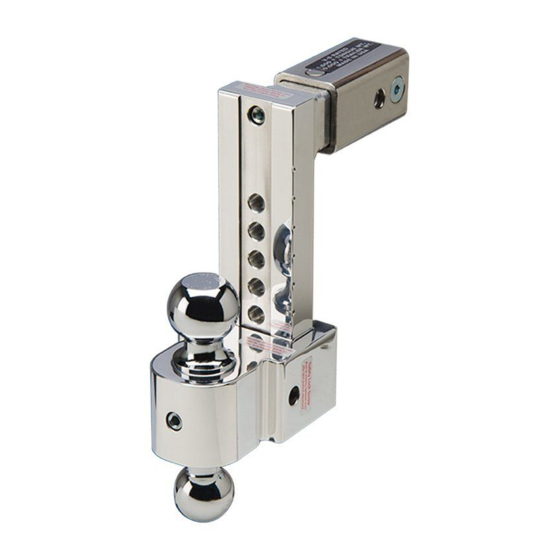

Model 44-00-4825 shown
3
4
7
SECURE
Drop (in)
44-00-4400
4
44-00-4600
6
44-00-4800
8
44-00-4900
10
44-00-4606
6
44-00-4806
8
44-00-4906
10
2" ball: tongue weight rating 1,000 lb tow rating 8,000 lb
2 5/16" ball: tongue weight rating 1,000 lb tow rating 10,000 lb
Drop (in)
SECURE HD
44-00-4625
6
44-00-4825
8
44-00-4925
10
2" ball: tongue weight rating 1,800 lb tow rating 12,000 lb
2 5/16" ball: tongue weight rating 1,800 lb tow rating 18,000 lb
SECURE
SECURE hd
1.
Drop bar lock cylinder and cover
2. Drop bar
3. Integrated locking pin(s)
4. Height adjustment holes
5. Key safety locater tab
6. Key code
7. Ball holder lock cylinder and cover
8. Ball holder
9. Dual hitch ball
Rise (in)
Shank (in)
5
2
7
2
9
2
11
2
6
2 1/2
8
2 1/2
10
2 1/2
Rise (in)
Shank (in)
6
2 1/2
8
2 1/2
10
2 1/2
Advertisement
Related Manuals for Dexter Laundry Fastway FLASH SECURE
Summary of Contents for Dexter Laundry Fastway FLASH SECURE
- Page 1 SECURE SECURE hd Drop bar lock cylinder and cover 2. Drop bar 3. Integrated locking pin(s) 4. Height adjustment holes 5. Key safety locater tab 6. Key code 7. Ball holder lock cylinder and cover 8. Ball holder 9. Dual hitch ball Model 44-00-4825 shown Thank you for purchasing the Fastway®...
- Page 2 • Read, understand, and follow all safety warnings, setup, use, ÁWarning and maintenance instructions of your trailer, tow vehicle, and Failure to follow all safety warnings may result in hitching equipment before installing your FLASH ball mount severe injury or death. or towing your trailer.
- Page 3 6. To unlock, insert the key fully into the lock and turn it first. The difference between these is the distance the ball clockwise a ½ turn. mount should be adjusted upward to compensate for the drop caused by the trailer’s tongue weight. Each SECURE or SECURE HD has a specific key code.
- Page 4 This warranty does not include labor charges nor does it Limited 1 Year Warranty include transportation charges for returning the product to the consumer. To the extent allowed by law, Fastway Trailer Products shall not be liable for any incidental, consequential, Do not return this product to the retailer.
