7
6

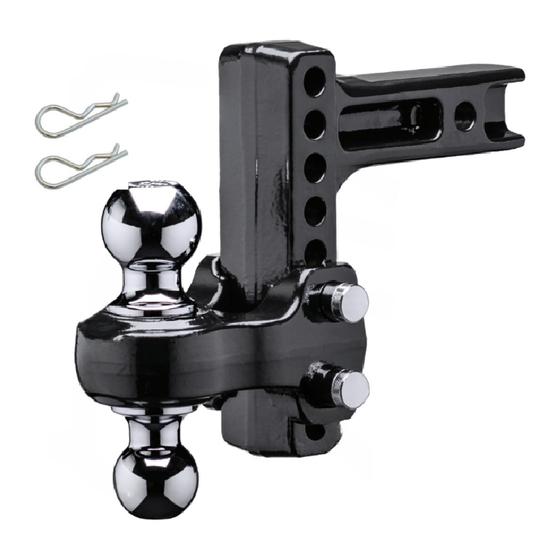

Model 49-00-5600 shown
Thank you for purchasing the Fastway® FLASH™
STEEL or STEEL HD ball mount. We are happy to
welcome you to our towing family. Read these
instructions thoroughly to become familiar with
proper set up and maintenance procedures. This will
help ensure maximum performance, and years of
service.
Keep these instructions for future reference or
access them online at fastwaytrailer.com/manuals.
Fastway Trailer Products • A Dexter Company
353 South 1100 West Provo UT 84601 • fastwaytrailer.com • 877-523-9103
steel
steel hd
1
2
3
4
1.
2. Height adjustment holes
3. Optional locking pin set
4. Height adjustment pins
5. Ball holder
5
6. Dual hitch balls
7.
STEEL
Drop
49-00-5600
6"
49-00-5900
10"
2" Ball 1,200 lb max tongue wt. 8,000 lb max trailer wt.
2 5/16" Ball 1,200 lb max tongue wt. 12,000 lb max
trailer wt.
STEEL HD
Drop
49-00-5625
6"
49-00-5925
10"
2" Ball 2,000 lb max tongue wt. 12,000 lb max trailer wt.
2 5/16" Ball 2,000 lb max tongue wt. 20,000 lb max
trailer wt.
Optional locking hitch pin
sold separately:
2" 86-00-3050
2 1/2" 86-00-3160
Drop bar
Hairpin clips
Rise
Shank
6"
2"
10"
2"
Rise
Shank
5"
2 1/2"
9"
2 1/2"
Advertisement
Related Manuals for Dexter Laundry Fastway FLASH Steel
Summary of Contents for Dexter Laundry Fastway FLASH Steel
- Page 1 steel steel hd Optional locking hitch pin sold separately: 2” 86-00-3050 2 1/2” 86-00-3160 Drop bar 2. Height adjustment holes 3. Optional locking pin set 4. Height adjustment pins 5. Ball holder 6. Dual hitch balls Hairpin clips Model 49-00-5600 shown Thank you for purchasing the Fastway®...
- Page 2 ÁWarnings Setting Up Failure to follow all safety warnings may result in severe injury or death. 1. Park the trailer on a flat surface and chock the tires. • Always load the trailer correctly. Follow trailer and tow 2. Measure from the ground to the frame at both the front and vehicle manufacturer’s recommendations for placement and rear of the trailer.
- Page 3 Fastway Trailer Products warrants the FLASH STEEL and Stow-Away Feature FLASH STEEL HD ball mount, excluding chrome and corrosion, against latent defects in materials and workmanship The STEEL ball mount can rotate under the truck bumper under normal use and service, to the original owner for a period when not in use, protecting your shins and avoiding impact with of 1 year from the first date of purchase at retail up to the anything when in reverse.
- Page 4 Great products make towing faster and easier. Get more info at fastwaytrailer.com. Save time and effort by extending your trailer jack by six inches, eliminating 48 cranks in each direction. Virtually eliminates unwanted wheel movement providing the most stability for your trailer. Protect your fingers from loose, sharp wire, and provide a safer and more effective connection to...
