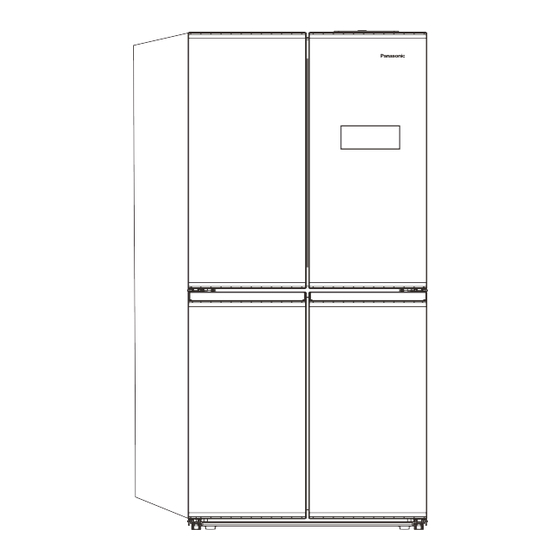

FROST-FREE REFRIGERATOR-FREEZER
INSTRUCTION MANUAL
Model No.: NR-XC541CUHA
Dear users, this manual contains the product's basic knowledge, how to use it, fault
diagnosis and basic troubleshooting methods. In order to better understand and
use this product, please take good care of this manual and read it carefully.
1
Advertisement
Related Manuals for Panasonic NR-XC541CUHA
Summary of Contents for Panasonic NR-XC541CUHA
- Page 1 FROST-FREE REFRIGERATOR-FREEZER INSTRUCTION MANUAL Model No.: NR-XC541CUHA Dear users, this manual contains the product's basic knowledge, how to use it, fault diagnosis and basic troubleshooting methods. In order to better understand and use this product, please take good care of this manual and read it carefully.
- Page 2 Contents SAFETY ................................3 Product Features ............................5 III. Preparations for use ............................6 Functions .................................7 Instructions for food storage ........................9 Other considerations for operation ......................10 VII. Maintenance and cleaning ..........................10 Troubleshooting ............................11 VIII. Certifications ..............................12 Safe recovery instructions ......................... 12...
- Page 3 SAFETY WARNING! t is hazardous for anyone other than authorized service personnel to carry out servicing or repairs which involves the removal of covers. To avoid the risk of an electric shock do not attempt to repair this appliance yoursel WARNING! isk of fire / flammable materials.
- Page 4 of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. WARNING: – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Page 5 Due to technological innovations, the product descriptions in this manual may not be completely consistent with your refrigerator. Detailed information is in accordance with the final product. Specifications： Description Refrigerator-Freezer Model NR-XC541CUHA Annual energy consumption (AEC) 330 kWh/year Freezing capacity 10kg/24h Climate class...
- Page 6 Rated current 1.5AMPERES Defrosting power 23 0 W Refrigerant charge R600a/80g Rated storage volume 503L Volume of fresh food 317L Volume of freezer 186L Foaming Agent CYCLOPENTANE Classification of protection against electric shock Class I Net Weight 87kg Preparations for use Installation location: Ventilation condition The position you select for the refrigerator installation should be well-ventilated and has less hot air.
- Page 7 Level ground Place the refrigerator on the solid and flat ground (floor) to keep it stable, or else, it will give rise to vibration and noise. When the refrigerator is placed on such flooring materials as carpet, straw mat, polyvinyl chloride, the solid backing plates should be applied underneath the refrigerator, to prevent color change due to heat dissipation.
- Page 8 Vegetables → Fruit → Chill → Vegetables. When the fridge temperature is set to be ‘OF’, the FLEXI ZONE mode gets disabled. Note: It is invalid to press the "FLEXI ZONE” key when the fridge temperature is set at the ‘OF’ mode. 1.2 ECO 1）...
- Page 9 When the Child Lock function is enabled, the temperature and functions will not operate. 1）In case of no key operation within 15 seconds, the Child Lock function will be enabled automatically. 2）Enabling/Exiting the Child Lock function manually The Child Lock function can be enabled/disabled when you press and hold down the OK (3s to Unlock) key for 3s. 1.7 Door open alarm If the fridge door is open for more than 3 minutes, an alarm will continuously sound, which can be stopped when any key is pressed, but will be restored after 3 minutes if the door remains open.
- Page 10 shelf from being crushed. When storing the foods, keep a distance away from the inner wall; and do not place the water-rich foods too close to the fridge rear wall, they may get frozen on the inner wall. Categorized storage of foods： Foods should be stored by category, with the foods you eat every day placed in front of the shelf, so that the door open duration can be shortened and food spoilage due to expiration can be avoided.
- Page 11 Carefully wipe dry the door gasket, clean the groove using damp cloth. After the cleaning, fix the four corners of the door gasket first, and then embed it segment by segment into the door groove. Interruption of power supply or failure of the refrigerating system •Take care of frozen foods in the event of an extended non-running of the refrigerating appliance (such as interruption of power supply or failure of the refrigerating system).
- Page 12 •Temperature setting in too high? Peculiar smell •Any spoiled food? •Throw away spoiled food. refrigerator •Do you need to clean refrigerator? •Clean the refrigerator. •Have you packed food of strong •Seal food of strong odours. odours? No key response •Check whether the Child Lock •Press &...
- Page 13 This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
